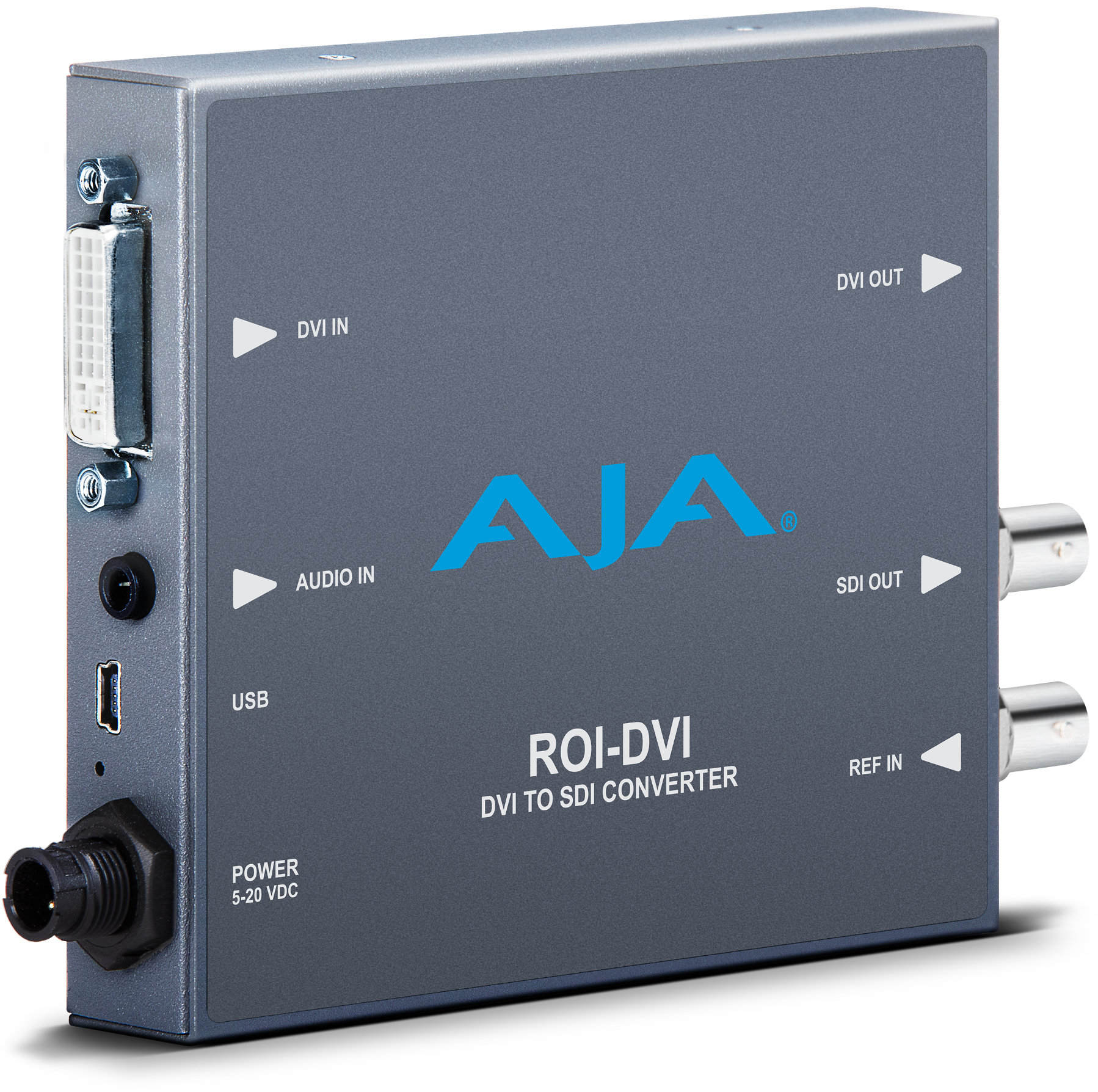

AJA Video Systems Inc ROI-DVI
DVI/HDMI to SDI Converter with ROI Scaling

OUR PART #:  ROI-DVI

Portable and affordable, the AJA ROI-DVI Mini-Converter delivers remarkably high quality conversion of computer HDMI and DVI outputs to baseband video over SDI.
Learn More
Our Price: $995.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc ROI-DVI
Qty:
In Stock

Similar Products

Portable and affordable, the AJA ROI-DVI Mini-Converter delivers remarkably high quality conversion of computer HDMI and DVI outputs to baseband video over SDI. With incredible image scaling as well as aspect and frame rate conversion as well as extensive audio functionality, ROI-DVI fulfills the growing need for proper integration of computer signals into the video world with no sacrificing of budget or space.

Region of Interest - This feature lets you extract only the portion of the computer screen you want, eliminating extra interface clutter and menu bars. Interfacing a ROI Mini-Converter via USB to a computer running the free Mini-Config application, gives you interactive Region of Interest selection from the incoming computer signal with full control over the scaling of the selected region on to the output resolution using AJA's high quality scaling algorithms, offering you the cleanest picture quality possible.

Conversion - On-screen controls in the Mini-Config software let you take full control of aspect ratio and frame rate conversion, showing you exactly how your source and output will appear, and what formats are coming in and going out, and you can you quickly choose the proper output for any situation via simple menu controls.

Connectivity - ROI can be placed in-line utilizing its direct loop-through, which allows you an external monitor connection while extracting to SDI. The reference input ensures the ROI's SDI output signal SDI is locked for use throughout a production or facility.

Audio - ROI accepts embedded 8-channel audio from an HDMI input or 2-channel audio from the 3.5mm analog audio input. Audio source and routing is selectable in the Mini-Config software and embedded in the SDI output, which allows embedding of the computer audio within the SDI signal for easy, synchronized routing.

Universal Power Supply - Includes international plug connections for use around the world.

Compact and Portable - Small enough to fit behind a monitor, in the back of a rack or directly on a camera rig, it also features a locking power connector that prevents accidental loosening or disconnecting, and an optional P-TAP power cable (sold separately) provides for remote location battery power.

AJA Quality - Guaranteed - ROI is covered by a 5-year warranty and AJA's advanced replacement policy. If replacement is necessary, AJA will ship a new unit immediately with no need to send the original unit back first. This ensures you are up and running again as soon as possible.

AJA ROI-DVI Mini-Converter Features:

  • DVI to SDI conversion
  • Region of Interest scaling
  • DVI loop through
  • Audio embedding
  • Aspect ratio conversion
  • Genlock input
  • Configure via USB port and supplied Mini-Config software
  • Uses 5-18VDC power (universal power supply included)
  • 5-year warranty

AJA ROI-DVI Mini-Converter Technical Specifications:

  • Video Input: 1x DVI-D input connector
  • Input Formats:
    • Computer Signals:
      • WUXGA (1920x1200) 60 Hz max
      • VGA (640x480) minimum
        Note: Frame rates limited by the 165Mhz max rate of the DVI Rx
    • Video Signals:
      • 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • 1080i 50, 59.94
      • 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • 525i, 625i
      • 480p, 576p (DSLR cameras)
  • Input Data Range Control:
    • 1-255 (default – 8 bit nomenclature)
    • 16-235
  • Reference Input:
    • Permissible reference video inputs include:
      • 525 Color Black
      • 625 Color Black
      • 720p Tri-level Sync
      • 1080i Tri-level Sync
      • 1080p Tri-level Sync
  • Video Outputs:
    • DVI: 1 x DVI-D loop through connector
    • SDI: 3G-SDI, SMPTE-259/292/296/424/425, 1 x BNC
  • Output Formats:
    • 1080p 50, 59.94, 60 - SMPTE 425-1 Level A Mapping structure 1 (1920X1080 4:2:2 10-bit YCbCr)
    • 1080p 23.98, 24, 25, 29.97, 30
    • 1080i 25, 29.97, 30
    • 720p 50, 59.94, 60
    • 625i 25
    • 525i 29.97
  • HDCP:
    • ROI does not encode the HDMI output with HDCP encryption
    • ROI does not accept HDCP input.
  • Audio Inputs:
    • 1 x Analog 3.5mm TRS, 2-channel
    • HDMI embedded audio, 24-bit, 8-channel
  • Audio Output: SDI embedded audio, 24-bit, 2-channel or 8-channel
  • User Controls: USB port used with supplied cable and MiniConfig software application to configure device via Mac or Windows
  • Power:
    • Uses AJA Power Supply model DWP-U-R1 (included with purchase)
    • 100-240V, 50/60Hz Universal Input
    • +5 to 18V DC regulated, 8 watts max
  • Dimensions: 5.765" x 4.020" x 0.9" (146.431 x 102.108 x 22.86mm)
  • Environment:
    • Operating Temperature: 32 to 104° F (0 to 40° C)
    • Operating Relative Humidity: 10-90% non-condensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
    • Safe Storage Temperature (Power OFF): -40 to 140° F (-40 to 60° C)
