Roland System-500 572 Module
Phase Shifter + Delay + LFO Module

OUR PART #:  SYS-572

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time.
Learn More
Our Price: $369.99
Write the first review.
Roland System-500 572 Module
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. Built in the USA and assembled in Japan, the SYSTEM-500 is made to exacting standards with top-quality components and solid controls. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

Roland System-500 572 Modular Phase Shifer/Delay/LFO Includes:

  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
  • Eurorack installation screws (4 pcs)
  • Eurorack power cable

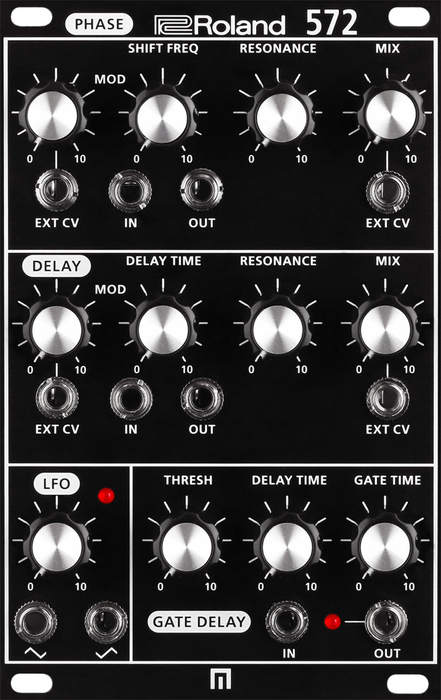

Roland System-500 572 Modular Phase Shifer/Delay/LFO Specifications:

  • Controllers:
    • Phase Shifter Section:
      • Modulation knob
      • Shift Frequency knob
      • Resonance knob
      • Mix knob
    • Delay Section:
      • Modulation Knob
      • Time knob
      • Resonance knob
      • Mix knob
    • LFO Section: Frequency Knob
    • Gate Delay Section:
      • Threshold knob
      • Delay Time knob
      • Gate Time knob
  • Indicator:
    • LFO Indicator
    • Gate Delay Out Indicator
  • Connectors:
    • Phase Shifter Section:
      • Modulation External CV jack: Miniature phone type
      • In jack: Miniature phone type
      • Out jack: Miniature phone type
      • Mix External CV jack: Miniature phone type
    • Delay Section:
      • Modulation External CV jack: Miniature phone type
      • In jack: Miniature phone type
      • Out jack: Miniature phone type
      • Mix External CV jack: Miniature phone type
    • LFO Section:
      • Out jack: Miniature phone type
      • Inverted Out jack: Miniature phone type
    • Gate Delay Section:
      • In jack: Miniature phone type
      • Out jack: Miniature phone type
  • Power Supply: Eurorack power
  • Current draw:
    • +12 V (110 mA)
    • -12 V  (90 mA)
  • Dimensions (WxDxH): 3 3/16" x 2 5/16" x 5 1/8" (81 x 58 x 129 mm)
  • Weight: 8oz (213g)
