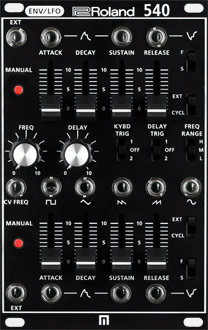

Roland System-500 540 Dual EG and LFO Module 16HP Dual EG and LFO EuroRack Module

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. Built in the USA and assembled in Japan, the SYSTEM-500 is made to exacting standards with top-quality components and solid controls. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

Roland System-500 540 Modular 2ENV-LFO Specifications:

• Controllers:
  • Attack: Slider
  • Decay: Slider
  • Sustain: Slider
  • Release: Slider
  • Manual: Switch
  • Fast/Slow: Switch
  • External/Cycle: Switch
  • Keyboard Trigger: Switch
  • Delay Trigger: Switch
  • Frequency Range: Switch
  • Frequency: Knob
  • Delay: Lnob
• Connectors:
  • External Jack: Miniature phone type
  • Envelope: 1 jack: Miniature phone type
  • Envelope: 2 jack: Miniature phone type
  • Inverted Envelope Jack: Miniature phone type
  • CV Frequency Jack: Miniature phone type
  • Square Wave Jack: Miniature phone type
  • Triangle Wave Jack: Miniature phone type
  • Saw Wave Jack: Miniature phone type
  • Inverted Saw Wave Jack: Miniature phone type
  • Sine Wave Jack: Miniature phone type
• Power Supply: Eurorack power
• Current draw:
  • 85 mA (+12 V)
  • 50 mA (-12 V)
• Accessories:
  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
  • Eurorack installation screws (4 pcs)
  • Eurorack power cable
• Width: 3 3/16" (81mm)
  • 16 HP
• Depth: 2 5/16" (58mm)
• Height: 5 1/8" (129mm)
• Weight: 8oz (202g)
