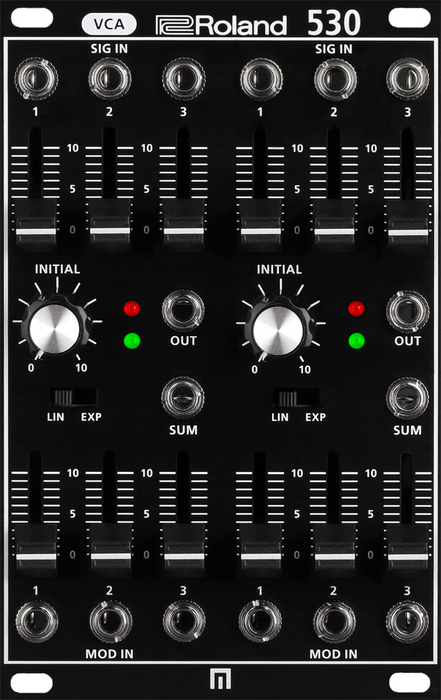

Roland System-500 530
VCA Module

OUR PART #:  SYS-530

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time.
Learn More
Our Price: $299.99
Write the first review.
Roland System-500 530
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. Built in the USA and assembled in Japan, the SYSTEM-500 is made to exacting standards with top-quality components and solid controls. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

Roland System-500 530 VCA Module Includes:

  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
  • Eurorack installation screws (4 pcs)
  • Eurorack power cable

Roland System-500 530 VCA Module Specifications:

  • Controllers:
    • Signal In: 1 slider
    • Signal In: 2 slider
    • Signal In: 3 slider
    • Modulation In: 1 slider
    • Modulation In: 2 slider
    • Modulation In: 3 slider
    • Linear/Exponential: switch
    • Initial: Knob
  • Indicator:
    • Load Indicator
    • Overload Indicator
  • Connectors:
    • Signal In: 1 jack: Miniature phone type
    • Signal In: 2 jack: Miniature phone type
    • Signal In: 3 jack: Miniature phone type
    • Out: jack: Miniature phone type
    • Sum: jack: Miniature phone type
    • Modulation In: 1 jack: Miniature phone type
    • Modulation In: 2 jack: Miniature phone type
    • Modulation In: 3 jack: Miniature phone type
  • Power Supply: Eurorack power
  • Current draw:
    • 50 mA (+12 V)
    • 35 mA (-12 V)
  • Dimensions (WxDxH): 3 3/16" x 2 5/16" x 5 1/8" (81 x 58 x 129 mm)
  • Weight: 7oz (194g)
