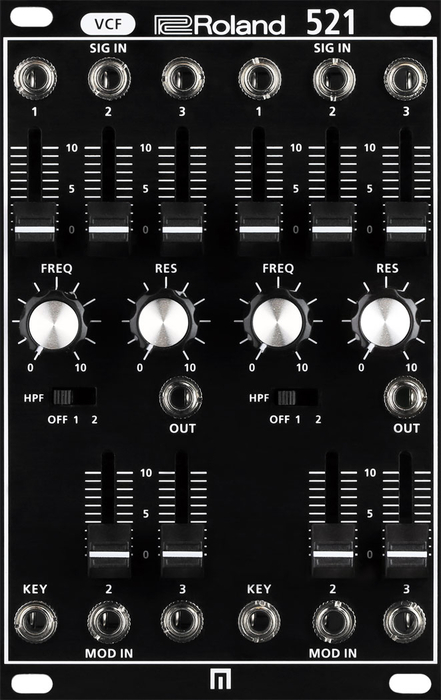

Roland System-500 521 Dual VCF Module 16HP Dual VCF EuroRack Module

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. Built in the USA and assembled in Japan, the SYSTEM-500 is made to exacting standards with top-quality components and solid controls. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

Roland System-500 521 Modular VCF Includes:

• Owner's Manual
• Leaflet "USING THE UNIT SAFELY"
• Eurorack installation screws (4 pcs)
• Eurorack power cable

Roland System-500 521 Modular VCF Specifications:

• Controllers:
  • Signal In: 1 slider
  • Signal In: 2 slider
  • Signal In: 3 slider
  • Modulation In: 2 slider
  • Modulation In: 3 slider
  • HPF: switch
  • Frequency: Knob
  • Resonance: Knob
• Connectors:
  • Signal In: 1 jack: Miniature phone type
  • Signal In: 2 jack: Miniature phone type
  • Signal In: 3 jack: Miniature phone type
  • Out Jack: Miniature phone type
  • Key In Jack: Miniature phone type
  • Modulatoin In: 2 jack: Miniature phone type
  • Modulation In: 3 jack: Miniature phone type
• Power Supply: Eurorack power
• Current draw:
  • 40 mA (+12 V)
  • 40 mA (-12 V)
• Dimensions (WxDxH): 3 3/16" x 2 5/16" x 51/8" (81 x 58 x 129 mm)
• Weight: 8oz (203 g)
