Pathway Connectivity P1004 Demultiplexer
DMX-to-Analog

OUR PART #  P1004

Our Price: $481.57
List Price: $546.00
You save 12%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

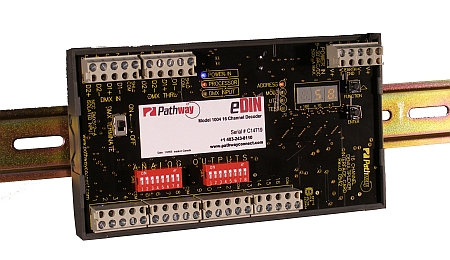

The Pathway eDIN Demultiplexer converts DMX512 signals to 0-10VDC, or other common DC ranges, or to current-sinking control of Mark 7-type fluorescent ballasts, solid state relays or fully isolated LED fixture drivers requiring 0-10V dimming control

As well as selectable DC output, the eDIN Demultiplexer provides simple, elegant DMX control over dimmable LED drivers.  It also can provide single DMX-channel control over both the driver and the mains power breaker in Mark 7-type dimmable fluorescent ballast systems.

Starting with the Rev 4 board, sinking control down to zero volts is possible, along with a new panic contact closure input.  The Rev 5 board is now factory -configured for out-of-the-box sinking control of LED systems.  (Rev numbers appear on the paper serial number label, and are different from the circuit board revisions.

Pathway Connectivity 1004 Demultiplexer Features:

  • Contact Closure "panic" input drives all outputs to full
  • 16 analog outputs
  • Selectable 0-10, 0-15, 0-2.5, & 0-5V output modes, or fully user-customized min/max
  • Selectable current sink output
  • 10mA current source per channel
  • 30mA current sink per channel (Rev 5 and above)
  • User-set DMX start address for easy daisy-chaining of modules
  • RDM discoverable and configurable
  • LED display and pushbuttons for configuration
  • 2500V DMX input signal opto isolation
  • 250V DMX fault protection
  • End-of-line termination switch
  • Status LEDs for power, DMX input
  • Pluggable screw terminals for all connections
  • DMX pass-thru connector
  • Snap-on DIN rail housing
  • DIN rail mounting section included

Pathway Connectivity 1004 Demultiplexer Specifications:

  • Output Rating:
    • 10 VDC nominal, 16 VDC maximum
    • 10mA current source per channel
    • Rev 5 boards and above:  30mA current sink per channel
    • (For earlier Rev numbers, please check with the factory.)
  • Power Supply:
    • 9-30V  DC, 5W supply required.
    • Use eDIN 1001 power supply or equal
  • Isolation:
    • 2500V opto isolation
    • 250V fault protection
  • Size: 3.5” x  6” x 1.25” (90mm x  152mm x 30mm )
  • Mounting: 35mm x 7.5mm DIN rail (included)

Pathway Connectivity P1004 Demultiplexer
DMX-to-Analog

OUR PART #  P1004

Product Information:

The Pathway eDIN Demultiplexer converts DMX512 signals to 0-10VDC, or other common DC ranges, or to current-sinking control of Mark 7-type fluorescent ballasts, solid state relays or fully isolated LED fixture drivers requiring 0-10V dimming control

As well as selectable DC output, the eDIN Demultiplexer provides simple, elegant DMX control over dimmable LED drivers.  It also can provide single DMX-channel control over both the driver and the mains power breaker in Mark 7-type dimmable fluorescent ballast systems.

Starting with the Rev 4 board, sinking control down to zero volts is possible, along with a new panic contact closure input.  The Rev 5 board is now factory -configured for out-of-the-box sinking control of LED systems.  (Rev numbers appear on the paper serial number label, and are different from the circuit board revisions.

Pathway Connectivity 1004 Demultiplexer Features:

  • Contact Closure "panic" input drives all outputs to full
  • 16 analog outputs
  • Selectable 0-10, 0-15, 0-2.5, & 0-5V output modes, or fully user-customized min/max
  • Selectable current sink output
  • 10mA current source per channel
  • 30mA current sink per channel (Rev 5 and above)
  • User-set DMX start address for easy daisy-chaining of modules
  • RDM discoverable and configurable
  • LED display and pushbuttons for configuration
  • 2500V DMX input signal opto isolation
  • 250V DMX fault protection
  • End-of-line termination switch
  • Status LEDs for power, DMX input
  • Pluggable screw terminals for all connections
  • DMX pass-thru connector
  • Snap-on DIN rail housing
  • DIN rail mounting section included

Pathway Connectivity 1004 Demultiplexer Specifications:

  • Output Rating:
    • 10 VDC nominal, 16 VDC maximum
    • 10mA current source per channel
    • Rev 5 boards and above:  30mA current sink per channel
    • (For earlier Rev numbers, please check with the factory.)
  • Power Supply:
    • 9-30V  DC, 5W supply required.
    • Use eDIN 1001 power supply or equal
  • Isolation:
    • 2500V opto isolation
    • 250V fault protection
  • Size: 3.5” x  6” x 1.25” (90mm x  152mm x 30mm )
  • Mounting: 35mm x 7.5mm DIN rail (included)
