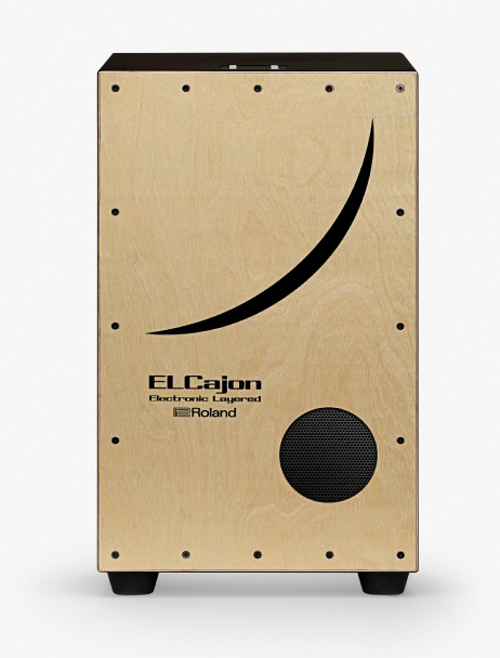

Roland ELCajon EC-10
Electronic Layered Cajon


Our Price: $399.00
List Price: $469.00
You save 15%! (Low Price Guarantee)
In Stock

Unique and versatile, the ELCajon EC-10 allows cajon players to easily enhance their music with layered electronic sounds. To start, the EC-10 is an authentic acoustic cajon that sounds great on its own. What’s more, it has Roland’s renowned electronic percussion technology built in, letting you blend a range of complementary sounds with the cajon voice, from traditional percussion like tambourine and shaker to acoustic snare, electronic drums, sound effects, and more. Completely self-contained with battery power and onboard amplification, the ELCajon EC-10 puts the dynamic world of hybrid percussion in the hands of every cajon enthusiast.

Roland ELCajon EC-10 Features:

  • Unique hybrid instrument combining an authentic acoustic cajon with Roland’s electronic percussion technology
  • Standard cajon size (50 x 30 x 30 cm), with quality playing surface made of sapele wood
  • 30 built-in electronic kits for layering with acoustic cajon sounds
  • Each kit includes two independent sounds that can be triggered from the head and edge of the playing surface
  • Versatile selection of acoustic and electronic percussion sounds to support a wide range of music styles
  • Also includes studio-optimized cajon sounds to enhance the instrument’s acoustic sound, providing additional depth and punch while performing
  • Intuitive panel controls for kit selection, level control, head/edge balance, and more
  • Integrated amplifier and coaxial speaker
  • Up to 12 hours of continuous playing time with six AA-size batteries

Roland ELCajon EC-10 Specifications:

  • Playing Plate: Sapele Plywood
  • Resonance Box: MDF (Medium Density Fiberboard)
  • Speaker: Coaxial 6.5" (16cm)
  • Rated Power Output: 3 W
  • Nominal Input Level: MIX IN: -10 dBu
  • Layered Sound Kit Variation: 30 (Cajon: 10,Percussion: 10, SFX: 10)
  • Layered Sound Contents: 2 (Head, Edge)
  • Controls:
    • Rear Panel:
      • Power switch
      • Volume knob
      • Trigger Balance knob
    • Top Panel:
      • Sound Group Select button x2
      • Kit Number Select button x2
  • Indicators:
    • Sound Group
    • Kit Number
  • Connectors:
    • Electronic Sound Out jack: 1/4-inch phone type
    • Mix In jack: Stereo miniature phone type
    • AC Adaptor jack
  • Power Supply:
    • AC adaptor (DC 5.7 V)
    • Alkaline battery (AA, LR6) x 6
  • Current Draw: 250 mA
  • Expected battery life under continuous use:
    • Normal use: Approx. 12 hours
    • Maximum load use: Approx. 6 hours
    • * These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
  • Accessories:
    • Owner's manual
    • Leaflet "Using the Unit Safely"
    • AC adaptor
  • Size and Weight:
    • Width: 11 5/8" (295 mm)
    • Depth: 11 3/4" (298 mm)
    • Height: 19 1/2" (495 mm)
    • Weight: 8 lbs 14 oz (6.0 kg)
