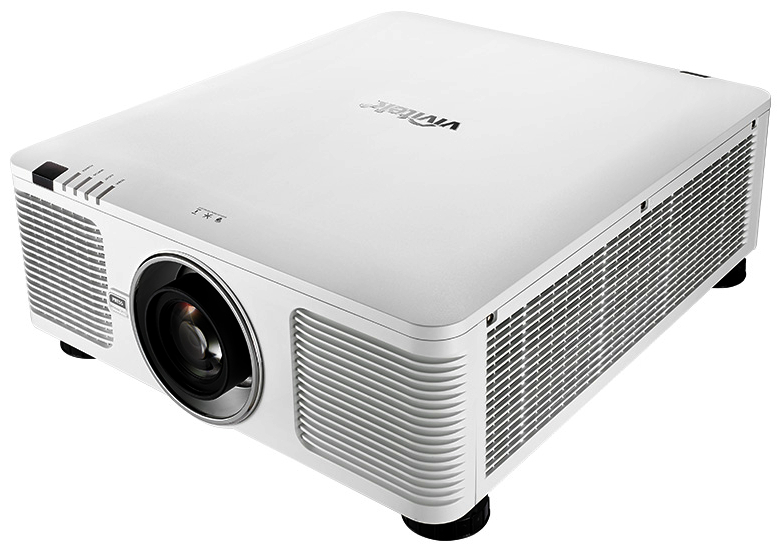

Vivitek DU8090Z
8000 Lumens WUXGA Laser Projector, Body Only

OUR PART #  DU8090Z

Call for price! Not available online.
List Price: $15,999.00


Recommended Accessories

With exeptionally vivid colors and high 8,000 ANSI lumens brightness, the Vivitek DU8090Z Laser Projector takes projection to the next level. Designed lamp-free, it offers stable, high-quality projection for up to 20,000 hours, delivering low cost of ownership, with minimal maintenance. The full featured DU8090Z, together with complete lens set gives terrific performance and value in laser projection - the next generation of advanced projection technology, providing the most immersive big-screen digital projection experience available. The DU8090Z also includes versatile, full, and needed connectivity for large venues and many other environments, including: HDMI input, BNC for YPbPr/RGBHV, VGA input for PC and Laptop, IR input, Rs232c and 12V Trigger for screen automation., SDI I/O and more.

Note: Lens(es) sold separately.

Vivitek DU8090Z Laser Projector Includes:

  • DU8090Z Laser Projector Unit
  • Replacement Lamp
  • AC Power Cord
  • Remote
  • Lens Cap
  • Anti-Theft Lens Screw
  • Documentation Kit

Vivitek DU8090Z Laser Projector Features:

  • Laser phosphor projection engine incorporates a laser design that's long lasting (approx. 20,000 hrs) and environmentally friendly
  • 8,000 ANSI lumens with a dynamic 10,000:1 contrast ratio provide amazing image quality that's stable over time
  • Onboard ACS (auto color sensor) for color and brightness consistency
  • Onboard MPS (multi projector system) hardware for edge blending, flexible geometry and warping functionality
  • Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and projector position flexibility together with memory system
  • Picture-in-Picture (PIP) to simultaneously project images/videos from two different sources
  • Full suite of display connectivity inputs and outputs including: HDMI v1.4a, DVI-D, Component (5 BNC),VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT™ (content over CAT5e/6 cable)
  • Full 3D compatibility with DLP® Link™ and HDMI 1.4 interface
  • Flexible mounting positioning - 360 degrees in any axis for ease of installation
  • Network connectivity for remote projector management - control and status. Ready for integration and system administration via RJ45
  • (8) interchangeable lens options for flexible installation and optimized brightness (lens(es) sold separately)
  • Sealed optical engine and filter-less design improves performance with minimal service maintenance
  • Choose the color to best fit your environment, with black and white cabinet colors available
  • Warranted for 24/7 intensive-use operation

Vivitek DU8090Z Laser Projector Specifications:

  • Display Type: Single Chip 0.67" DLP® Technology by TI
  • Brightness: 8,000 ANSI Lumens
  • Native Resolution: WUXGA (1920 x 1200)
  • Maximum Resolution: WUXGA (1920 x 1200) at 60 Hz (Reduced Blanking)
  • Contrast Ratio: 10,000:1
  • Light Engine (approx.) Life and Type: Up to 20,000 Hours, Laser Phosphor Light Engine
  • Image Size (Diagonal)*: 40" - 500" (1 - 12.7 m)
  • Aspect Ratio: 16:10
  • Keystone Correction: Horizontal ± 60°, Vertical ± 40°
  • Horizontal Frequency: 15 - 108 Hz
  • Edge Blending: Yes (Built-in)
  • Lens Shift Range**: Vertical: 0-50%, Horizontal: ±10%
  • Computer Compatibility: VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA at 60 Hz, Max
  • Vertical Scan Rate: 50 - 85 Hz
  • Offset: Motorized Lens Shift, Horizontal and Vertical
  • Video Compatibility: SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p) NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L), WUXGA at 60 Hz Max
  • I/O Connection Ports: HDMI v1.4a (x2) DVI-D, Component (5 BNC), VGA-In, 3G-SDI-In/Out, RS-232, VGA-Out, 3D-Sync In/Out, 12v Trigger, Wired Remote, HDBaseT™/LAN (Shared)
  • Projection Method: Flexible 360°; Image Correction for Table Top, Ceiling Mount
  • Security Solutions: Kensington® Security Slot, Security Bar, Keypad Lock, Anti-Theft Lens Screw
  • Dimensions: 19.7" W x 22.8" D x 8.1" H (500 x 580 x 205mm)
  • Weight: 61.7 lbs (28 kg)
  • Cabinet Colors: Black, White
  • Power Supply: AC 100-240 V, 50/60 Hz
  • Noise Level: 40 dB (Normal Mode)
  • Power Consumption: Full Power: 990 Watts, Standby Power < 6W
  • Optional Accessories: Interchangeable Lens Options (x8), NovoPRO (all sold separately)

*Note: Standard Lens
**Note: Lens shift compatibility with all lenses except D88-WF18501 Wide Fixed Lens (3797745100-SVK) and D88-UST01 Ultra-Short Throw Lens (3797855700-SVK). Screen height or screen width/2 x % max.
