TOA HX-7B
Variable Dispersion Speaker, 750 W, 8 Ohms, Black

OUR PART #:  HX-7B

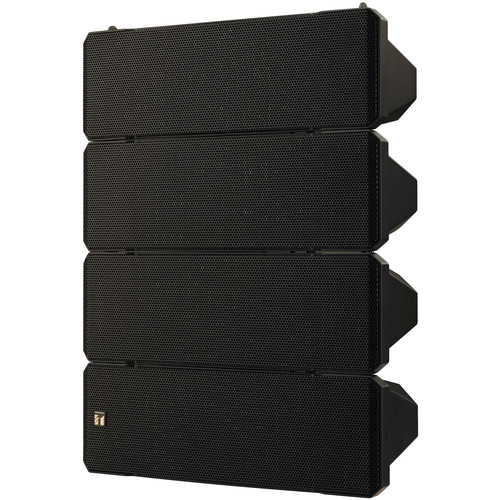

The TOA HX-7B is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in a vertical directivity.
Learn More
Our Price: $1,438.00
List Price: $1,778.00
You save 19%!
Write the first review.
TOA HX-7B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The TOA HX-7B is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in a vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. The HX-7B is designed for indoor use.

TOA HX-7B Features:

  • 4 cellconfiguration each incorporating:
    • (2) 5" Low-frequency drivers
    • (1) Center-mounted, waveguide-loaded, 1"-exit compression driver
  • Flexible vertical angle adjustment between 0° and 45° (60° with secondHX-7 and optional adapter).
  • Power handling: 750W Continuous Program @ 8 Ohms.
  • 100dB sensitivity (1W @ 1m).
  • Optional hardware for stand, wall, ceiling & flown installations.
  • Black or White and weather-proof (WP) versions available.

TOA HX-7B specifications:

  • Enclosure: Bass-reflex type
  • Power Handling Capacity:
    • Continuous pink noise: 250 W
    • Continuous program: 750 W
  • Rated Impedance: 8 Ohms
  • Sensitivity: 100 dB
  • Frequency: 75 Hz - 20 kHz
  • Crossover Frequency: 1.7 kHz
  • Directivity Angle:
    • Horizontal: 100 degrees
    • Vertical: Depending on directivity angle mode
  • Speaker Component:
    • Low Frequency: 13 cm cone - type X 8
    • High Frequency: Wave front control horn with compression driver X4
  • Input Terminal: Speakon NL4MP X 2 and M4 screwterminal, distance between barriers: 9 mm
  • Finish:
    • Enclosure: polypropylene, black
    • Punch net: surface - treated steel plate, black, paint
      Hanging bracket: steel plate, t3.0, black, paint
      Dimensions: 497 (W) X 664 (H) X 274 (D) mm
      Weight: 30 kg (66.14 lbs)
