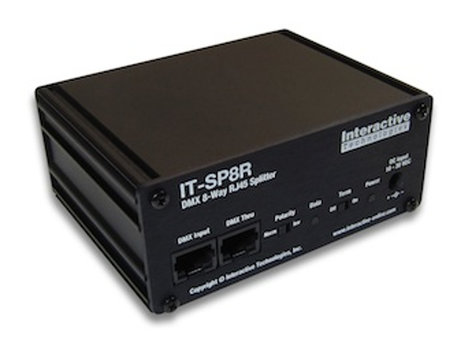

Interactive Technologies RJ45 Splitter
DMX 8 Port Splitter

OUR PART #:  IT-SP8R

The IT-SP8R is an ultra-compact 8 Port RJ45 DMX512 Splitter for use with DMX installations wired with Category 5 (CAT5) cabling.
Learn More
Our Price: $419.16
List Price: $499.00
You save 16%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Interactive Technologies RJ45 Splitter
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The IT-SP8R is an ultra-compact 8 Port RJ45 DMX512 Splitter for use with DMX installations wired with Category 5 (CAT5) cabling.

Each output port of the IT-SP8R is an independently protected DMX signal that can be run up to 1,500 feet (500 meters). Since DMX signals cannot be wired in a star network configuration without being re-created by an active splitter, use the IT-SP8R to branch DMX signals out to DMX devices in multiple locations or to extend the 1,500 foot (500m) maximum distance from the DMX source.

The IT-SP8R includes DMX Input and Pass-Thru ports with a handy line termination switch. It also includes a polarity inversion switch that allows the IT-SP8R to internally convert between DMX512 standard wiring and inverted wiring used by Color Kinetics® devices.

We proudly design, engineer and manufacture our interface products in USA.

Interactive Technologies Eight Port RJ45 Splitter Includes:

  • IT-SP8R Splitter Unit
  • Low-Profile Universal Input Switching Power Supply
  • Removable Mounting Flanges
  • Self-Adhesive Rubber Feet
  • Getting Started Documentation

Interactive Technologies Eight Port RJ45 Splitter Features:

  • RJ45 Ports for easy connection in DMX systems that use Category 5 cables
  • DMX Input and DMX Pass-Thru Ports for daisy-chaining multiple splitters
  • Eight Independently generated and protected output ports
  • Each port can drive a DMX line an additional 1,500 feet (500 meters)
  • Port protection circuitry includes Transient Voltage Suppression (TVS) and Self-Resetting Poly-Switch Fuses to prevent a fault on one port from affecting the Input or other output ports
  • Can be used in systems wired for DMX512 or Color Kinetics® devices
  • User-selectable polarity inversion for converting between DMX512 and Color Kinetics® wiring schemes
  • User-selectable input line termination switch
  • Rugged anodized extruded aluminum housing
  • Removable "slide-in" flanges for surface mounting

Interactive Technologies Eight Port RJ45 Splitter Specifications:

  • Connections:
    • Power: 2.1 mm DC Power Input Jack
    • DMX Input: RJ-45, ESTA Standard DMX over CAT5 Pinout
    • DMX Output:
      • Pass-Thru RJ-45, ESTA Standard DMX over CAT5 Pinout
      • 8x RJ-45, ESTA Standard DMX or Color Kinetics® over CAT5Pinout
  • Power Requirements:
    • Input: 6-30 VDC (12VDC Nominal)
  • Physical:
    • Width:
      • 4.29" (109 mm) without mounting flanges
      • 5.51" (140 mm) with mounting flanges
    • Length: 3.43" (87 mm)
    • Height: 1.78" (45 mm)
    • Weight: 10.6 lbs. (0.3 Kg)
  • Environmental:
    • Operating Temp: -40° to 158° F (-40° to 70° C)
    • Storage Temp: -40° to 176° F (-40° to 80°C)
    • Relative Humidity: 5% to 95% noncondensing
    • Altitude: 10,000 feet maximum
  • Warranty: Two years from the date of purchase by theoriginal owner (limited to defects in material or workmanship under normal useand service). See Limited Factory Warranty document for more details.
