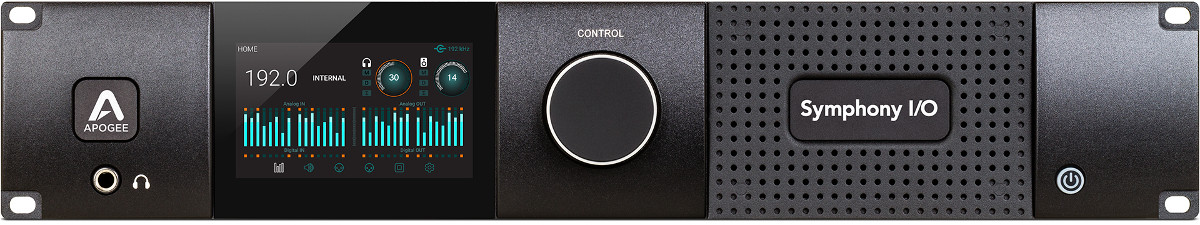

Apogee Electronics 16X16S2 MKII Module 16 Analog In And 16 Analog Out

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee’s newest flagship AD/DA conversion, modular I/O, intuitive touchscreen display and optional world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering, Symphony I/O Mk II is the ultimate music production centerpiece for any modern studio.

The new Symphony I/O Mk II comes with direct connectivity to one of three different platforms – Thunderbolt™, Pro Tools® HD or Waves SoundGrid® network.

The Symphony I/O Mk II 16X16S2 is the latest addition to the Apogee Symphony I/O line-up. It has 16 analog inputs and 16 analog outputs as well as 2 channels of SPDIF.

Symphony I/O Mk II 16X16S2 Features:

• AD/DA conversion of any Thunderbolt™ audio interface
• Choice of Thunderbolt, Pro Tools® HD (Mac/PC) or Waves SoundGrid® connectivity
• Ultra-low latency performance
• Intuitive touchscreen display and front panel control
• Designed in California, Built in the U.S.A.

Apogee Symphony I/O Mk II 16X16S2 Specifications:

• Inputs:
  • Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
  • Coax IN: Supports SPDIF on 1 RCA connector
• Outputs:
  • Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors
  • Coax OUT: Supports SPDIF on 1 RCA connector
• Connections: Thunderbolt cable (sold separately)
• Performance:
  • 44.1kHz – 192kHz
  • Latency: 1.35 ms with Logic Pro X (96 kHz / 32 buffer)
• Computer:
  • Thunderbolt-enabled Mac computer, including Mac Pro, MacBook Pro, Mac mini, iMac & MacBook Air
  • Operating System: Mac OS 10.9.5 or greater
• Control:
  • Maestro app (included in software installer) and front panel touchscreen
• Compatible Software:
  • Logic Pro X
  • Any Core Audio application on Mac
