Apogee 8X8S2
MKII Module 8 Analog I/O and 8 AES/Optcl I/O

OUR PART #:  8X8S2

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee’s newest flagship AD/DA conversion, modular I/O...
Learn More
Our Price: $2,195.00
Write the first review.
Apogee 8X8S2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee’s newest flagship AD/DA conversion, modular I/O, intuitive touchscreen display and optional world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering, Symphony I/O Mk II is the ultimate music production centerpiece for any modern studio.

The new Symphony I/O Mk II comes with direct connectivity to one of three different platforms – Thunderbolt™, Pro Tools® HD or Waves SoundGrid® network.

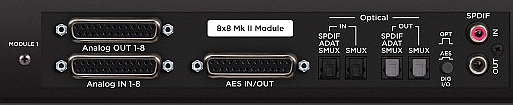

Symphony I/O Mk II 8X8S2 Features:

  • Inputs:
    • Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
    • *AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector
      (192k single wide compatible)
    • *Optical IN: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz
    • SMUX: 8 channels 88.2-96 kHz
    • S/PDIF: 2 channels, up to 96 kHz
    • Coax IN: 2 channels of S/PDIF, up to 192 kHz
  • Outputs:
    • Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
    • *AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
      (192k single wide compatible)
    • *Optical OUT: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz
    • SMUX: 8 channels 88.2-96 kHz
    • S/PDIF: 2 channels, up to 96 kHz
    • Coax OUT: 2 channels of S/PDIF, up to 192 kHz

Symphony I/O Mk II 8X8S2 Specifications:

  • Connection: Thunderbolt cable (Sold separately)
  • Performance:
    • 44.1kHz – 192kHz
    • Latency: 1.35 ms with Logic Pro X (96 kHz / 32 buffer)
  • Computer:
    • Thunderbolt-enabled Mac computer, including Mac Pro, MacBook Pro, Mac mini, iMac & MacBook Air
    • Operating System: Mac OS 10.9.5 or greater
  • Control:
    • Maestro app (included in software installer) and front panel touchscreen
  • Compatible Software:
    • Logic Pro X
    • Any Core Audio application on Mac
