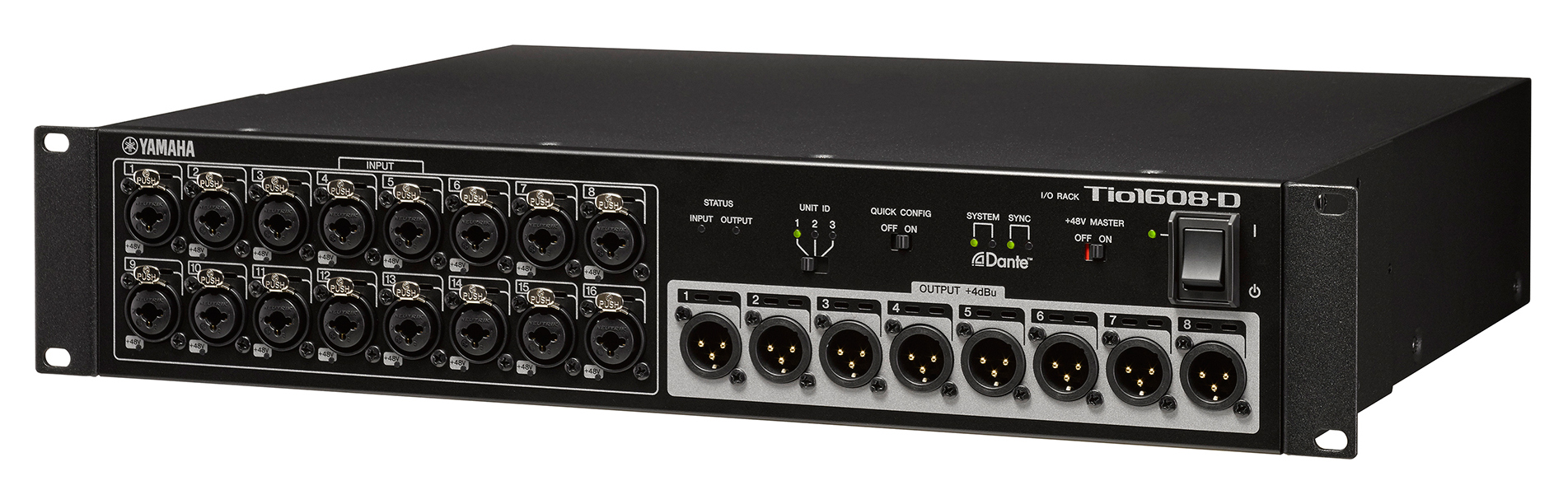

Yamaha Tio1608-D
16-input/8-output Dante Stagebox for TF Series Mixers

OUR PART #  TIO1608-D

Call for price! Not available online.


The Yamaha Tio1608-D is a Dante-equipped I/O rack with 16 microphone/line inputs and 8 line outputs and features the same recallable D-PRE™ microphone preamplifiiers as the TF series.

Digital Stagebox System with a Maximum of Three Units
Users wishing to expand on the TF's already extensive input/output capability can easily add up to 3 units with the optional NY64-D expansion card (sold separately) and Tio1608-D I/O racks. Daisy-chaining the main console offstage and Tio1608-D I/O racks on stage using lightweight CAT5e Ethernet cables allows low-latency, high-quality sound transmission without the time-consuming transport and setup of bulky analog snakes.

Dante High-Reliability Network Audio Protocol
Dante has been adopted by the leading manufacturers and professionals in the sound reinforcement industry for its low jitter, low latency, and high sampling accuracy. Using the Tio1608-D you can easily configure a high-performance Dante stagebox system with little or no IT networking knowledge. Thanks to the flexibility of the Dante network protocol, TF Series consoles can be connected to an extensive range of Dante-enabled equipment such as R Series I/O racks.

Fast and Easy QUICK CONFIG Mode
By enabling the QUICK CONFIG mode on the Tio1608-D, all the connection settings such as network settings and audio patching are set automatically making system configuration easy. After confirming QUICK CONFIG mode is activated on the TF console and Tio racks, simply set a UNIT ID for each Tio1608-D, then daisy chain the TF console and the Tio racks.

Simple and Flexible Input Selection
Once the basic configuration is completed, you can easily assign inputs to best suit your system setup. By using the ALL INPUT function, users can assign all inputs to the Tio racks, the TF console, or a Mac/Windows PC instantly. Users can also change each input to receive signal from multiple locations so that users can effectively use all inputs.

Recallable D-PRE Preamplifiers
The Tio1608-D inherits the natural, musical sensibility that Yamaha pursued in the development of the TF Series. Mechanical construction, circuit board layout, power supply, grounding, and parts selection have all been executed with meticulous attention to detail and quality, combined with exhaustive performance and listening tests at each stage of development. The Tio1608-D features the same recallable D-PRE microphone preamplifiers as the TF Series to provide a consisten, natural, musical sound throughout the entire system.

Yamaha Tio1608-D Specifications:

  • Sampling Frequency Rate - External: 44.1 kHz or 48kHz
  • Total Harmonic Distortion: Less than 0.1% +4 dBu @ 20Hz - 20 kHz into 600 Ohms, Gain = +66 dB / Less than 0.05% +4 dBU @ 20 Hz - 20 kHz into 600 Ohms, Gain =-6 dB, INPUT to OUTPUT, Fs =44.1 kHz, 48 kHz (Measured with a -18 dB/octave filter @ 80 kHz)
  • Frequency Response: +0.5, -1.5 dB 20 Hz - 20 kHz, refer to the nominal output level @ 1 kHz, INPUT to OUTPUT, Fs =44.1 kHz or 48 kHz
  • Dynamic Range: 108 dB, INPUT to OUTPUT, Gain =-6 dB / 112 dB, DA Converter
  • Hum & Noise Level:
    • Equivalent Input Noise: -128 dBu, Gain = +66 dB (Measured with A-weighting filter)
    • Residual Output Noise: -88 dBu, ST Master off (Measured with A-weighting filter)
  • Crosstalk: -100 dB, adjacent INPUT/OUTPUT channels, Input Gain +-6 dB (Measured with a -30 dB/octave filter @ 22 kHz)
  • Heat Dissipation: 100 - 240V, 50/60 Hz, 43.5 kcal/h
  • Power Requirements: 100 - 240V, 50/60 Hz
  • Power Consumption: 50W
  • Dimensions: 18-7/8" W x 3-1/2" H x 14-3/8" D (480 x88 x 364 mm)
  • Net Weight: 12.6 lbs. (5.7 kg)
  • Accessories: Owner's Manual, Power Cord (2.5 m), Rubber Stoppers x4
  • Temperature Range:
    • Operating Temperature Range: 0°C to 40°C
    • Storage Temperature Range: -20°C to 60°C

Yamaha Tio1608-D
16-input/8-output Dante Stagebox for TF Series Mixers

OUR PART #  TIO1608-D

Product Information:

The Yamaha Tio1608-D is a Dante-equipped I/O rack with 16 microphone/line inputs and 8 line outputs and features the same recallable D-PRE™ microphone preamplifiiers as the TF series.

Digital Stagebox System with a Maximum of Three Units
Users wishing to expand on the TF's already extensive input/output capability can easily add up to 3 units with the optional NY64-D expansion card (sold separately) and Tio1608-D I/O racks. Daisy-chaining the main console offstage and Tio1608-D I/O racks on stage using lightweight CAT5e Ethernet cables allows low-latency, high-quality sound transmission without the time-consuming transport and setup of bulky analog snakes.

Dante High-Reliability Network Audio Protocol
Dante has been adopted by the leading manufacturers and professionals in the sound reinforcement industry for its low jitter, low latency, and high sampling accuracy. Using the Tio1608-D you can easily configure a high-performance Dante stagebox system with little or no IT networking knowledge. Thanks to the flexibility of the Dante network protocol, TF Series consoles can be connected to an extensive range of Dante-enabled equipment such as R Series I/O racks.

Fast and Easy QUICK CONFIG Mode
By enabling the QUICK CONFIG mode on the Tio1608-D, all the connection settings such as network settings and audio patching are set automatically making system configuration easy. After confirming QUICK CONFIG mode is activated on the TF console and Tio racks, simply set a UNIT ID for each Tio1608-D, then daisy chain the TF console and the Tio racks.

Simple and Flexible Input Selection
Once the basic configuration is completed, you can easily assign inputs to best suit your system setup. By using the ALL INPUT function, users can assign all inputs to the Tio racks, the TF console, or a Mac/Windows PC instantly. Users can also change each input to receive signal from multiple locations so that users can effectively use all inputs.

Recallable D-PRE Preamplifiers
The Tio1608-D inherits the natural, musical sensibility that Yamaha pursued in the development of the TF Series. Mechanical construction, circuit board layout, power supply, grounding, and parts selection have all been executed with meticulous attention to detail and quality, combined with exhaustive performance and listening tests at each stage of development. The Tio1608-D features the same recallable D-PRE microphone preamplifiers as the TF Series to provide a consisten, natural, musical sound throughout the entire system.

Yamaha Tio1608-D Specifications:

  • Sampling Frequency Rate - External: 44.1 kHz or 48kHz
  • Total Harmonic Distortion: Less than 0.1% +4 dBu @ 20Hz - 20 kHz into 600 Ohms, Gain = +66 dB / Less than 0.05% +4 dBU @ 20 Hz - 20 kHz into 600 Ohms, Gain =-6 dB, INPUT to OUTPUT, Fs =44.1 kHz, 48 kHz (Measured with a -18 dB/octave filter @ 80 kHz)
  • Frequency Response: +0.5, -1.5 dB 20 Hz - 20 kHz, refer to the nominal output level @ 1 kHz, INPUT to OUTPUT, Fs =44.1 kHz or 48 kHz
  • Dynamic Range: 108 dB, INPUT to OUTPUT, Gain =-6 dB / 112 dB, DA Converter
  • Hum & Noise Level:
    • Equivalent Input Noise: -128 dBu, Gain = +66 dB (Measured with A-weighting filter)
    • Residual Output Noise: -88 dBu, ST Master off (Measured with A-weighting filter)
  • Crosstalk: -100 dB, adjacent INPUT/OUTPUT channels, Input Gain +-6 dB (Measured with a -30 dB/octave filter @ 22 kHz)
  • Heat Dissipation: 100 - 240V, 50/60 Hz, 43.5 kcal/h
  • Power Requirements: 100 - 240V, 50/60 Hz
  • Power Consumption: 50W
  • Dimensions: 18-7/8" W x 3-1/2" H x 14-3/8" D (480 x88 x 364 mm)
  • Net Weight: 12.6 lbs. (5.7 kg)
  • Accessories: Owner's Manual, Power Cord (2.5 m), Rubber Stoppers x4
  • Temperature Range:
    • Operating Temperature Range: 0°C to 40°C
    • Storage Temperature Range: -20°C to 60°C
