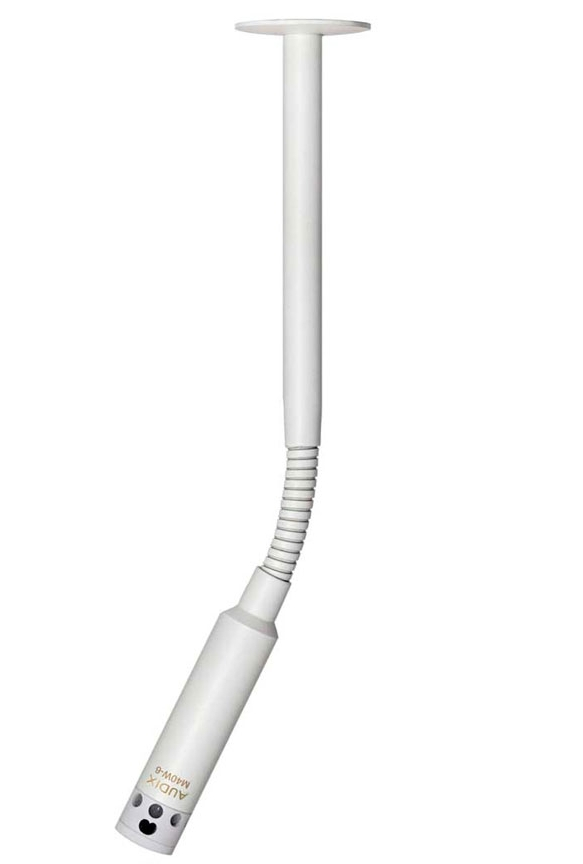

Audix M40W6S
Supercardroid Hanging Microphone with 6-Inch Gooseneck, White

OUR PART #:  M40W6S

The M40 is a miniaturized condenser microphone with a fully integrated preamp designed with very high sensitivity for distance miking.
Learn More

Call for price! Not available online.

Similar Products

The M40 is a miniaturized condenser microphone with a fully integrated preamp designed with very high sensitivity for distance miking. The primary applications for the ceiling mounted M40 include Video & Teleconferencing (VTC), distance learning, hospital rooms, surveillance and ambient room miking.

The M40 has complete immunity from RF interference caused by cell phones and GSM devices. The M40, which comes with a cardioid capsule, is also available with hypercardioid or shotgun capsules, allowing for the microphone to be used in a wide variety of applications.

The M40 is easy to install requiring only that a 5/8 inch hole be drilled in the ceiling with no additional tools required. The cable assembly is equipped with a terminal block connector. For installations where plenum rated cable is to be used a UL rated, metal plenum junction box is available.

M40W6S Features:

  • Optimized for voice recognition
  • Immunity from RF interference
  • Point to shoot directivity
  • Integrated preamp circuitry
  • 12 mm gold vapordiaphragm
  • Extremely low noise, high sensitivity
  • Designed, assembled andtested in the USA

M40W6S Specifications:

  • Transducer Type: Condenser
  • Frequency Response: 60 Hz - 10 kHz
  • Polar Pattern: Cardioid / Hypercardioid / Supercardioid
  • Output Impedance: 150 ohms
  • Sensitivity: 37 mV / Pa @ 1k
  • Equivalent Noise Level: 22 dB (A-weighted)
  • Signal to Noise Ratio: 72 dB
  • Maximum SPL: >/= 130 dB
  • Dynamic Range: 108 dB
  • Power Requirements: 18-52 V phantom
  • Connector: 3-pin terminal block
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Materials / Finish: Aluminum & Zinc Alloy / White or Black Finish
  • Weight: 75 g / 12.9 oz
  • Length: 165 mm / 6.5 in
