Radial Engineering HEADLOAD-PRODIGY
Load Box And DI Combination With Headphone Amplifier

OUR PART #  HEADLOAD-PRODIGY

Our Price: $399.99
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

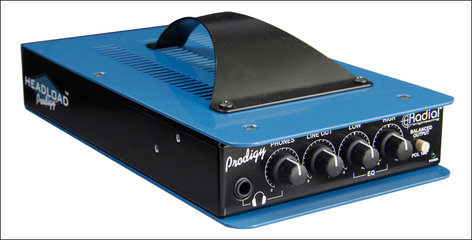

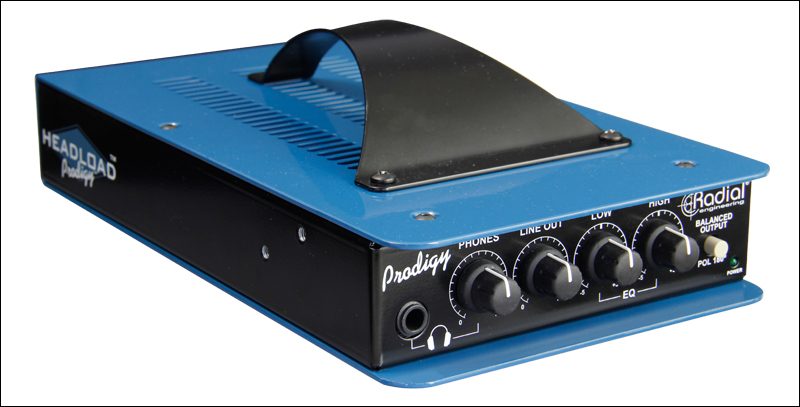

The Headload Prodigy™ is a combination load box and DI that lets you drive your guitar amp at a higher output in order to maximize the tone, yet produce a lower stage volume when needed.

Like the larger Headload™, the Prodigy employs custom made cement-encrusted ceramic-coated resister coils to convert the excessive power from the amplifier to heat and is able to withstand up to 100 watts RMS. The Prodigy may be used in three different ways, depending on the need: First, it may be used as a direct box via the built-in Radial JDX Reactor. The JDX combines a reactive load with a proprietary filter bank to emulate the tone of a 4 x 12 half stack. This features 100% discrete class-A circuitry for optimal tone and transformer isolation to eliminate hum and buzz caused by ground loops. Designed to replace a microphone, the JDX delivers greater consistency while eliminating concerns such as stage resonance, bleed from other instruments and problematic room acoustics which can play havoc on the tone.

Second, the Prodigy may be used as a load box where you can attenuate the output from 100% down to 50% to drive your amp harder while keeping the volume down to a comfortable level. Finally, the prodigy can be used without a speaker cabinet for completely silent recording. This is particularly useful in small venues where the speaker cabinet on stage may conflict with the sound in the room. It is also great for silent recording where you want to take advantage of 'high power' amp distortion without upsetting the neighbours.

In order to optimize the playing experience for in-ear monitors, a dual band EQ lets you optimize bass and treble settings. Two additional 1/4" outputs enhance connectivity: The first is direct from the amp while the second is post EQ - post JDX. These are used to feed additional amplifiers or effects and adjusted using the front panel level control. A second level control is used to adjust the built-in headphone amplifier for silent practicing.

Housed in 14-gauge steel to help keep magnetic radiation at bay, the Headload Prodigy features a handy carry handle plus Radial's unique book-end design that creates a protective zone around the switches and controls. The internal I-beam construction adds tremendous rigidity, protecting the sensitive PC board from being torqued which could lead to solder joints going cold prematurely. One or two Prodigies may be rack-mounted into a single 19" rack space using an optional rack kit and power is supplied by an external 15VDC supply with a cable clamp to prevent accidental disconnection. Available in the 8 ohm model.

Radial Headload Prodigy Features:

  • Load box with 100%, 50%, and silent attenuation
  • Lets you drive your amp hard for the best tone
  • JDX Reactor direct output for PA and monitors
  • Built-in headphone amp for practicing

Radial Headload Prodigy Specifications:

  • Audio Circuit Type: Passive attenuation circuit withactive equalization
  • Frequency response: Shaped to emulate a classic guitarcabinet
  • Gain: -30dB/-42dB
  • Noise floor: -106dBu
  • Maximum input: 130 watts continuous
  • Total harmonic distortion: 0.05%
  • Intermodulation distortion: 0.05%
  • Input / output impedance: 4 ohm, 8 ohm, 16 ohm speakerload (model dependent)
  • Output level - max - 1KHz: +17dBu
  • Output level - max - 20Hz: +14dBu
  • Gain reduction: 100%, 50%, 0%
  • Equalization: Low EQ: +/- 9dB @ 80Hz
  • High EQ: +/- 9dB @ 6KHz
  • Headphone output: 400mW into 32 ohm
  • Unbalanced line out: Hi-Z 1/4", pre or post EQ
  • Balanced line out: 250 ohm post EQ
  • Ground lift: Disconnects pin-1 at the XLR input
  • Power: Radial +/-15V 400mA power supply
  • Construction: 14 gauge steel chassis & outer shell
  • Finish: Durable powder coat
  • Size: (L x W x H) 10.25" x 5,9" x 3.75" (260.3 x149.7x 95.2mm)
  • Weight: 5.3lbs (2.4kg)
  • Power supply: +/-15v (400mA) power supply

Radial Engineering HEADLOAD-PRODIGY
Load Box And DI Combination With Headphone Amplifier

OUR PART #  HEADLOAD-PRODIGY

Product Information:

The Headload Prodigy™ is a combination load box and DI that lets you drive your guitar amp at a higher output in order to maximize the tone, yet produce a lower stage volume when needed.

Like the larger Headload™, the Prodigy employs custom made cement-encrusted ceramic-coated resister coils to convert the excessive power from the amplifier to heat and is able to withstand up to 100 watts RMS. The Prodigy may be used in three different ways, depending on the need: First, it may be used as a direct box via the built-in Radial JDX Reactor. The JDX combines a reactive load with a proprietary filter bank to emulate the tone of a 4 x 12 half stack. This features 100% discrete class-A circuitry for optimal tone and transformer isolation to eliminate hum and buzz caused by ground loops. Designed to replace a microphone, the JDX delivers greater consistency while eliminating concerns such as stage resonance, bleed from other instruments and problematic room acoustics which can play havoc on the tone.

Second, the Prodigy may be used as a load box where you can attenuate the output from 100% down to 50% to drive your amp harder while keeping the volume down to a comfortable level. Finally, the prodigy can be used without a speaker cabinet for completely silent recording. This is particularly useful in small venues where the speaker cabinet on stage may conflict with the sound in the room. It is also great for silent recording where you want to take advantage of 'high power' amp distortion without upsetting the neighbours.

In order to optimize the playing experience for in-ear monitors, a dual band EQ lets you optimize bass and treble settings. Two additional 1/4" outputs enhance connectivity: The first is direct from the amp while the second is post EQ - post JDX. These are used to feed additional amplifiers or effects and adjusted using the front panel level control. A second level control is used to adjust the built-in headphone amplifier for silent practicing.

Housed in 14-gauge steel to help keep magnetic radiation at bay, the Headload Prodigy features a handy carry handle plus Radial's unique book-end design that creates a protective zone around the switches and controls. The internal I-beam construction adds tremendous rigidity, protecting the sensitive PC board from being torqued which could lead to solder joints going cold prematurely. One or two Prodigies may be rack-mounted into a single 19" rack space using an optional rack kit and power is supplied by an external 15VDC supply with a cable clamp to prevent accidental disconnection. Available in the 8 ohm model.

Radial Headload Prodigy Features:

  • Load box with 100%, 50%, and silent attenuation
  • Lets you drive your amp hard for the best tone
  • JDX Reactor direct output for PA and monitors
  • Built-in headphone amp for practicing

Radial Headload Prodigy Specifications:

  • Audio Circuit Type: Passive attenuation circuit withactive equalization
  • Frequency response: Shaped to emulate a classic guitarcabinet
  • Gain: -30dB/-42dB
  • Noise floor: -106dBu
  • Maximum input: 130 watts continuous
  • Total harmonic distortion: 0.05%
  • Intermodulation distortion: 0.05%
  • Input / output impedance: 4 ohm, 8 ohm, 16 ohm speakerload (model dependent)
  • Output level - max - 1KHz: +17dBu
  • Output level - max - 20Hz: +14dBu
  • Gain reduction: 100%, 50%, 0%
  • Equalization: Low EQ: +/- 9dB @ 80Hz
  • High EQ: +/- 9dB @ 6KHz
  • Headphone output: 400mW into 32 ohm
  • Unbalanced line out: Hi-Z 1/4", pre or post EQ
  • Balanced line out: 250 ohm post EQ
  • Ground lift: Disconnects pin-1 at the XLR input
  • Power: Radial +/-15V 400mA power supply
  • Construction: 14 gauge steel chassis & outer shell
  • Finish: Durable powder coat
  • Size: (L x W x H) 10.25" x 5,9" x 3.75" (260.3 x149.7x 95.2mm)
  • Weight: 5.3lbs (2.4kg)
  • Power supply: +/-15v (400mA) power supply
