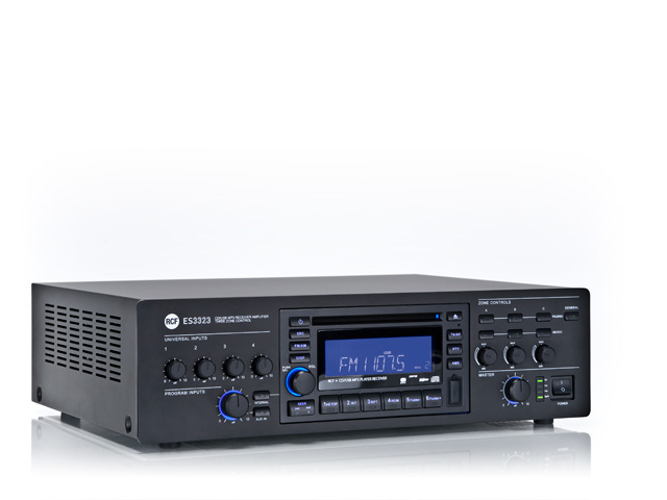

RCF ES-3323-MK2
4-Channel 3-Zone 320W RMS Mixer/Amplifer with CD And USB-MP3 Playback

OUR PART #  ES-3323-MK2

Our Price: $1,949.00
List Price: $2,749.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

ES 3323 II is a mixer-amplifier with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket), CD/USB/Bluetooth – MP3 player and tuner and an aux input for an additional external music source.

The amplifier nominal power is 320 W, available on 100 – 70 V constant voltage output (for loudspeakers having 100 – 70 V transformers). The 3 PAGING buttons on the front panel can be used to select zones to be paged by either the channel 1 or 4; The 3 MUSIC buttons turn the music on in the respective zones. As (optional) system expansion, it is possible to link a second generic external amplifier (delivering enough power for all loudspeakers, i.e. RCF UP 2321) to keep the background music in the zones that are not paged.

RCF ES-3323-MK2 Features:

  • CD-USB/MP3 Player / FM tuner / Mixer Amplifier / 3zone control - Bluetooth connection with external devices
  • IR Remote control for CD - USB/MP3 player and tunerfunctions
  • Full digital technology amplifier 320W RMS, 100V-70Voutputs
  • 4 universal inputs with phantom facility, PresenceControl and per-channel High-Pass filters
  • RJ45 connectors on input 2 and 3 for connection toBM3001 and BM 3003 microphone
  • Screw terminal connections, additional XLR and RJ45input connections available
  • Configurable Priority settings, VOX facility on input1
  • Selectable aux input for music source with volume andtone controls
  • USB port on front panel allows reproduction of MP3files from a memory stick
  • Music On Hold and PRE outputs
  • The 3 PAGING buttons can be used to select zones tobe paged by either the channel 1 or 4
  • GENERAL call button is available
  • The 3 MUSIC buttons turn the music on in therespective zones
  • Possible to link a external amplifier (i.e. RCF UP2321) to keep the background music in the zones that are not paged
  • Low impedance (min. 4 Ohms) 2 W output for a monitor loudspeaker is available

RCF ES-3323-MK2 Specifications:

  • Amplifier Specifications
    • Power Output:  320 W rms
    • Frequency Response:  50 Hz ÷ 20 kHz
    • Distortion: < 0.3%
    • Signal/noise rate: (MIC) > 60 d ;(AUX) > 80 dB;(MAIN) > 85 dB
    • Crosstalk: (MIC) > 60 d ;(AUX) > 80 dB; (MAIN)> 85 dB
    • Phantom Power:  32 V dc
  • Input Section
    • Input sensitivity MIC: - 50 dBu
    • Input sensitivity PHANTOM: - 21 dBu
    • Input sensitivity LINE: 0 ÷ + 16 dBu
    • Input sensitivity AUX: - 6 ÷ + 13 dBu
    • Input impedance MIC: 10 kOhms
    • Input impedance PHANTOM: 5 kOhms
    • Input impedance LINE: 10 kOhms
    • Input impedance AUX: 20 kOhms
    • Bass Tone: (80 Hz) +/- 8 dB
    • Treble Tone: (13 kHz) +/- 8 dB
    • Presence control: (2.15 kHz) + 10 dB
    • High-pass filter: 150 Hz
  • Output Section
    • Output Level: – 1 dBu
    • Output impedance: 600 Ohms
    • Phantom power voltage/current: 32 / 0.018 V/A
    • Output Loudspeaker Low impedance: 4 Ohms
    • Output Loudspeaker Constant voltage: 100 V ; 70 V
    • AUX output: Pre ; Music on hold ; Internal programstereo
    • Protections: Short circuit, thermal, Short circuit, fuse
  • Tuner Specifications
    • Frequency range: 87.5 ÷ 108 MHz
    • Frequency Response: 30 Hz ÷ 15 kHz
    • Stereo separation: > 30 dB
    • FM Intermediate rejection: > 70 dB
    • FM Image rejection: > 50 dB
    • FM signal/noise ratio: > 55 dB
    • AM (MW) range: 522 ÷ 1620 kHz
    • Antenna input: 75 Ohms
  • CD / MP3 Player Specifications
    • Frequency Response: 20 Hz ÷ 20 kHz
    • Signal/noise ratio: > 80 dB
    • Total harmonic distortion: > 0.2%
    • Stereo separation: > 55 dB
  • Power Requirement
    • Operating voltage: 115-230V ~ 50 / 60Hz V Hz
    • Power (consumption): 350 W
    • Fuse model: T5AL - 250 V ; T10AL - 250 V
  • Physical Specifications
    • Height: 5" (127 mm)
    • Width: 17.48" (444 mm)
    • Depth: 13.58" (345 mm)
    • Net weight: 22.26 lbs (10.1 kg)
  • Shipping Information
    • Package height: 9.44" (240 mm)
    • Package width: 21.06" (535 mm)
    • Package depth: 17.91" (455 mm)
    • Shipping weight: 26.45 lbs (12 kg)

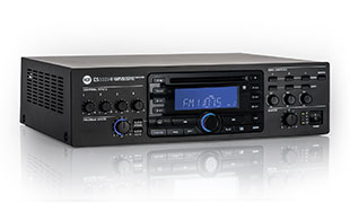

RCF ES-3323-MK2
4-Channel 3-Zone 320W RMS Mixer/Amplifer with CD And USB-MP3 Playback

OUR PART #  ES-3323-MK2

Product Information:

ES 3323 II is a mixer-amplifier with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket), CD/USB/Bluetooth – MP3 player and tuner and an aux input for an additional external music source.

The amplifier nominal power is 320 W, available on 100 – 70 V constant voltage output (for loudspeakers having 100 – 70 V transformers). The 3 PAGING buttons on the front panel can be used to select zones to be paged by either the channel 1 or 4; The 3 MUSIC buttons turn the music on in the respective zones. As (optional) system expansion, it is possible to link a second generic external amplifier (delivering enough power for all loudspeakers, i.e. RCF UP 2321) to keep the background music in the zones that are not paged.

RCF ES-3323-MK2 Features:

  • CD-USB/MP3 Player / FM tuner / Mixer Amplifier / 3zone control - Bluetooth connection with external devices
  • IR Remote control for CD - USB/MP3 player and tunerfunctions
  • Full digital technology amplifier 320W RMS, 100V-70Voutputs
  • 4 universal inputs with phantom facility, PresenceControl and per-channel High-Pass filters
  • RJ45 connectors on input 2 and 3 for connection toBM3001 and BM 3003 microphone
  • Screw terminal connections, additional XLR and RJ45input connections available
  • Configurable Priority settings, VOX facility on input1
  • Selectable aux input for music source with volume andtone controls
  • USB port on front panel allows reproduction of MP3files from a memory stick
  • Music On Hold and PRE outputs
  • The 3 PAGING buttons can be used to select zones tobe paged by either the channel 1 or 4
  • GENERAL call button is available
  • The 3 MUSIC buttons turn the music on in therespective zones
  • Possible to link a external amplifier (i.e. RCF UP2321) to keep the background music in the zones that are not paged
  • Low impedance (min. 4 Ohms) 2 W output for a monitor loudspeaker is available

RCF ES-3323-MK2 Specifications:

  • Amplifier Specifications
    • Power Output:  320 W rms
    • Frequency Response:  50 Hz ÷ 20 kHz
    • Distortion: < 0.3%
    • Signal/noise rate: (MIC) > 60 d ;(AUX) > 80 dB;(MAIN) > 85 dB
    • Crosstalk: (MIC) > 60 d ;(AUX) > 80 dB; (MAIN)> 85 dB
    • Phantom Power:  32 V dc
  • Input Section
    • Input sensitivity MIC: - 50 dBu
    • Input sensitivity PHANTOM: - 21 dBu
    • Input sensitivity LINE: 0 ÷ + 16 dBu
    • Input sensitivity AUX: - 6 ÷ + 13 dBu
    • Input impedance MIC: 10 kOhms
    • Input impedance PHANTOM: 5 kOhms
    • Input impedance LINE: 10 kOhms
    • Input impedance AUX: 20 kOhms
    • Bass Tone: (80 Hz) +/- 8 dB
    • Treble Tone: (13 kHz) +/- 8 dB
    • Presence control: (2.15 kHz) + 10 dB
    • High-pass filter: 150 Hz
  • Output Section
    • Output Level: – 1 dBu
    • Output impedance: 600 Ohms
    • Phantom power voltage/current: 32 / 0.018 V/A
    • Output Loudspeaker Low impedance: 4 Ohms
    • Output Loudspeaker Constant voltage: 100 V ; 70 V
    • AUX output: Pre ; Music on hold ; Internal programstereo
    • Protections: Short circuit, thermal, Short circuit, fuse
  • Tuner Specifications
    • Frequency range: 87.5 ÷ 108 MHz
    • Frequency Response: 30 Hz ÷ 15 kHz
    • Stereo separation: > 30 dB
    • FM Intermediate rejection: > 70 dB
    • FM Image rejection: > 50 dB
    • FM signal/noise ratio: > 55 dB
    • AM (MW) range: 522 ÷ 1620 kHz
    • Antenna input: 75 Ohms
  • CD / MP3 Player Specifications
    • Frequency Response: 20 Hz ÷ 20 kHz
    • Signal/noise ratio: > 80 dB
    • Total harmonic distortion: > 0.2%
    • Stereo separation: > 55 dB
  • Power Requirement
    • Operating voltage: 115-230V ~ 50 / 60Hz V Hz
    • Power (consumption): 350 W
    • Fuse model: T5AL - 250 V ; T10AL - 250 V
  • Physical Specifications
    • Height: 5" (127 mm)
    • Width: 17.48" (444 mm)
    • Depth: 13.58" (345 mm)
    • Net weight: 22.26 lbs (10.1 kg)
  • Shipping Information
    • Package height: 9.44" (240 mm)
    • Package width: 21.06" (535 mm)
    • Package depth: 17.91" (455 mm)
    • Shipping weight: 26.45 lbs (12 kg)
