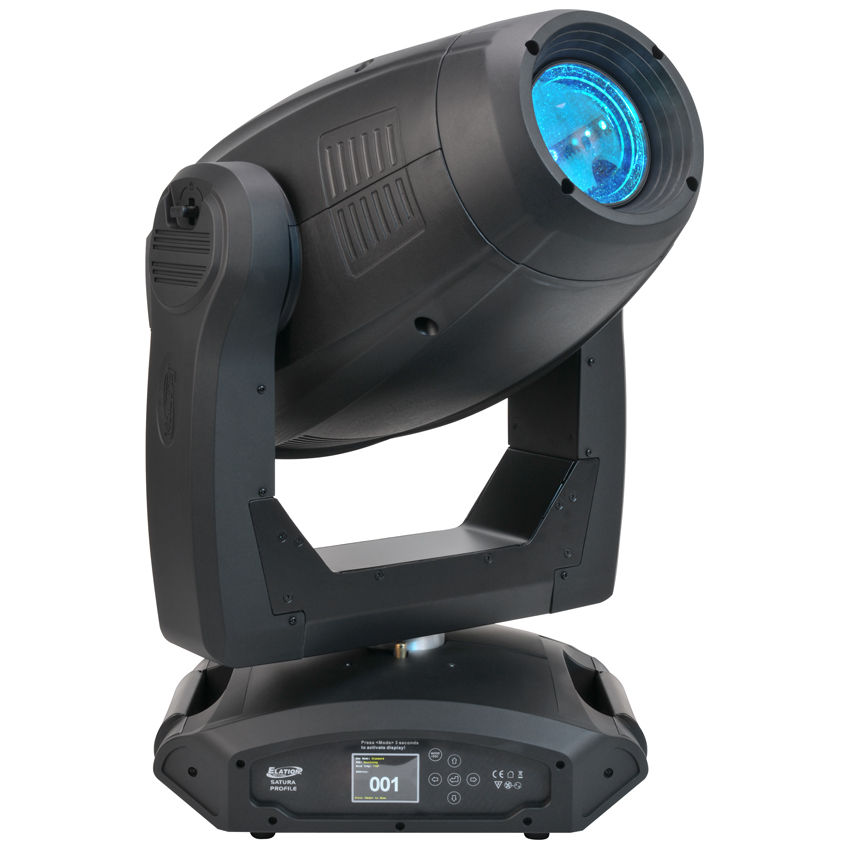

Elation Pro Lighting Satura Profile
440W LED CMY Moving Head Spot

OUR PART #:  SATURA-PROFILE

The Satura Profile™ features a new 440W LED Cool White LED engine, delivering a total of 20,000 lumens, 11° to 38° zoom...
Learn More

Call for price! Not available online.
List Price: $7,500.00

Similar Products

The Satura Profile™ features a new 440W LED Cool White LED engine, delivering a total of 20,000 lumens, 11° to 38° zoom, full CMY color mixing and CTO, 7 dichroic colors, 6 rotating-interchangeable glass and 7 static-stamped metal gobos, 4-blade framing shutter system, 3-facet rotating prism, frost filter, motorized iris and focus, variable dimming curves, high speed electronic shutter and strobe, hibernation mode, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 5pin XLR, and RJ45 ethernet in/out connections, powerCON in, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).

Elation Pro Lighting Satura Profile Features:

  • 440W Cool White 20,000 Lumen LED Spot Luminaire
  • 11° to 38° Motorized Zoom
  • Full CMY Color Mixing and CTO
  • Seven Dichroic Colors
  • Six Rotating-Interchangable and 7 Static-Stamped Gobos
  • 4-Blade Framing Shutter System
  • 3-Facet Rotating Prism and Frost Filter
  • High Speed Electronic Shutter and Strobe
  • Motorized Iris and Focus and Variable Dimming Curves
  • DMX, RDM, KlingNET™ and Art-NET Support
  • Low Heat, Quiet Operation, Hibernation Mode
  • Flicker Free Operation For Broadcast TV and FILM

Elation Pro Lighting Satura Profile Specifications:

  • Source:
    • 440W Cool White 20,000 Lumen LED Engine
    • 50,000 Hour Average LED Life
  • Photometric Data:
    • 48,160 LUX 4,474 FC @8.2’ (2.5m) (12° Full ON)
    • 6,100 LUX 567 FC @8.2’ (2.5m) (38° Full ON)
  • Effects:
    • 11° - 38° Motorized Zoom
    • 4-Blade Framing Shutter System
    • 3-Facet Rotating Prism and Prism Macros
    • Frost Filter Hybrid Wash Effect
    • Motorized Zoom, Iris and Focus
    • High Speed Electronic Shutter and Strobe
    • Variable Dimming Curves
  • Gobos:
    • 6 Interchangeable-Rotating / Indexing Glass Gobos
    • 7 Static-Interchangeable Metal Gobos
  • Control/Connections:
    • Three DMX Channel Modes (33 / 35 / 54)
    • RDM (Remote Device Management)
    • Six Button Touch Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • 8 / 16 Bit Resolution Adjustable Movement
    • 5pin DMX In/Out
    • RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
    • powerCON Power In
  • Size/Weight:
    • Length: 15.1” (451mm)
    • Width: 13.2” (525mm)
    • Vertical Height: 23.7” (745mm)
    • Weight: pending
  • Electical/Thermal:
    • AC 100-240V - 50/60Hz
    • Max Power Consumption: pending
    • -13°F to 113°F (-25°C to 45°C)
  • Approvals/Ratings: CE/IP20
