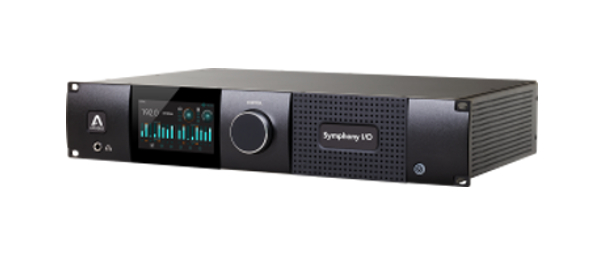

Apogee Symphony I/O Mk II
Thunderbolt 8x8 Analog I/O, 8 x 8 AES/Optical, 8 Microphone Pre-Amplifier Module

OUR PART #:  SYM2-8X8S2-A8MP

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee’s latest AD/DA conversion, modular I/O (up to 32 inputs and outputs)...
Learn More
Our Price: $4,690.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Apogee Symphony I/O Mk II
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee’s latest AD/DA conversion, modular I/O (up to 32 inputs and outputs), intuitive touchscreen display and optional world-class microphone preamps. The new Symphony I/O Mk II comes with direct connectivity to one of three different platforms – Thunderbolt™, Pro Tools® HD or Waves SoundGrid® network.

Apogee Symphony I/O Mk II SYM2-8X8S2-A8MP Features:

  • AD/DA conversion
  • Up to 32 channels of modular analog I/O with optional 8 mic preamps
  • Original Symphony I/O modules are compatible with new Mk II chassis
  • Choice of Thunderbolt, Pro Tools® HD (Mac/PC) or Waves SoundGrid® connectivity
  • Ultra-low latency performance – 1.35 ms with Thunderbolt and Logic Pro X
  • Intuitive touchscreen display and front panel control
  • Designed in California, Built in the U.S.A.

Apogee Symphony I/O MK II SYM2-8X8S2-A8MP Specifications:

  • Inputs:
    • Analog Inputs
      • 8 built-in mic preamps
      • Digitally controlled, 85dB microphone preamps
      • 4 Hi-Z 1/4” instrument inputs capable of handling high level instruments
      • Selectable 48v phantom power, Soft Limit and phase invert
      • 8 balanced inputs on 1 DSUB 25-pin connector
    • Inserts
      • 8 balanced software assignable analog insert points
      • Return 1-8 on 1 DSUB 25-pin connector
    • Digital Inputs
      • *AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector
      • *Optical IN: Supports ADAT, SMUX & S/PDIF
        • ADAT: 8 channels 44.1-48 kHz on 1 Toslinkconnector
        • SMUX: 8 channels 88.2-96 kHz on 2 Toslinkconnectors
        • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
      • Coax IN: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
  • Outputs:
    • Analog Outputs: balanced outputs on 1 DSUB 25-pin connector
    • Inserts
      • 8 balanced software assignable analog insert points
      • Send 1-8 on 1 DSUB 25-pin connector
    • Digital Outputs
      • *AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
      • *Optical OUT: Supports ADAT, SMUX & S/PDIF
        • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
        • SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
        • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
      • Coax OUT: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
  • Connection: Thunderbolt cable (Sold separately)
  • Prformance:
    • 44.1kHz – 192kHz
    • Latency: 1.35 ms with Logic Pro X (96 kHz / 32 buffer)
  • Computer:
    • Thunderbolt-enabled Mac computer, including Mac Pro, MacBook Pro, Mac mini, iMac & MacBook Air
    • Operating System: Mac OS 10.9.5 or greater
  • Control: Maestro app (included in software installer) and front panel touchscreen
  • Compatible Software:
    • Logic Pro X
    • Any Core Audio application on Mac
