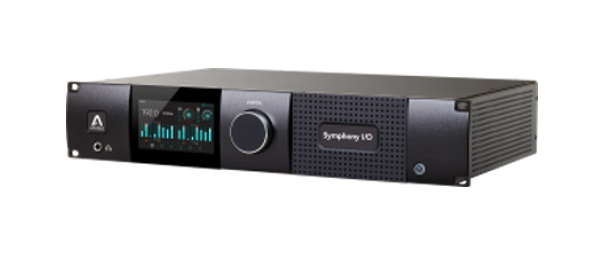

Apogee Symphony I/O Mk II
Multi-Channel Thunderbolt Audio Interface With 8x8 Analog I/O, 8 x 8 AES/Optical I/O, 2-Channel S/PDIF I/O Module

OUR PART #:  SYM2-8X8S2

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee’s latest AD/DA conversion, modular I/O (up to 32 inputs and outputs)...
Learn More
Our Price: $3,295.00
Write the first review.
Apogee Symphony I/O Mk II
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee’s latest AD/DA conversion, modular I/O (up to 32 inputs and outputs), intuitive touchscreen display and optional world-class microphone preamps. The new Symphony I/O Mk II comes with direct connectivity to one of three different platforms – Thunderbolt™, Pro Tools® HD or Waves SoundGrid® network.

Apogee Symphony I/O Mk IISYM2-8X8S2 Features:

  • AD/DA conversion Up to 32 channels of modular analog I/O with optional 8 mic preamps
  • Original Symphony I/O modules are compatible with new Mk II chassis
  • Choice of Thunderbolt, Pro Tools® HD (Mac/PC) or Waves SoundGrid® connectivity
  • Ultra-low latency performance – 1.35 ms with Thunderbolt and Logic Pro X
  • Intuitive touchscreen display and front panel control
  • Designed in California, Built in the U.S.A.

Apogee Symphony I/O Mk IISYM2-8X8S2 Specifications:

  • Inputs:
    • Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
    • *AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector
      • (192k single wide compatible)
    • *Optical IN: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz
    • SMUX: 8 channels 88.2-96 kHz
    • S/PDIF: 2 channels, up to 96 kHz
    • Coax IN: 2 channels of S/PDIF, up to 192 kHz
  • Outputs:
    • Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
    • *AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
      • (192k single wide compatible)
    • *Optical OUT: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz
    • SMUX: 8 channels 88.2-96 kHz
    • S/PDIF: 2 channels, up to 96 kHz
    • Coax OUT: 2 channels of S/PDIF, up to 192 kHz
  • Connection: Thunderbolt cable (Sold separately)
  • Performance:
    • 44.1kHz – 192kHz
    • Latency: 1.35 ms with Logic Pro X (96 kHz / 32 buffer)
  • Computer:
    • Thunderbolt-enabled Mac computer, including Mac Pro, MacBook Pro, Mac mini, iMac & MacBook Air
    • Operating System: Mac OS 10.9.5 or greater
  • Control: Maestro app (included in software installer) and front panel touchscreen
  • Compatible Software:
    • Logic Pro X
    • Any Core Audio application on Mac
