Listen Technologies PLS-900-24
24 Channel Listen System with WiFi

OUR PART #:  PLS-900-24

The PLS-900-24 empowers venues like fitness centers, sports bars...
Learn More
Our Price: $5,299.00
Write the first review.
Listen Technologies PLS-900-24
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The PLS-900-24 empowers venues like fitness centers, sports bars, and cinemas to provide patrons with an outstanding audio experience without the need to purchase and maintain receivers.  This new system has been redesigned from the ground up to deliver great audio quality, simplicity and flexibility.

The PLS-900 distributes up to 24 analog audio sources via digital WiFi transmission using scalable multicast technology. Low latency audio is delivered to the end user's own Apple or Android mobile device, using the free redesigned ListenWiFi mobile App, when connected to the Personal Listening WiFi network.

The system includes an audio interface that converts up to 24 analog audio sources, a 2 RU server for managing the audio channels, and a wireless access point that delivers high-quality stereo audio up to 60 users over 5000 sq feet. Internet connectivity delivered to the server allows patrons at the venue to use Internet content such as email and social media while streaming local audio content. Additionally, the internet connection allows for automatic updates, remote management and additional configuration of the server including adding a venue logo to the mobile app.

The system is easy to install, simple to maintain and is backed by Listen Technologies outstanding support. Venues benefit from a low cost of ownership while enabling customers to receive high-quality audio using their own mobile devices (BYOD).

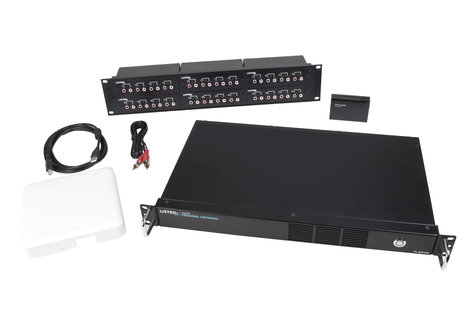

Listen Technologies PLS-900-24 Features:

  • One (1) PL-900-01 Server
  • One (1) PL-400-24-2R ListenWiFi 16 Channel Audio Interface, 2 RU (includes RCA/USB cables and TV labels)
  • One (1) PL-301 ListenWiFi Wireless Access Point
  • One (1) PL-200 ListenWiFi WAP Power over Ethernet Injector
  • One (1) PL-100 ListenWiFi Venue Awareness Kit
  • One (1) CAT6-25 Cat6 STP Cable Assemly 25 ft. (7.62 m)

Listen Technologies PLS-900-24 Specifications:

  • Audio
    • Frequency Response: 20 Hz - 20 kHz (+/- 0.5 dB)
    • Distortion: <0.5% total harmonic distortion (THD)
    • Input Sensitivity: -10dBu unbalanced RCA (10 stereo inputs)
    • Latency: 90 ms (varies by mobile device)
    • Channels: 4 Stereo Channels
    • Dynamic Range: 84 dB (Stereo and Mono)
    • Sample Rate: 44.1 kHz
    • Resolution: 16 bit depth
  • Interconnections:
    • Audio Inputs: Stereo Phono (RCA)
    • USB: Type A Female (server) to Type B Female (audio interface) - USB cables provided
  • RF
    • Frequency Range: 2.4 GHz and 5 GHz (wireless access point)
  • Power
    • Power Supply Voltage: 19 VDC 3.34 A Supply (63 Watts)
  • Physical
    • Dimensions (H x W x D): Server - 1RU rack mountable, 1.75" (45 mm) x 19" (4283 mm) x 11.25" (286 mm) (excludes feet)
    • Dimensions (H x W x D): Audio Interface - 2RU ADC rack panel, 3.5" (89 mm) x 18.95" (481 mm) x 3.13" (80 mm) *includes depth of RCA jack
    • Weight: 10 lbs (34.5 kg) (Server 7.4 lbs + 6 x ADC 2.4 lbs + 2U panel 0.4 lbs)
    • Ambient Noise: 30 dB
  • Network
    • Data Rate: Gigabit Ethernet
