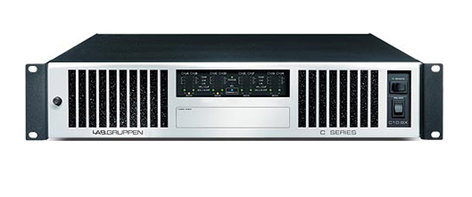

Lab Gruppen C10-8X
8-Channel Power Amp (70v RMS)

OUR PART #:  C10-8X

The Lab Gruppen C 10:8X is an 8-channel amplifier that delivers 8 x 125 W* at 4 ohms, 8 ohms...
Learn More

Call for price! Not available online.

Similar Products

The Lab Gruppen C 10:8X is an 8-channel amplifier that delivers 8 x 125 W* at 4 ohms, 8 ohms, 16 ohms or 70 V RMS (250 W at 100 V RMS is available by bridging two channels) from a 2U chassis.

This amplifier is uniquely capable of adapting to a wide variety of demanding load conditions. Each channel has an individually configurable Voltage Peak Limiter (VPL), which allows the output to be optimized for any loudspeaker load – whether a single large subwoofer or a series of small 70 V loudspeakers (100 V in bridge mode). VPL works in combination with adjustable input gain (adjustable in 4-channel blocks) to achieve maximum headroom regardless of input levels or output impedances. Additionally a 35 Hz high pass filter may be inserted in each 4-channel section.

Every C Series amplifier is ready for the NomadLink® network right out of the box. With NomadLink®, key amplifier parameters are displayed via DeviceControl PC software, and remote control of channel mutes and power on/off is under network control.

* Maximum continuous output power, all 8 channels driven, VPL set at 100 V and Gain set at 32 dB.

NOTE: Please consult attached specs sheet for any inquiries regarding technical data.
