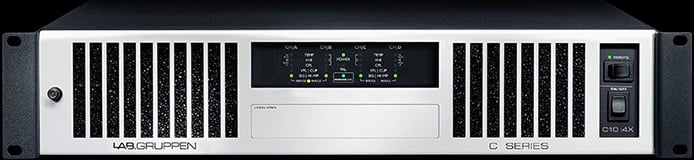

Lab Gruppen C10-4X
C Series 4-Channel, 70V Amplifier (4x250W)

OUR PART #:  C10-4X

Lab Gruppen's C 10:4X delivers 4 × 250 W (max.
Learn More

Call for price! Not available online.

Related Products

Lab Gruppen's C 10:4X delivers 4 × 250 W (max. continuous output power, all 8 channels driven, VPL set at 100 V and Gain set at 32 dB) at 4 ohms, 8 ohms, 16 ohms or 70 Vrms; 500 W at 100 Vrms is available in bridge mode.

The C 10:4X employs a cost-efficient, proprietary Class D output design.  Other features include a universal power supply, selectable 35 Hz high-pass filter, and built-in GPIO control facilities.

Each channel has an individually configurable Voltage Peak Limiter (VPL), which allows the output to be optimized for any loudspeaker load – whether a single large subwoofer or a series of small 70 V loudspeakers (100 V in bridge mode).  VPL works in combination with adjustable input gain (adjustable in 2-channel blocks) to achieve maximum headroom regardless of input levels or output impedances.  Additionally a 35 Hz high pass filter may be inserted in each 2-channel section.

Every C Series amplifier is ready for the NomadLink® network right out of the box.  With NomadLink, key amplifier parameters are displayed via DeviceControl software, and remote control of channel mutes and power on/off is under network control.

GPIO facilities allow access to key amplifier functions such as power on/off and fault reporting.

For more information, please consult the attached sheet (under "Documents")

Lab.Gruppen C10-4X Amplifier Specifications:

  • Number of channels: 4
  • Peak total output all channels driven: 1000 W
  • Peak output voltage per channel: 100 V / 70 Vrms
  • Max. output current per channel: 8 Arms
  • Dimensions: 19" W x 13.5" D x 2RUH (483 x 88 x 343 mm)
  • Weight: 18.75 lbs. (8.5 kg)
  • Finish: Black painted steel chassis with gray paintedsteel front
  • Approvals: CE, ANSI/UL 60065 (ETL), CSA C22.2 NO. 60065, FCC

Max. Output Power per Channel (all channels driven):

  • 16 Ohms: 250 W
  • 8 Ohms: 250 W
  • 4 Ohms: 250 W
  • 2 Ohms: 125 W
  • Hi-Z: 250 W (70 Vrms/100 V peak)

Max. Output Power Bridged per Channel:

  • 16 Ohms: 500 W
  • 8 Ohms: 500 W
  • 4 Ohms: 250 W
  • 2 Ohms: n.r.
  • Hi-Z: 500 W (140 Vrms/200 V peak)

Performance with Gain: 32 dB and VPL: 100 V

  • THD 20 Hz - 20 kHz for 1 W: <0.1%
  • THD at 1 kHz and 1dB below clipping: <0.05%
  • Signal To Noise Ratio: >112 dBA
  • Channel separation (Crosstalk) at 1 kHz: >70 dB
  • Frequency response (1 W into 8 ohms) +0/-3 dB: 2.3 Hz- 56 kHz
  • Input impedance: 20 kOhm
  • Input Common Mode Rejection, CMR: 50 dB
  • Output impedance @ 100 Hz: 48 mOhm

Voltage Peak Limiter (VPL), max. peak output:

  • VPL, selectable per ch.: 100, 63, 45, 32 V
  • VPL, selectable when bridged: 200, 126, 90, 64 V
  • Voltage Peak Limiter mode (per ch.): Hard / Soft

Gain and Level:

  • Amplifier gain selectable (all channels) – rear-panelswitches: 29, 32, 35, 38 dB
  • Default gain: 32 dB
  • Level adjustment (per ch.): Front-panel potentiometer, 21 positiondetented from -inf to 0 dB, hidden behind security panel/dust filtergrille

Connectors and switches:

  • Input connectors (per ch.) :3-pin Phoenix,electronically balanced
  • Output connectors (per ch.): Barrier strip 2-polescrew terminals
  • Output bridge mode: A+B and/or C+D, inputs A and Care signal source
  • High pass filter: Fixed at 35 Hz, switchable perchannel
  • NomadLink® network: On board, 2 x RJ45 connectors, INand OUT
  • Intelligent fans (on/off): Yes, depending on presenceof output signal
  • Power on/off and Remote enable on/off: Individualswitches on front-panel
  • Cooling: Two fans, front-to-rear airflow, temperaturecontrolled speed
  • General Purpose Outputs (GPO): Contact Closure types,2-pole Phoenix
  • General Purpose Inputs (GPI): Contact Closure types, 2-pole Phoenix

Front-panel indicators:

  • Common: NomadLink® Network; Power Average Limiter(PAL); Power on
  • Per channel: Signal present / High-impedance; Voltage Peak Limiter (VPL);Current Peak Limiter (CPL):
    Very High Frequency (VHF); High temperature;Fault; Mute


  • Operating voltage, 230 V / 115 V nominal: 100-240 V
  • Minimum power-up voltage, 230 V / 115 V: 80 V
  • Power Average Limiter (PAL): Yes
  • Soft start / Inrush current draw: Yes / max. 5 A
  • Mains connector: IEC Inlet / NEMA 5-15P

Note 1: Automatic -6 dB gain compensation when bridging channels. Ch.’s A+B and/or C+D, can be bridged individually.
Note 2: PAL can reduce the maximum output power to keep the power supply operating safely, and/or to prevent excessive current draw tripping the mains breaker.
Note 3: For sine waves, peak voltage output values translate to Vrms with the formula V/1.41 = Vrms. E.g. 100 V peak equals app. 70 Vrms.  Hence, outputs can be set for high-impedance loads without requiring a transformer.
