Allen & Heath-Xone XONE-43
4-Channel Analog DJ Mixer


The Allen & Heath Xone:43 is a 4+1 channel DJ mixer that offers analog audio quality, including the classic Xone filter with resonance control, 3 band EQ...
Learn More
Allen & Heath-Xone XONE-43 1
Allen & Heath-Xone XONE-43 2
Allen & Heath-Xone XONE-43 3
Allen & Heath-Xone XONE-43 4

Click a thumbnail to see more images. (5 total)

Our Price: $699.00
List Price: $999.00
You save 30%!
Write the first review.
Allen & Heath-Xone XONE-43
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

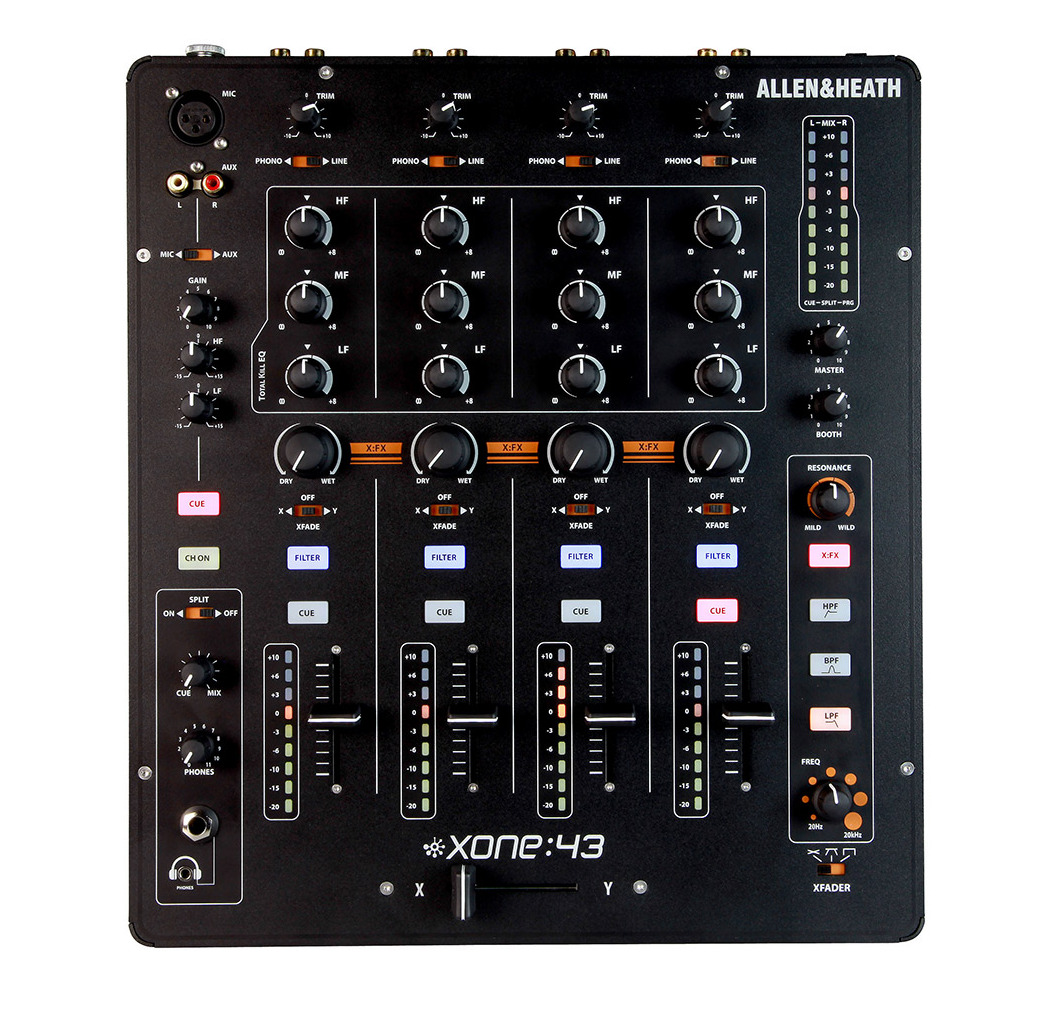

The Allen & Heath Xone:43 is a 4+1 channel DJ mixer that offers analog audio quality, including the classic Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favorite FX unit. It is an ideal mixer for DJs and electronic music purists alike.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to a custom Innofader for ultimate crossfader performance. With balanced XLR main outputs and independent booth and record outputs, Allen & Heath's Xone:43 excels in the club and in high end personal DJ setups.

Allen & Heath XONE:43 Features:

  • 4 channels with phono/line inputs
  • VCF Filter system – low-pass, high-pass and band-pass filters plus frequency and resonance controls
  • External FX loop (Send/Return) system with dry/wetcontrol per channel
  • Mic input on balanced XLR, with 2-band EQ
  • Balanced main mix out on XLR
  • Independent booth out
  • Record out
  • 3.5mm and 1/4? headphone outputs
  • Touring grade build quality
  • Super smooth VCA channel faders
  • User changeable crossfader
  • Innofader compatible
  • Crossfader curve switch
  • 20dB pro standard headroom
  • 9-segment signal level monitoring

Allen & Heath XONE:43 Specifications:

  • Nominal / Maximum Output Levels:
    • Main Mix: +4dBu to +27dBu
    • Booth: 0dBU to +22dBU
    • X:FX Send: 0dBU to +20dBu
    • Record Out: 0dBu to +20dBu
  • Internal Headroom: Channels +20dB
  • Frequency Response: +/-0.5dB 20Hz - 20 kHz
  • Distortion: <0.05% THD+noise @ 1kHz
  • Crosstalk: <-83dB inter-channel
  • Residual noise
    • Mix 1: -89dBu
    • Booth: -93dBu
    • X:FX: -77dBu
    • Rec: -92dBu
  • Mix noise
    • Mix 1: -82dBu
    • Booth: -84dBu
    • X:FX: -77dBu
    • Rec: -87dBu
  • Channel meters: Peak reading 9 LED -20dB to 10+dB
  • Main meters: Peak reading 9 LED -20dB to +10dB
  • Mic EQ: 2-Band +/- 12dB
  • Channel EQ: 3-Band +6dB/ total kill
  • Channel fader: 45mm stereo VCA, <-85dB shutoff
  • Crossfader: 45mm stereo VCA - replaceable
  • Filters: Stereo VCF, analogue
  • Consumption: 30W max
  • Dimensions: (W) 320mm x (H) 110mm x (D) 370mm
  • Weight: 5.1 kg
