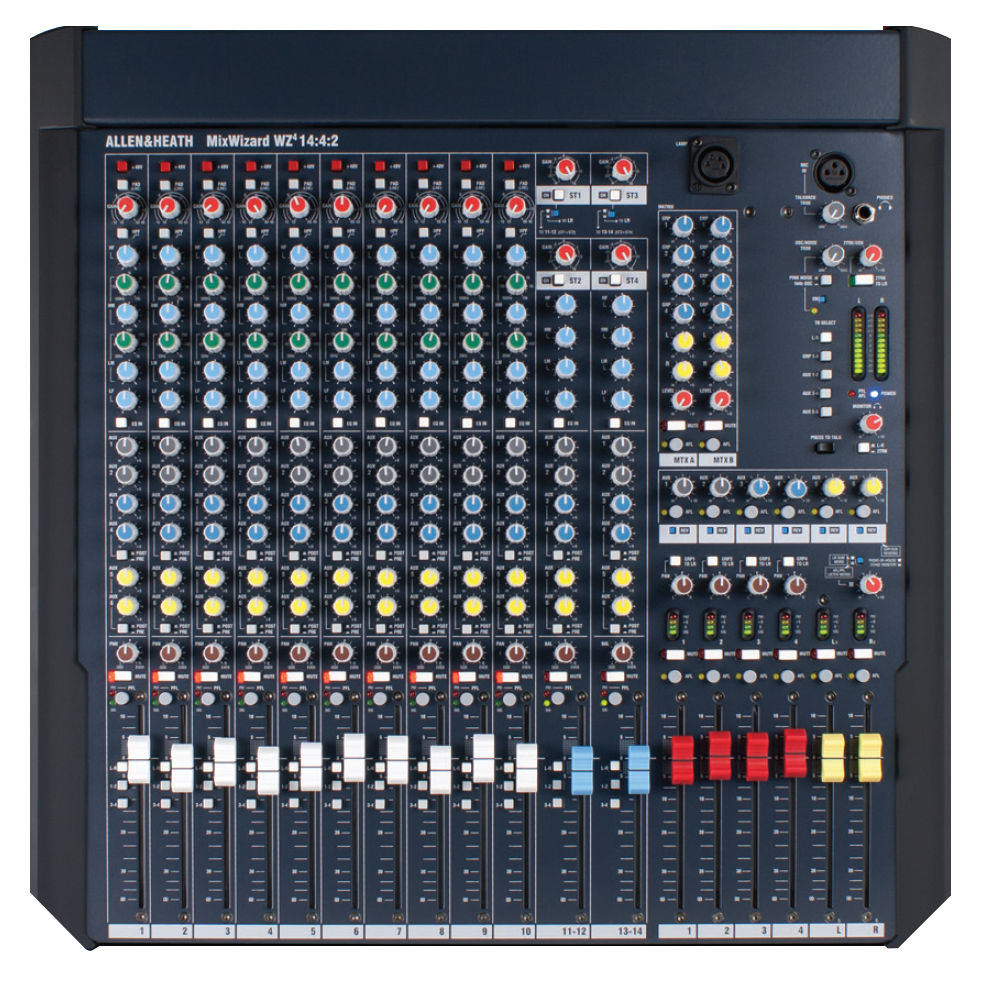

Allen & Heath MixWizard WZ4 14:4:2 10-Channel Analog Mixer

OUR PART #: WZ4-14-4 MFR #: AH-WZ414:4:2

Copied to clipboard

The Allen & Heath MixWizard WZ4 14:4:2 is a desk / rack mountable all purpose analog mixer that is equally at home at Front of House, on Monitors... ...Read more

Allen & Heath MixWizard WZ4 14:4:2 10-Channel Analog Mixer Image 1
Allen & Heath MixWizard WZ4 14:4:2 10-Channel Analog Mixer Image 2
Allen & Heath MixWizard WZ4 14:4:2 10-Channel Analog Mixer Image 3
Allen & Heath MixWizard WZ4 14:4:2 10-Channel Analog Mixer Image 4
Allen & Heath MixWizard WZ4 14:4:2 10-Channel Analog Mixer
Our Price: $2,099.99
List Price: $2,599.99
You save 19%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Allen & Heath MixWizard WZ4 14:4:2 is a desk / rack mountable all purpose analog mixer that is equally at home at Front of House, on Monitors, or doubling up to fill both roles at once. This 4th generation MixWizard console now has the option to fit a multichannel USB interface with a high quality 16 channel soundcard for easy multitrack recording and 2-track playback.

Other features of the WZ4 14:4:2 include A&H's acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and their unique QCC connector system for easy desktop, rack or flightcase mounting.

In FoH Mode, the 4 groups with inserts, 100mm faders and XLR outputs can be routed and panned to the LR mix for flexible sub-mixing. The main LR mix has inserts, separate left and right faders, and XLR outputs to feed the main speaker system. EQ and signal processing can easily be inserted on group and main outputs.

Features

  • 19″ Rack mountable
  • 10 mic/line inputs with balanced XLR/TRS jack, insert and direct output
  • 100mm faders
  • Reverse switches swap the function of the group and aux masters in Monitor or Dual Mode applications
  • 6 Aux sends – switchable pre/post fade
  • 4 Audio groups
  • 2 Dual Stereo inputs with separate gain and ‘ON’ switches allowing inputs to be selected independently or mixed together
  • 4 band EQ with 2 swept mids

Specifications

  • Maximum output level XLR +26dBu into 600 ohms max load
    • Jack +21dBu into 2k ohm max load
  • Internal headroom Channels +21dB
    • Mix +23dB
  • Meters 3 colour LED, quasi peak response
  • Sensitivity 0VU = +4dBu at XLR output
  • Master meters 12 segment -30 to +16dB
  • Channel meters 2 segment -12, +16dB (5dB before clip)
  • Frequency response 20Hz to 50kHz +/-0.5dB
    • THD+n at +10dBu 1kHz Channel to mix out < 0.004%
  • Crosstalk at 1kHz Fader shutoff >90dB
    • Mute shutoff >90dB
    • Inter channel >90dB
  • Noise, rms 22Hz to 22kHz Mic EIN -127dB
    • Residual output noise
    • LR unity fader mix noise < -84dBu (-88dBS/N)
    • Group unity fader noise < -90dBu (-94dB S/N)
  • Channel HPF 12dB/octave below 80Hz
  • Mono EQ HF Shelving, +/-15dB, 12kHz
    • HM Peak/dip, +/-15dB, 500Hz to15kHz, Q=1.8
    • LM Peak/dip, +/-15dB, 35Hz to 1kHz, Q=1.8
    • LF Shelving, +/-15dB, 80Hz
  • Stereo EQ HF Shelving, +/-15dB, 12kHz
    • HM Peak/dip, +/-15dB, 2.5kHz,Q=1.8
    • LM Peak/dip, +/-15dB, 250Hz, Q=1.8
    • LF Shelving, +/-15dB, 80Hz
  • Power supply 100-240V, 50/60Hz auto sensing, IEC input
  • Power consumption 45W max
  • Mains fuse T630mA L 20mm
  • Free standing dimensions 20 W x 20.9" D x7.7" H
  • Rack mounted (Underside connectors): 19" W x 4.8"D x 17.5" H, 10U
  • Rack mounted (Rear connectors): 19" W x 7.6" D x19.6" H, 11.2U
  • Weight W4-1442 unpacked 13kg (28lbs)
