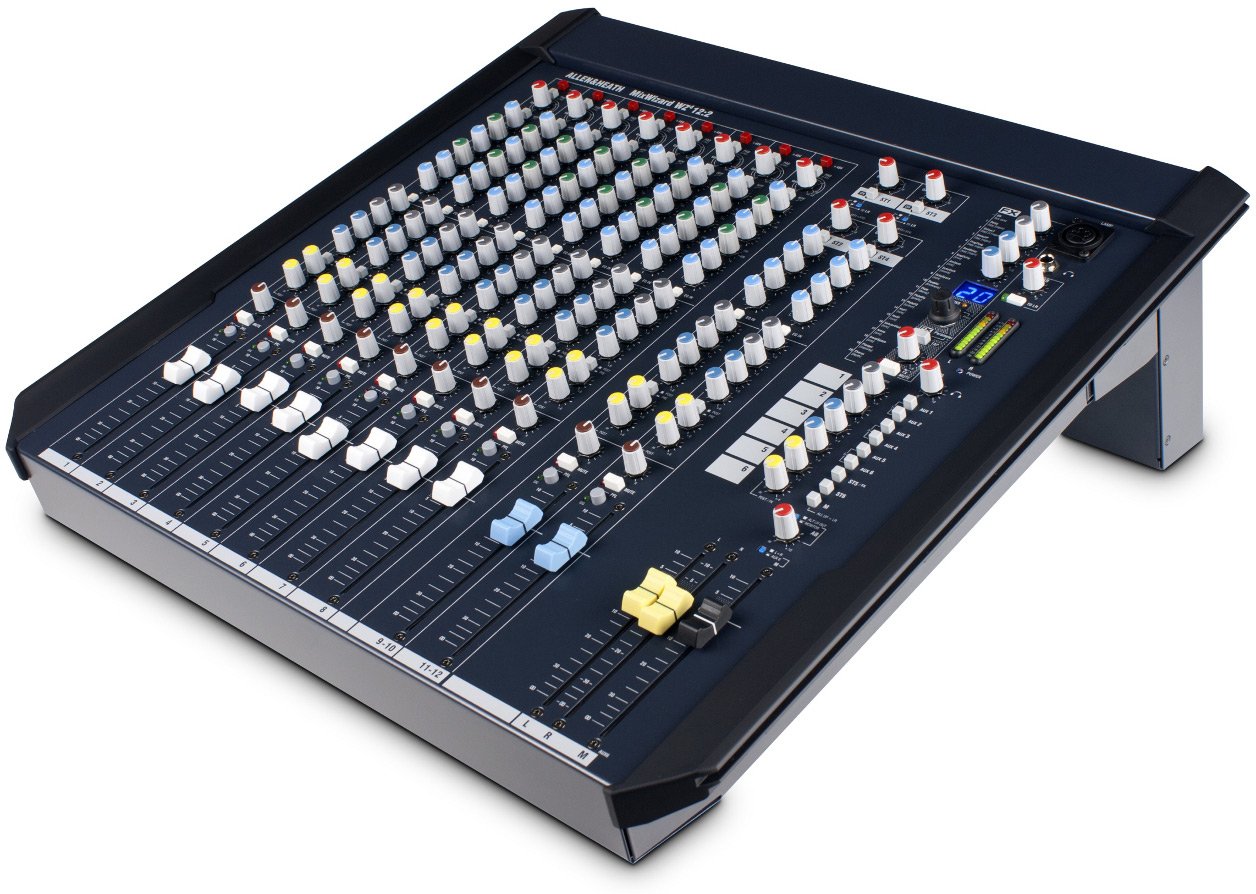

Allen & Heath WZ4-12-2
12 Channel Desk and Rack Mountable Mixer

OUR PART #:  WZ4-12-2

The Allen & Heath MixWizard4 WZ4 12:2 is your ideal companion for those scenarios where you don’t need masses of channels...
Learn More
Our Price: $899.00
List Price: $1,099.00
Call for Special Sale Price!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Allen & Heath WZ4-12-2
Qty:
In Stock

Similar Products

The Allen & Heath MixWizard4 WZ4 12:2 is your ideal companion for those scenarios where you don’t need masses of channels, but you still need to deliver superb audio quality. The 2 dual stereo channels are perfect for stereo playback or for hooking up keyboards and other stereo instruments.

WZ4 12:2 features our acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and our unique QCC connector system for easy desktop, rack or flightcase mounting.

New features for this 4th generation MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets, EQ in/out switching and the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback.

If you're looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.

Allen & Heath MixWizard4 WZ4 12-2 Features:

  • 19" Rack mountable
  • 8 mic/line inputs with balanced XLR/TRS jack, insert and direct output
  • 100mm faders
  • 2 Dual Stereo inputs with separate gain and ‘ON’ switches allowing inputs to be selected independently or mixed together
  • 4 band EQ with 2 swept mids
  • 6 Aux sends - 2x pre fade / 2x switched / 2x postfade (can be reconfigured with internal jumpers)
  • 2 Stereo returns
  • Dedicated mono output fader - can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
  • Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
  • Tri-colour, 12 segment bargraph metering
  • Twin FX engines with 20 studio quality FX presets
  • +48V Phantom Power
  • Signal and Peak LEDs
  • Talkback Mic XLR with trim
  • Lamp socket
  • USB multitrack recording option
  • Footswitch connector (mutes/unmutes the ST1 FX Return)

Allen & Heath MixWizard4 WZ4 12-2 Specifications:

  • Maximum output level:
    • XLR +26dBu into 600 ohms max load
    • Jack +21dBu into 2k ohm max load
  • Internal headroom:
    • Channels +21dB
    • Mix +23dB
  • Meters 3 colour LED, quasi peak response
  • Sensitivity 0VU = +4dBu at XLR output
  • Master meters 12 segment -30 to +16dB
  • Channel meters 2 segment -12, +16dB (5dB before clip)
  • Frequency response 10Hz to 30kHz +/-0.5dB
  • THD+n at +10dBu 1kHz Channel to mix out < 0.004%
  • Crosstalk at 1kHz
    • Fader shutoff >90dB
    • Channel mute>90dB
    • Inter channel >90dB
  • Noise, rms 22Hz to 22kHz:
    • Mic EIN -127dB
    • Residual output noise <-95dBu (-99dB S/N)
    • LR unity fader mix noise < -83dBu (-87dB S/N)
  • Channel HPF 12dB/octave below 80Hz
  • Mono EQ HF Shelving, +/-15dB, 12kHz:
    • HM Peak/dip, +/-15dB, 500Hz to15kHz, Q=1.8
    • LM Peak/dip, +/-15dB, 35Hz to 1kHz, Q=1.8
    • LF Shelving, +/-15dB, 80Hz
  • Stereo EQ HF Shelving, +/-15dB, 12kHz:
    • HM Peak/dip, +/-15dB, 2.5kHz,Q=1.8
    • LM Peak/dip, +/-15dB, 250Hz, Q=1.8
    • LF Shelving, +/-15dB, 80Hz
  • Power supply:
    • 100-240V, 50/60Hz auto sensing, IEC input
    • Power consumption 45W max
    • Mains fuse T630mA L 20mm
  • Free standing dimensions: 20" W x 20.9" D x 7.7" H
  • Rack mounted (Underside connectors): 19" W x 4.8" D x17.5" H, 10 RU
  • Rack mounted (Rear connectors) 19" W x 7.6" D x 19.6" H 11.2 RU
  • Weight W4-122 unpacked 11 kg (24 lbs)
