AADYN TECHNOLOGY, LLC JAB Hurricane Kit 1
JAB Series Kit for Hurricane Fixture

OUR PART #:  KIT-HUR-001

This is one of a variety of kits are available for the JAB Series LED Fixture.
Learn More

Call for price! Not available online.
List Price: $6,600.00

Similar Products

This is one of a variety of kits are available for the JAB Series LED Fixture. Each of the AAdynTech Kits includes a professional, rugged ATA rated MIL-Spec road case with wheels & handle for easy transport. Along with the road case and fixture comes a barndoor and battery jumper cable.

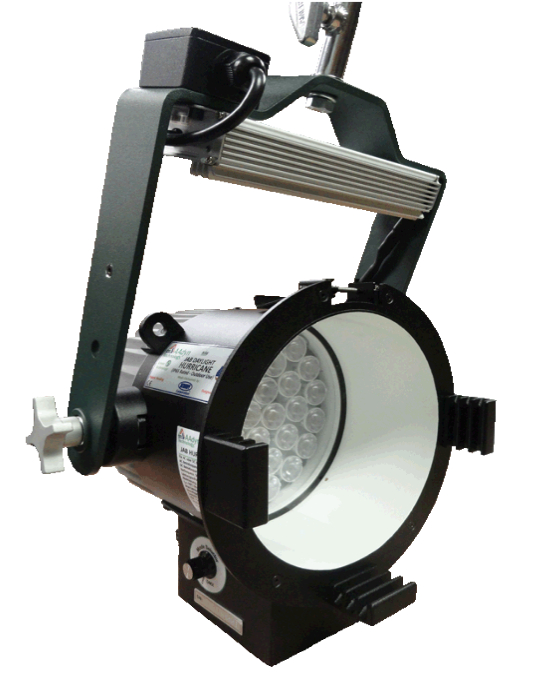

The AAdynTech JAB Hurricane is the most powerful compact all-weather IP65 rated LED fixture available on the  market today. It delivers an impressive 2,360 fc @ 10 feet while consuming only 1.77 amps at full power and can also be operated via 28.8 volt DC battery power making it ideal for any remote production where power is limited. The IP65 rating totally protects the Hurricane from dust and water from any direction. The JAB Hurricane boasts fan-less convection cooling and flicker-free operation up to 12,000 frames per second. High optical efficiency provides a single light-source, eliminating multiple shadows, and quick change lenses vary the beam angle between spot, medium and flood while maintaining a flat, even illumination field. Passive convection cooling provides silent operation and instant ON at all times ensures no warm-up wait time on set.

The IP65 Hurricane has a Daylight CCT of 5600K, and compliments the AAdynTech JAB Series which is available in four other models; standard Daylight, Tungsten, Variable and Daylight High Speed (100,000 fps) to fit your creative needs without sacrificing output or color-temperature. The Hurricane as well as the entire Jab Series can be controlled manually via local on-board controls, DMX or AAdynTech’s optional wired UIM Digital Remote. The UIM for the Hurricane is also rated at IP65 for outdoor use. The JAB Hurricane is offered standalone or as several complete Kits all of which include a weather-proof molded ATA Mil-Spec road case with wheels/handle and various accessory components. A host of options for the Hurricane are available including; barn doors, speed ring, light bank, filters and more. For those tough field assignments in driving rain, a winter blizzard or where available power is questionable, the JAB Hurricane is the only professional choice.

AAdynTech JAB Hurricane Kit 1 Includes:

  • JAB Hurricane LED Fixture
  • Mil-Spec Weatherproof Molded Road Case with Wheels and Handle
  • Barn Door
  • 12" ConxAll Connector to Bare End DC Battery Jumper Cable

Aadyn Technology JAB Hurricane Features:

  • Weatherproof – IP65 rated
  • 5600K CCT
  • 2,360 foot-candles at 10ft.
  • No UV or IR emissions on talent
  • Draws only 1.77 amps at full output
  • Auto range voltage – 90/240 VAC – 50/60Hz
  • Run on 28.8v DC power for hours w/ battery source
  • Up to 90% energy savings
  • Precise brightness control w/ variable dimming curve
  • No color shift with flat even field
  • Single light source eliminates multiple shadows
  • Flicker-free up to 12,000 fps
  • No heat generation – operates cool to the touch
  • Convection cooled – no fans – runs silent
  • Douse button (momentary off)
  • Included 5°, 15°, 30°, 55° lenses to vary beam angle
  • No head cables, ballast or spare lamps
  • Local onboard control and DMX w/ DMX loop-thru
  • 5-pin XLR DMX In/Out & PowerCon AC Cable
  • Optional UIM Digital Remote (IP65 weatherproof)
  • Programmable multiple lightning and strobe effects (with UIM)
  • Multiple user memory storage with recall (with UIM)
  • 2-year warranty on the fixture
  • Operating temperature at -4° F to 122° F / -20c to +50c
  • Certified UL, ETL, CSA, CE & RoHS compliant
  • USA & International Patent Pending

Aadyn Technology JAB Hurricane Specifications:

  • Control:
    • Local
    • UIM
    • DMX
  • Source: LED,5600°K
  • Life Expectancy: 60,000 Hours
  • Cooling: Passive
  • Mounting: BabyPin
  • Certifications:ETL, UL, CSA, CE and RoHS Compliant
  • Dimensions:
    • Length: 13.3" (339.0 mm)
    • Width: 12.9" (326.5 mm)
    • Height: 21.8" (554.9 mm)
    • Weight: 19.5 lbs (8.9 kg)
  • Power:
    • Input Voltage:
        • 100-277v AC
        •  Battery (30v DC)
    • Input Freq: 50/60 Hz
    • Input Current:
      • 1.77 Amp at 120V
      •  212 Watts at full
    • Connection: Conxall #7382-4PG-300
  • Height: 21.8"(554.9 mm)
  • Weight: 19.5 lbs(8.9 kg)
  • Power:
    • Input Voltage:
      • 100-277v AC
      • Battery (30v DC)
    • Input Freq: 50/60 Hz
    • Input Current:
      • 1.77 Amp at 120V
      • 212 Watts at full
    • Connection: Conxall #7382-4PG-300
