Avid SRI (Stage Rack Input) Card [RESTOCK ITEM]
for VENUE Stage Rack with 8 Analog XLR Inputs

OUR PART #:  SRI-192-RST-01

Sale Price: $2,141.44
List Price: $2,195.00
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Avid SRI (Stage Rack Input) Card [RESTOCK ITEM]
Qty:
In Stock
Similar Products

Analog Output Card for Stage Rack

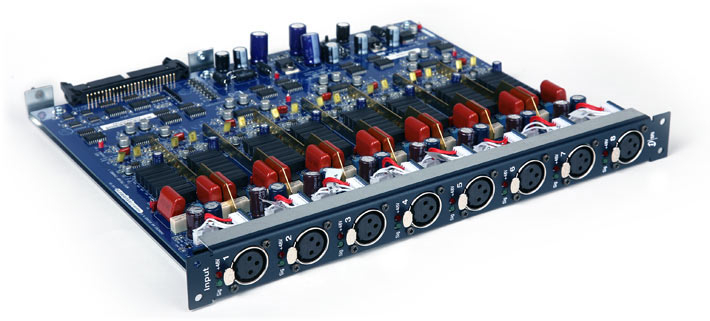

Expand your D-Show or Profile System with additional analog line intputs. The SRI (Stage Rack Input) Card is an option for the Stage Rack that adds eight channels of software-controlled, fully recallable analog mic/line inputs through XLR connectors.

You can install up to six SRI Cards into a single Stage Rack for a total of 48 analog line input channels, or mix and match with other Stage Rack option cards to customize your output.

The SRI (Stage Rack Input) Card is an option for the VENUE Stage Rack that provides eight channels of analog line outputs via XLR connectors for your Digidesign® VENUE system. You can install up to six SRI Cards into a single Stage Rack for a total of 48 analog line input channels, or mix and match with other Stage Rack option cards to customize your input.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Avid SRI Features:

  • Eight channels of analog mic/line-level inputs through XLR3-female connectors
  • 24-bit sigma-delta analog-to-digital (A/D) converters
  • 20 dB pad (selectable per channel using VENUE software)
  • 48V phantom power (selectable per chanel in VENUE software)
  • Signal presence and phantom power LEDs
  • Polarity invert (selectable per channel using VENUE software)

Avid SRI Specifications:

  • Analog Mic/Line Intputs
    • Connector (x8): XLRF, balanced
    • Gain: +10 dB to +60 dB (6 dB analog steps, with 0.1 dB digital increments and crossfade at analog relay switch point)
    • Maximum Input Level: +34 dBu (pad ON)
    • Pad: 20 dB
    • Input Impedance: pad OFF: 10k Ohm balanced; pad ON; 4k Ohm balanced
    • Phantom Power: +48V
    • EIN: -126 dBu (maximum gain, 150 Ohm source, 22 Hz - 20 kHz BW, unweighted)
    • THD + N: 0.003% minimum gain, pad OFF, -1 dBFS output, 20 Hz - 20 kHz BW)
    • A/D Converter Latency: 0.25 ms (Fs = 48 kHz)

NOTE: All measurements at Fs = 48 kHz, with 150 Ohm source impedance and 600 Ohm load impedance, unless otherwise specified. For more information on this and other products, please contact your Sales Representative.
