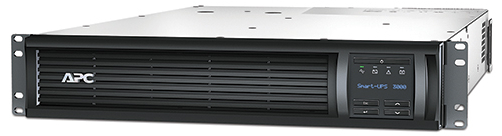

American Power Conversion SMT3000R2X180
APC Smart-Ups 3000VA LCD RM 2U 120V with NMC Installed and Ethernet, USB

OUR PART #:  SMT3000R2X180

Keep your critical systems up and running with the American Power Conversion SMT3000R2X180 Smart-UPS (Uninterruptible Power Supply) for installation.
Learn More
Our Price: $1,643.20
List Price: $2,280.00
You save 28%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

American Power Conversion SMT3000R2X180
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Keep your critical systems up and running with the American Power Conversion SMT3000R2X180 Smart-UPS (Uninterruptible Power Supply) for installation. Its innovative and feature-rich design (see below!) allows for easy, quick installation, and includes hot-swappable batteries-providing uninterrupted and clean power to connected/protected gear during the time that batteries are replaced. It also comes with automatic self-testing that offers early indication of a battery needing replacement and much more.

American Power Conversion SMT3000R2X180 Features:

  • Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Audible alarms - Provides notification of changing utility power and UPS power conditions.
  • Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Boost and Trim Automatic Voltage Regulation (AVR) - Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.
  • Disconnected battery notification - Warns when a battery is not available to provide backup power.
  • Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
  • Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • LED Indicators - Provide easy-to-read status of the unit and utility power conditions.
  • Network manageable - Provides remote power management of the UPS over the network.
  • Outlet group control - Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
  • Predictive failure notification - Provides early-warning fault analysis ensuring proactive component replacement.
  • Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
  • Sequenced network shutdown and reboot - Customize network shutdown and reboot sequence of connected servers and UPSs.
  • Serial connectivity - Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, contact your Sales Pro. Crestron and AMX installers should also contact their Sales Pro for information on how to integrate the S20 into those networks.
  • Sine wave output - Eliminates humming and heat generated when powering tubelights and fans.
  • Single switched outlet group - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • StruxureWare Central compatible - Enables centralized management via StruxureWare Central.
  • Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
  • USB connectivity - Provides management of the UPS via a USB port.
  • User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

American Power Conversion SMT3000R2X180 Specifications:

Output

  • Output power capacity: 2.7 KWatts / 3.0 kVA
  • Max Configurable Power: 2.7 KWatts / 3.0 kVA
  • Nominal Output Voltage: 120V
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Topology: Line Interactive
  • Waveform type: Sine wave
  • Output Connections:
    • (2) NEMA 5-20R (Battery Backup)
    • (6) NEMA 5-15R (Battery Backup)
  • Transfer Time: 4ms typical/8ms maximum

Input

  • Nominal Input Voltage: 120V
  • Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: NEMA L5-30P
  • Cord Length: 8 ft ( 2.44 meters )
  • Input voltage range for main operations: 82 - 144 V
  • Input voltage adjustable range for mains operation: 75 - 154 V
  • Number of Power Cords: 1

Batteries & Runtime

  • Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
  • Typical recharge time: 3 hour(s)
  • Replacement Battery: RBC43
  • RBC Quantity: 1
  • Battery Volt-Amp-Hour Capacity: 566
  • Runtime:
    • Based on 120V:
      • Full: 3 min (2700 Watts)
      • Half: 12 min (1350 Watts)
      • Refer to Runtime Graph under "Documentation" Tab
  • Efficiency: Refer to Efficiency Graph under "Documentation" Tab

Communications & Management

  • Interface Port(s): USB
  • Pre-Installed SmartSlot™ Cards: AP9630
  • Control panel: LED status display with On Line: On Battery: Replace Battery and Overload indicators, Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery: distinctive low battery alarm/overload continuous tone alarm

Surge Protection and Filtering

  • Surge energy rating: 459 Joules

Physical

  • Dimensions: 3.39" H x 18.9" W x 26.89" D ( 8.6 x 48.0 x 68.3cm)
  • Rack Height: 2 U
  • Net Weight: 97.42 lbs. ( 44.28 kg )
  • Shipping Weight: 113.74 lbs. ( 51.7 kg )
  • Shipping Dimensions: 10.0" H x 23.62" W x 38.6" D (25.4 x 60.0 x 98.0cm)
  • Color: Black

Environmental

  • Operating Environment: 32 - 104 °F (0 - 40 °C)
  • Operating Relative Humidity: 0 - 95 %
  • Operating Elevation: 0-10000 ft (0-3000 meters)
