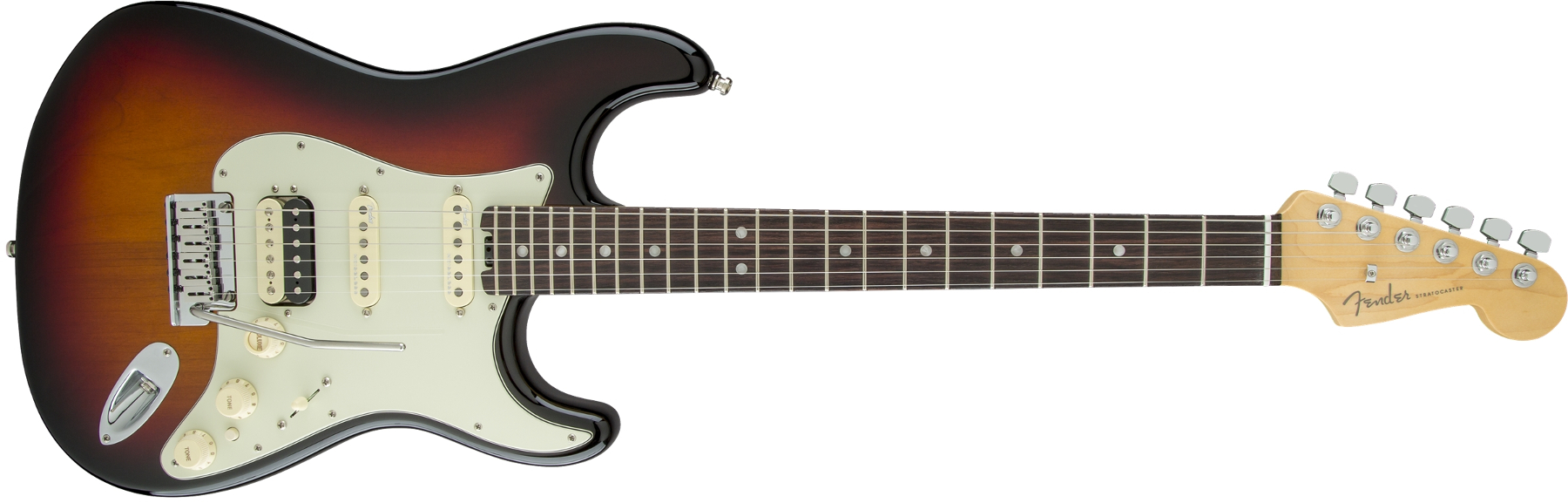

Fender American Elite Stratocaster HSS Shawbucker
Electric Guitar, 22-Fret, Rosewood


Fender's American Elite Stratocaster HSS Shawbucker has a series of modern features with a traditional visual style.
Learn More
Selected Model Price: $1,949.99
Call for Special Sale Price on
Selected Model!
Write the first review.
Fender American Elite Stratocaster HSS Shawbucker
Select a Model: (shipping times are approximate)
Special Order Item

Related Products

Fender's American Elite Stratocaster HSS Shawbucker has a series of modern features with a traditional visual style. The American Elite Series is equipped with a new compound neck profile designed for comfort and playability. A modern "C"-shape at the nut, the profile morphs along the length of the neck to a modern "D"-shaped profile at the updated neck heel for better support.

The all-new 4th generation Noiseless pickups, exclusive to the American Elite Series, offer authentic vintage-style Fender sound combined with noise-free performance for crisp, clear tones. The S-1 switch placed atop the volume control activates alternate wiring for even more tonal variation options.

Fender American Elite Stratocaster HSS Shawbucker Features:

  • Double cutaway electric guitar
  • Two all-new fourth generation Noiseless single-coil Stratocaster pickups; single Shawbucker open-coil humbucking bridge pickup
  • Push-push switch enables “passing lane” mode
  • Compound profile neck; redesigned contoured neck heel
  • 9.5”-14” compound radius fingerboard
  • Locking short-post tuning machines; speedy soft-touch control knobs
  • Includes redesigned ABS Elite Molded Case with TSA locks

Fender American Elite Stratocaster HSS Shawbucker Specifications:

  • Body
    • Body Material: Alder
    • Body Finish: Gloss Polyurethane
    • Body Shape: Stratocaster®
  • Neck
    • Neck Material: Maple
    • Neck Finish: Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
    • Neck Shape: Compound Back Shape, Modern "C" to "D"
    • Scale Length: 25.5" (648 mm)
    • Fingerboard Material: Rosewood
    • Fingerboard Radius: 9.5"-14" Compound Radius (241 mm-355.6 mm)
    • Number of Frets: 22
    • Fret Size: Medium Jumbo
    • Nut Material: Synthetic Bone
    • Nut Width: 1.685" (42.8 mm)
    • Position Inlays: Large Pearloid Dots
    • Truss Rod: Dual-Action
    • Truss Rod Nut: Heel-Mounted Spoke Wheel Adjustment
  • Electronics
    • Bridge Pickup: Shawbucker™
    • Middle Pickup: New 4th Generation Noiseless
    • Neck Pickup: New 4th Generation Noiseless
    • Controls:
      • Master Volume (with S-1™ Switch)
      • Tone 1. (Neck Pickup)
      • Tone 2. (Middle and Bridge Pickups)
    • Switching:
      • S-1 Switch Up:
        • Position 1. Bridge Pickup.
        • Position 2. Bridge/Middle Pickup.
        • Position 3. Middle Pickup.
        • Position 4. Middle and Neck Pickup.
        • Position 5. Neck Pickup
    • Configuration: HSS
    • Special Electronics: Push-Push Passing lane switch to engage Bridge Pickup and bypass tone controls
  • Hardware
    • Bridge: 2-Point Deluxe Synchronized Tremolo with Pop-In Arm
    • Hardware Finish: Chrome
    • Tuning Machines: Deluxe Cast/Sealed Locking (all short posts)
    • Pickguard: 3-Ply Mint Green
    • Control Knobs: Aged White Soft Touch Knobs
    • Switch Tip: Aged White
    • Neck Plate: 4-Bolt Asymmetrical
  • Miscellaneous
    • Strings: Fender USA, NPS, (.009-.042 Gauges)
  • Accessories:
    • Case/Gig Bag: Elite Molded Case
