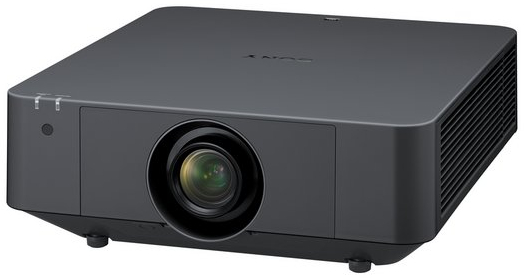

Sony VPL-FHZ57/B
4100 Lumens WUXGA Laser Projector in Black

OUR PART #  VPLFHZ57/B

Call for price! Not available online.


Recommended Accessories

The Sony VPL-FHZ57/B brings forth Sony's next generation of the successful Z-Phosphor projector illumination technology. It provides 4100 lumens of brightness along with 10,000:1 contrast ratio for high-performance in demanding applications, and uses Sony's latest in image processing technology for exceptional image quality. Its Z-phosphor technology and self-cleaning filter deliver virtually maintenance-free operation for about 20,000 hours, giving you peace of mind. The VPl-FHZ57/B includes a powered zoom lens and 4 other lens options (all sold separately) which cover a wide array of installation requirements, plus its large lens shift range ensures smooth, flexible installation. Versatile input connections include HDMI, DVI, and analog RGB with both an analog and digital monitor out, as well as simple 1-cable connection via a standard HDBaseT input. This version features a black housing; also available in white.

Sony VPL-FHZ57/B Includes:

  • VPL-FHZ57/B Unit (1)
  • RM-PJ27 Remote Commander (1)
  • Size AA Battery (2)
  • AC Power Cord (1)
  • Cable ties (2)
  • Quick Reference Manual (1)
  • Operating Instructions (CD-ROM)
  • Warranty Card (1)

Sony VPL-FHZ57/B Feature Highlights:

  • Outstanding picture quality
  • 4100 lumens 3 LCD
  • Native WUXGA (1920 x 1200)
  • 10000:1 Contrast Ratio
  • Ground-breaking laser light source
  • Up to 20,000hr maintenance-free design
  • Versatile inputs including HDMI and DVI-D
  • RJ45 for network control
  • Up to V : +60% -0%, H : +/-32% Optical Lens Shift
  • Tilt angle free
  • Built-in Edge blending
  • Advanced Geometric Correction
  • Vertical and Horizontal Keystone correction : Max +/-30%
  • Equipped with Bright Era 3LCD Panels
  • 12-bit 3D Digital Gamma
  • Near instantaneous power-on
  • Auto light dimming for intelligently saving energy consumption
  • Designed to blend in visually
  • Picture by Picture Image Projection
  • DICOM GSDF Simulation Gamma Mode
  • Crestron RoomView Connected™
  • HG (Mercury) free
  • Full-range of Optional Lenses (sold separately)

Sony VPL-FHZ57/B Specifications:

  • Optical:
    • Image Device: 3 LCD
    • Color Light Output:
      • 4100 lumens (light output mode: high)
      • 3000 lumens (standard)
    • Light Output:
      • 4100 lumens (light output mode: high)
      • 3000 lumens (standard)
    • Contrast Ratio: 10,000:1
    • Projection Lens: (Approx.) 1.6x Powered zoom / Powered focus
    • Throw Ratio: 1.39 to 2.31
    • Screen Coverage: 60" to 600"
  • Video:
    • Native Resolution: 1920 x 1200
    • Color System: NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
    • Acceptable Computer Signals: Maximum display resolution : 1920 x 1200 dots
  • Connectivity/Interfacing/Control:
    • Input/Output:
      • Analog RGB/Component In: 15-pin HD
      • Digital In: HDMI and DVI
    • Network: RJ45 and HDBaseT
    • Monitor Out: 15-Pin HD and DVI
    • Remote Control: RS232C and IR
  • Electrical:
    • Power Requirements: 100 - 240 V
    • Power Consumption: 308 W
  • General:
    • Housing Color: Black
    • Dimensions: 18-1/8" W x 6-3/5" H x 20-3/8" D
    • Weight: 16 kg
    • Fan Noise: 32db
