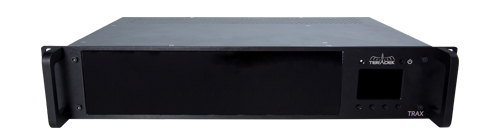

Teradek T-RAX Base Rack System
Chassis with Controller

OUR PART #  TER-TRAX-1100

Our Price: $1,990.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Teradek T-RAX Base Rack System is part of Teradek's versatile digital video broadcasting enterprise solution, providing a platform for high-density encoding/decoding. This is the expandable base unit chassis that includes the Controller Card, but Encoder/Decoder cards will need to be purchased separately. Because it's a blade system, up to 8 hot-swappable cards can be installed to custom-fit your needs, and at a moment's notice. It's the easiest way to scale an IP video workflow, whether you're outfitting it with 8 encoder cards for multiple bit-rate streaming or adding a combination of encoders, decoders, and Sputnik for master control.

Setting up and monitoring your T-RAX is incredibly simple thanks to its unified control interface and 2.8" graphical display, plus it's also compatible with Core, a cloud-based encoder fleet management system that provides an easy-to-use drag and drop workflow for simple video routing.

Based on Teradek's award-winning Cube family, the encoder and decoder cards (all sold separately) utilize the HD-SDI I/O located on the back panel of the T-RAX chassis. Supporting High Profile H.264 video at bit-rates up to 15Mbps, the encoder cards are also compatible with a host of the most popular transport protocols, including MPEG-TS, RTP/RTSP, HLS, RTMP, TDS, and ZiXi.

*Note: Decoder cards only provide support for RTSP and MPEG-TS.

Note: Cards shown in picture above are sold separately

Teradek T-RAX Base System Includes:

  • T-RAX Base Rack Unit
  • Controller Card
  • T-RAX Power Supply Unit
  • IEC Cable
  • Limited 1-Year Warranty

Teradek T-RAX Base System Technical Specifications:

  • Video Inputs: HD-SDI, SD-SDI
  • Supported Resolutions:
    • 1080p 23.98/24/25/30
    • 1080i 50/59.94/60
    • 1080PsF 23.98/24/25
    • 720p 50/59.94/60
    • 576p/i
    • 480p/i
  • Video Codec:
    • Compression Algorithm: Baseline, Main, and High Profile H.264
    • Main and Baseline profiles:
      • Bit Rate: 250 Kbps to 10 Mbps
  • Built-in Video Scaler and Deinterlacer
  • Protocol Support:
    • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
    • Transport Protocols: RTP, RTSP, RTP, RTMP over HTTP, MPEG-TS
  • Audio: Audio Compression: AAC-LC, MPEG Layer 2 Embedded Audio Input
  • Physical:
    • Dimensions: 2RU
    • Weight: 4Kg
  • Interfaces:
    • Feature-rich Web UI for configuration and control
    • OLED LCD Display with joystick
    • Navigation buttons: On/Off and Reset Switch
    • Micro SD
    • Powered USB 2.0 host port
  • Network: Ethernet: 10/100BASE-T
  • Power: 110/240V AC Power input
  • Nominal Power Consumption: 5W + 3W per Board
