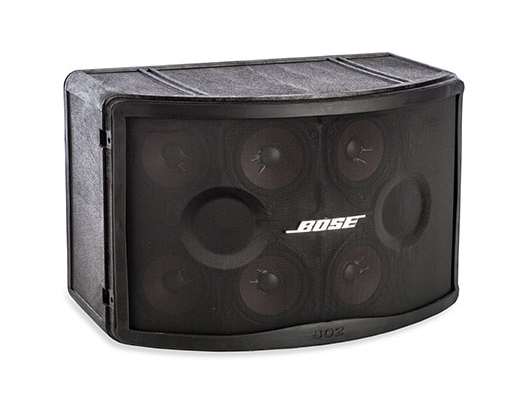

Bose 802-IV
Indoor/Outdoor Installed Full RangeSpeaker

OUR PART #:  802-IV

The Panaray 802 installed sound-reinforcement loudspeaker features a full-range-driver array, eliminating the need for tweeters and crossovers...
Learn More

Call for price! Not available online.

Similar Products

The Panaray 802 installed sound-reinforcement loudspeaker features a full-range-driver array, eliminating the need for tweeters and crossovers, to provide unsurpassed reliability and vocal clarity.  The Articulated Array design, with wide 120° x 100° coverage, can reduce the number of required loudspeakers, while the 52-Hz low- frequency range can reduce the need for subwoofers, providing a cost-effective solution for many indoor or outdoor installed sound-reinforcement applications.

Bose Panaray 802 Features:

  • Full-Range-Driver Array eliminates tweeters andcrossovers for unsurpassed reliability in harsh environments and vocal clarity
  • 8x Bose 4.5-inch full-range drivers for legendaryreliability
  • 120° x 100° Articulated Array design covers a verywide area, which can reduce the number of loudspeakers required
  • 52 Hz - 15 kHz Frequency Range eliminates need forsubwoofers for moderate full-range music levels
  • 123 dB Peak SPL for sound-reinforcement and foregroundmusic
  • Rugged, lightweight enclosure with threaded inserts foreasy installations
  • Weather-Rated Design for indoor or outdoorinstallations
  • Requires Active Equalization

Bose Panaray 802 Specifications:

  • Frequency Range (-10 dB): 52 Hz - 15 kHz
  • Nominal Coverage Pattern (H x V): 120° H x 100° V
  • Long-Term Power Handling:
    • Bose extended-lifecycle test4: 240 W
    • AES transducer test5: 300 W
  • Power Handling, Peak:
    • Bose extended-lifecycle test4: 960 W
    • AES transducer test5: 1200 W
  • Sensitivity (SPL / 1 W @ 1 m): 92 dB SPL
  • Calculated Maximum SPL @ 1 m
    • Bose extended-lifecycle test4: 116 dB SPL
    • AES transducer test5: 117 dB
  • Calculated Maximum SPL @ 1 m, peak:
    • Bose extended-lifecycle test4: 122 dB
    • AES transducer test5: 123 dB
  • Nominal Impedance: 8 Ohms
Panaray IV U-Bracket for 802 Series Loudspeakers
Bose WCB802IV Panaray IV U-Bracket for 802 Series Loudspeakers
The Bose WCB802IV is a panaray IV U-bracket for the 802 Series.
