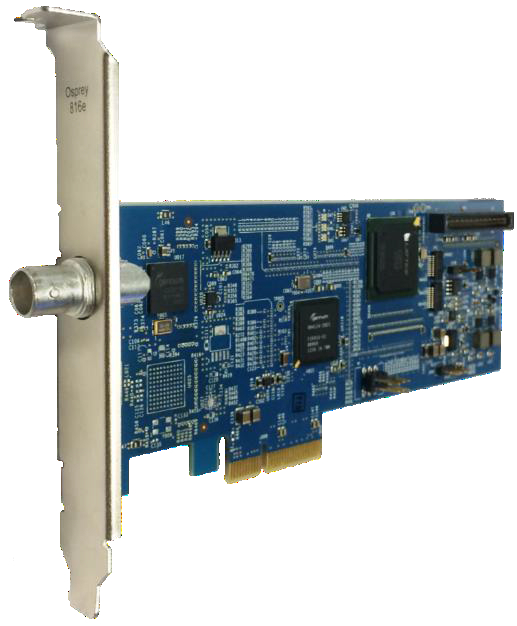

Osprey Video 816e
Single Input 3G SDI or DVB-ASI Video Capture Card

OUR PART #  95-00495

Our Price: $1,340.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Osprey 816e is ideal for high-density applications and features a single highly configurable input that can accept four input formats – 3G SDI, HD SDI, SD SDI, and DVB-ASI MPTS/SPTS (Windows only).

Osprey SimulStream®
A standard feature on all Osprey 800 series cards, SimulStream allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption, and overlays facilitating simultaneous deliver to multiple applications.

Signal Loss
In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones,. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.

Osprey Video 816e Specifications:

  • Description: One channel SDI HD/SD DVB-ASI
  • Format:
    • PCI Express (x 4): Slots x4, x8, x16
    • PCIe 1.1
  • Video Input:
    • 3G SMPTE 424M
    • HD SMPTE 292M
    • SD SMPTE 259M
    • DVB-ASI
  • Video Connector: SDI (BNC)
  • Video Modes:
    • 1080i 50, 59.94, 60
    • 1080p 23.98, 24, 25, 29.97, 30
    • 720p 23.98, 24, 25, 29.97, 50, 59.94, 60
    • 720x480 29.97, 30/i (NTSC)
    • 720x576 25/i (PAL)
    • 720x576 25, 50/p
    • 3G SDI:
      • 1080p 50, 59.94, 60
  • Audio Input: Embedded SDI – 4 stereo pairs
  • Available Drivers: Microsoft Windows, Linux
  • Dimensions: 6.60" L x 2.71" H (16.76 cm L x 6.88 cm H)
  • Weight: ~ 70 g
  • Power Consumption: 6.3 W
  • Environment:
    • Operating Temperature Range: 0° to 40° C
    • Storage Temperature Range: -40° to +75°C
    • Relative Humidity Operating: Between 5% and 80% (noncondensing)
    • Relative Humidity Non-Operating: 95% RH (noncondensing); gradient 30% per hour

Click to download

Osprey Video 816e
Single Input 3G SDI or DVB-ASI Video Capture Card

OUR PART #  95-00495

Product Information:

The Osprey 816e is ideal for high-density applications and features a single highly configurable input that can accept four input formats – 3G SDI, HD SDI, SD SDI, and DVB-ASI MPTS/SPTS (Windows only).

Osprey SimulStream®
A standard feature on all Osprey 800 series cards, SimulStream allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption, and overlays facilitating simultaneous deliver to multiple applications.

Signal Loss
In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones,. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.

Osprey Video 816e Specifications:

  • Description: One channel SDI HD/SD DVB-ASI
  • Format:
    • PCI Express (x 4): Slots x4, x8, x16
    • PCIe 1.1
  • Video Input:
    • 3G SMPTE 424M
    • HD SMPTE 292M
    • SD SMPTE 259M
    • DVB-ASI
  • Video Connector: SDI (BNC)
  • Video Modes:
    • 1080i 50, 59.94, 60
    • 1080p 23.98, 24, 25, 29.97, 30
    • 720p 23.98, 24, 25, 29.97, 50, 59.94, 60
    • 720x480 29.97, 30/i (NTSC)
    • 720x576 25/i (PAL)
    • 720x576 25, 50/p
    • 3G SDI:
      • 1080p 50, 59.94, 60
  • Audio Input: Embedded SDI – 4 stereo pairs
  • Available Drivers: Microsoft Windows, Linux
  • Dimensions: 6.60" L x 2.71" H (16.76 cm L x 6.88 cm H)
  • Weight: ~ 70 g
  • Power Consumption: 6.3 W
  • Environment:
    • Operating Temperature Range: 0° to 40° C
    • Storage Temperature Range: -40° to +75°C
    • Relative Humidity Operating: Between 5% and 80% (noncondensing)
    • Relative Humidity Non-Operating: 95% RH (noncondensing); gradient 30% per hour

Click to download
