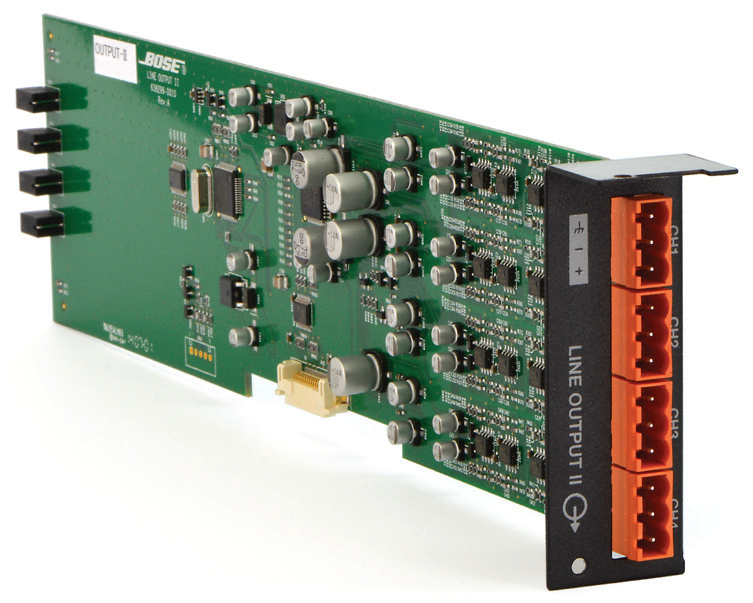

Bose 638299-0010
4 Channel Line Output Card

OUR PART #:  638299-0010

The Bose 4-channel line output card II for card-frame ControlSpace engineered sound processors provides four high-quality analog line- level output channels.
Learn More

Call for price! Not available online.

Similar Products

The Bose 4-channel line output card II for card-frame ControlSpace engineered sound processors provides four high-quality analog line- level output channels. The card inserts into one of eight expansion card slots on the ESP processor.

Bose 638299-0010 Features:

  • (4) balanced line-level outputs
  • +24 dBu maximum output
  • Dynamic range of >117 dB

Bose 638299-0010 Specifications:

  • Audio Outputs:
    • Output Channels: Four (4) analog, balanced, line level
    • Connectors: Four (4), 5.08 mm Euroblock, 3-pin
    • Output Impedance: 200 Ohms
    • Maximum Output Level: +24 dBu
  • Audio Performance:
    • Frequency Response: 20 Hz – 20 kHz
    • THD+N: 0.002% (A-weighted, 20 Hz – 20 kHz, +4 dBu @1 kHz input)
    • Channel Separation: < –110 dB at +22 dBu output level, 1 kHz
    • Dynamic Range: > 117 dB (A-weighted 20 Hz – 20 Hz)
  • Indicators:
    • Signal: Green (-60 to -20 dBFS), Yellow (-20 to -2 dBFS), Red (-2 to 0 dBFS)
  • Software Application:
    • ControlSpace Designer Software v4.1 or later
  • General:
    • Product Code: 638299-0010
    • Compatible With:
      • ControlSpace ESP-00 II engineered sound processor
      • ControlSpace ESP-00 engineered sound processor
      • ControlSpace ESP-88 engineered sound processor
    • Box Contents: (1) expansion card, (4) Euroblock connectors, (4) cable ties,(1) installation guide
    • Slot Requirement: One space
    • Routing Slot Allocation: 1
