Bose 638298-0010

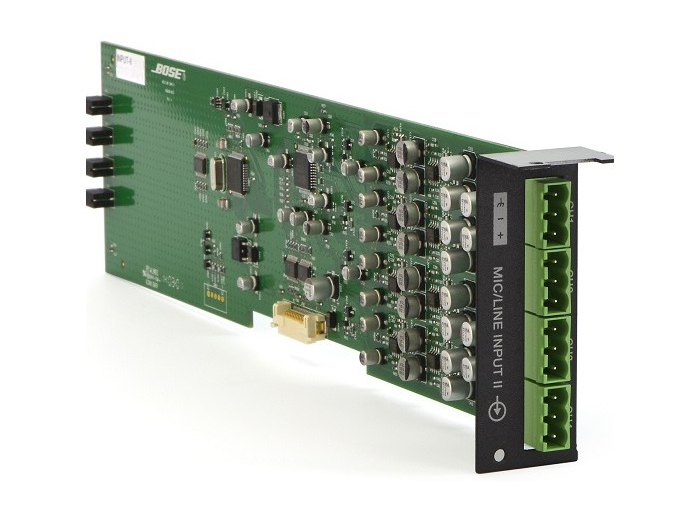

Microphone Line Input Module

OUR PART #:  638298-0010

The 4-channel mic/line input card II for card-frame ControlSpace engineered sound processors provides four high-quality analog input channels...
Learn More

Call for price! Not available online.

Related Products

The 4-channel mic/line input card II for card-frame ControlSpace engineered sound processors provides four high-quality analog input channels, accomodating a wide range of signals from both line-level devices and microphones using software-selectable gain control up to 64 dB and switchable +48 VDC phantom power.

The ControlSpace ESP-00 Series II engineered sound processor offers high-quality signal processing through a flexible audio platform. Install up to eight analog and/or digital audio expansion cards to create customized audio systems. Onboard connectivity includes Ethernet, RS-232, expandable GPIO, and support for elegant Bose control centers and volume controls.

Eight open card slots supporting up to 64 (input and/or output) audio channels take user-installable analog, digital, or audio networking I/O cards to better match signal type and channel count requirements. A full range of I/O cards is available and can be mixed, including microphone/line level analog audio, AES3, Dolby/DTS surround decoding, and Bose ESPlink output for simplified audio to same-rack PowerMatch amplifiers. Dante and CobraNet cards are also available to route and distribute audio to Bose PowerMatch amplifiers and single-rack-space DSPs as well as other manufacturer's compatible equipment.

Onboard connectivity includes Ethernet for control and configuration, RS-232, and expandable general purpose I/O with 8 control inputs and 8 control outputs. Five elegant Bose wall-mounted user interfaces can be used to control all Bose networkable devices.

Device and control configuration is accomplished using Bose ControlSpace Designer software, which offers an expanding list of algorithms and improvements to deliver a high level of functionality for most audio installations. Installers can quickly and easily drop in the signal processing and channel routing required, creating high-quality customized audio systems they can then tune real-time with ControlSpace Designer software. For programming Bose user controls, a unique drag-and-drop interface and simulator lets installers program and test end-user control functionality offline before a single hardware device is installed, saving onsite installation time.

Bose 638298-0010 Features:

  • Flexible I/O through a customizable card-frame design. With a powerful DSP core, the ESP-00 Series II processor accommodates up to 64 channels of audio over 8 open card slots, and general purpose I/O (GPIO) expansion up to 16 control inputs and 16 control outputs.
  • High-quality open-architecture DSP supports 48 kHz sample rate/24-bit conversion, uses a floating-point DSP and operates at low latencies for sound system precision.
  • I/O expansion cards cover a number of audio channel requirements from mic/line analog to Dante networking. These cards offer different audio options to populate the 8 open card slots.
  • Support for popular network protocols – Allowing integrators more flexibility in selection, the ControlSpace ESP-00 II processor supports popular audio networking protocols Dante and CobraNet® for interconnection with other products and audio systems.
  • A large suite of signal processing algorithms is available. These include automatic mic mixing, multiband graphic and parametric EQs, Bose loudspeaker libraries, signal generators, routers, mixers, AGC’s, duckers, gates, compressors, source selectors and delays.
  • A variety of control options. The ControlSpace ESP-00II processor is compatible with five user control interface options and can integrate with industry standard control systems using a comprehensive serial protocol through onboard RS-232 and Ethernet ports.
  • ControlSpace Designer software is used to configure both the signal processing and control capabilities of ControlSpace ESP processors. With ControlSpace Designer software it is possible to design, configure, controland monitor all Bose networked system electronics from a single software application.

Bose 638298-0010 Specifications:

  • Integrated DSP:
    • Signal Processor: Four 32-bit floating-point digital signal processors, 200 MHz
    • Maximum Calculation: 6.4 GIPS / 4.8 GFLOPS
    • Delay: 288 s
    • Audio Latency: 860 microseconds (analog in to analog out)
    • A/D and D/A Converters: 24-bit
    • Sample Rate: 48 kHz
  • Control Inputs:
    • Inputs (Control): 8 analog or digital inputs, 5.1 kO internal pull-up resistor to 5 V, 3.81 mm Euroblock, 9-pin
    • Analog Input Voltage Range: 0 V to 3.3 V (maximum 5 V)
    • Digital Input Voltage Range: 0 V to 3.3 V (threshold voltage = 1.6 V)
  • Control Outputs:
    • Outputs (Control) 8 digital outputs, 3.81 mm Euroblock, 9-pin
    • Output Voltage High: 7.5 V (open circuit), 2.5 V @ 10 mA, Low: < 1 V @ 100 mA, push-pull
  • Indicators and Controls:
    • LED Status Indicators: Power, Status, Ethernet/Serial (RS-232 + CC-16)
    • Audio Signal Indication: Green (-60 to -20 dBFS), Yellow (-20 to -2 dBFS), Red (-2 to 0 dBFS)
  • Electrical Specifications:
    • Mains Voltage: 85 VAC-264 VAC 50/60 Hz with PFC
    • AC Power Consumption: < 35 VA typical / < 70 VA max at < 95°F (35°C) ambient
    • Mains Connector: IEC 60320-C14 (Inlet)
    • Power Dissipation: 70 W (239 BTU, 60 kcal)
  • Physical:
    • Dimensions: 3.5" H x 19.0" W x 13.0" D (88 mm H x 483 mm W x 331 mm D)
    • Net Weight: 10.8 lb (4.9 kg)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Cooling System: Internal fan
  • General:
    • PC Configuratoin Software: ControlSpace Designer software
    • Network Control: Ethernet (RJ-45), 10 Mb
    • Communications Ports: RS-232 (DB9M, DTE), Bose CC-16 (5.08 mm Euroblock 3-pin)
    • Expansion Slots: 8 analog/digital audio, 2 GPIO (1 occupied)
    • Audio Channel Capacity: 64 (bi-directional, digital and/oranalog)

Accessories for Bose 638298-0010:

  • ControlSpace CC-64 control center: 041760
  • ControlSpace CC-16 zone controller: 041761
  • ControlSpace CC-4 room controller: 042023
  • ControlSpace CC-PS1 universal power supply: 371407-0010
