Product Overview

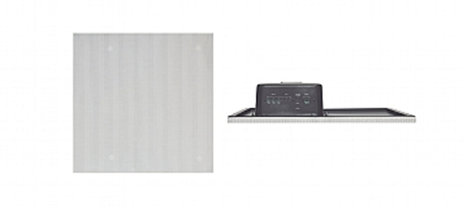

The Tavor 8-T High Performance Powered Ceiling Tile Speaker features a 40 watt built-in class D power amplifier, three inputs, Kevlar (R) woofer, four pivoting titanium tweeters, complete K-overage ESD (Equal Sound Dispersion) design for almost 180 degrees of sound dispersion, magnet held grill (with two security screws) for time saving installation and a 2nd level cross-over.
Features
- Type - 2-way ceiling tile speaker
- Built-in Power Amplifier - 40W RMS, 110 W continuous program
- Woofer - 8” Kevlar (R) cone
- Tweeter - Four pivoting 1" titanium domes
- 3 Inputs with Individual Volume Control
- Master Volume Control
- Package - 1 Speaker
Specifications
- Description: Active flat ceiling speaker
- Frequency Response: 65 Hz to 20 kHz at 10 dB, 80 Hz to 20 kHz at +/- 3 dB
- Woofer: 8” (200 mm) Kevlar (R) cone with rubber surround
- Tweeter: Four 0.8" titanium pivoting tweeters
- Sensitivity: 87 dB 1 W at 1 m
- Max SPL:
- Continuous: 102 dB
- Peak: 105 dB
- Power Handling: 40 W RMS, 110 W continuous program
- Crossover Frequency: 2 kHz
- Directivity Factor (Q): 9.43 averaged 1 kHz to10 kHz
- Directivity Index (DI): 9.5 dB averaged 1 kHz to 10 kHz
- Input Connectors: Terminal block connectors
- Controls: 3 independent input level trimmer, 1 master volume trimmer
- Materials: Frame, steel grills (595 x 595 mm, 600 x 600 mm), cable holder
- Dimensions: 60 cm x 60 cm x 10 cm (tile size), 59.5 cm x 59.5 cm x 10 cm (tile size) for any region with suspended ceiling tiles of 595 mm
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: -40° to +70°C (-40° to 158°F)
- Humidity: 10% to 90%, RHL non-condensing
- Accessories: 24V DC power adapter, 2 available grilles (595 x 595 mm, 600 x 600 mm)
- Colors: Available in white
