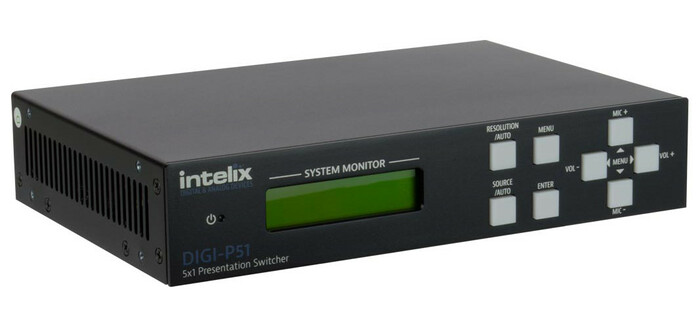

Intelix DIGI-P51 Presentation Switcher, 5 Input x 1 Output

The Intelix DIGI-P51 Presentation Switcher allows the integration of multiple analog and digital devices into a high-definition environment. Mounting options include wall, under table, or resting on a shelf.

The DIGI-P51 allows selection of five different sources, and will simultaneously scale the selected video to an HDMI output. The unit features three HDCP compliant HDMI inputs and two VGA inputs with discrete analog audio inputs for each input connection. The VGA inputs can be configured to support YPbPr (component video) and CV (composite video) video formats. There are seven fixed output resolutions to pick from, and several aspect ratio modes, which will ensure your content is displayed properly. The DIGI-P51 offers unique audio options designed to simplify your installation. All audio inputs are embedded into the HDMI stream, so you can use your display speakers for audio. Additionally, the line level output can be used for reinforcement. A balanced input is provided (line or microphone level) which is mixed with the source audio to provide voice lift capabilities; while the volumes of the mic and source can be individually controlled.

The DIGI-P51 can be controlled in many different ways. When the VGA inputs are defined as PC signal inputs, the DIGI-P51 can be configured to automatically switch to an input once connected to the switcher; once a device is removed, the DIGI-P51 will switch to the first active input with HDMI inputs taking priority. The front panel offers source selection, output resolution, and volume control. Third party control systems can utilize RS232 rear panel and rear panel IR control. CEC enabled source devices can be controlled from a CEC enabled display.

Intelix DIGI-P51 Presentation Switcher Applications:

• Under-table switcher for conference tables
• Easy integration of legacy components into a digital environment
• Analog to digital conversion and scaling up to 1080p
• Ideal for corporate facilities, churches, schools, and conference centers

Intelix DIGI-P51 Presentation Switcher Features:

• 3 HDMI and 2 universal analog (VGA, YPbPr, CVideo) inputs
• HDMI output
• Auto switch inputs when universal inputs are set to VGA
• Mic and Line level mixing with phantom power
• Line level audio de-embedding
• Analog audio embedding on each input channel
• Output scaling to 7 fixed resolutions
• Front panel, IR, and RS232 control
• CEC enabled for source control
• Includes international power supply (AUS, EU, UK, and US)
• Includes under-table mounting brackets

NOTE: For technical specifications, please view the spec sheet located on the Documentation tab
