Atlas IED F6-AMIX Mixer Card for F6 Mainframe

OUR PART #: F6-AMIX MFR #: F6-AMIX

Copied to clipboard

The F6-AMIX is an 8 input by 6 output analog mixer card designed for use with the F6-MF. ...Read more

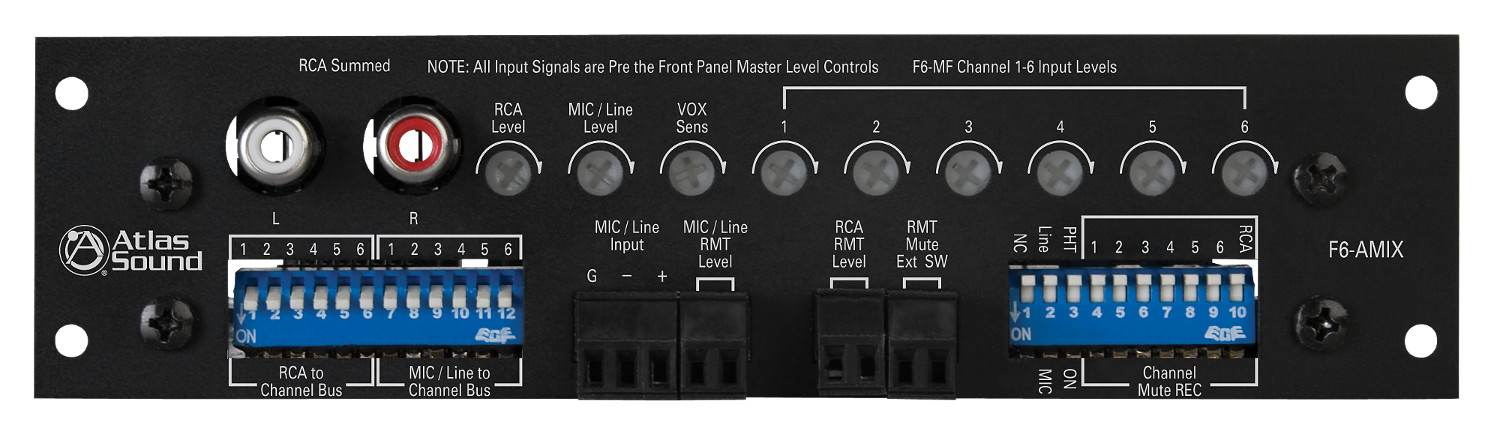

Atlas IED F6-AMIX Mixer Card For F6 Mainframe Image 1
Atlas IED F6-AMIX Mixer Card For F6 Mainframe Image 2
Atlas IED F6-AMIX Mixer Card For F6 Mainframe
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The F6-AMIX is an 8 input by 6 output analog mixer card designed for use with the F6-MF. The F6-AMIX module adds increased functionality and value to the F6-MF Multi-Impedance Modular Amplifier, reducing the need for additional external devices for more complex paging and background music systems. The F6-AMIX Multi-Function Analog Input Mixer Card is feature loaded with stereo summed and Mic/Line inputs with global assignment, signal mixing and remote level control, and mute priority capabilities.

Atlas Sound F6-AMIX Features:

  • Mic/Line Input with Phantom Power
  • AUX Input with Stereo Summing
  • Matrix Routing of Mic/Line and AUX Inputs to AnyOutput
  • Separate Remote Level Control of Mic and AUX Inputs
  • Mute Bus with VOX and Contact Closure Muting

Atlas Sound F6-AMIX Specifications:

  • Type: (1), Unbalanced
  • Connector Type: RCA Left and Right Actively Summed
  • Input Level: 316mV (-10dBV)
  • Type: (1), Balanced Mic or Line Selectable
  • Connector Type: Removable 3 Position Captive Screw3.5mm Spacing
  • Line Input Level: 1V Balanced
  • Mic Input Level: 40dB Gain
  • Type: (6), Balanced from F6-MF Input
  • Input Level Control: Channels 1-6, Mic/Line, RCASummed
  • Remote Level Control Port: Mic/Line and RCA, (2)Removable 2 Position Captive Screw 3.5mm Spacing for Each Port
  • VOX Sensitivity: Sensitivity Range 2mV-20mV
  • Phantom Power: 15VDC
  • Frequency Response: 20Hz - 20kHz
  • THD: 0.06% at 1kHz Average
  • Dimensions: 1.55" (40mm) x 6.125" (156mm) x 5.34" (135mm)
