RF Venue DFINBDISTRO4 4-Channel Wireless Antenna Upgrade Pack, Black

OUR PART #: DFINBDISTRO4 MFR #: DFINBDISTRO4

Copied to clipboard

RF Venue's DFINBDISTRO4 is an antenna and distribution install package consisting of: (1) DISTRO4 4-channel antenna distributor, (1) Diversity Fin™ black install antenna... ...Read more

RF Venue DFINBDISTRO4 4-Channel Wireless Antenna Upgrade Pack, Black Image 1
RF Venue DFINBDISTRO4 4-Channel Wireless Antenna Upgrade Pack, Black Image 2
RF Venue DFINBDISTRO4 4-Channel Wireless Antenna Upgrade Pack, Black
Our Price: $1,449.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$41/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

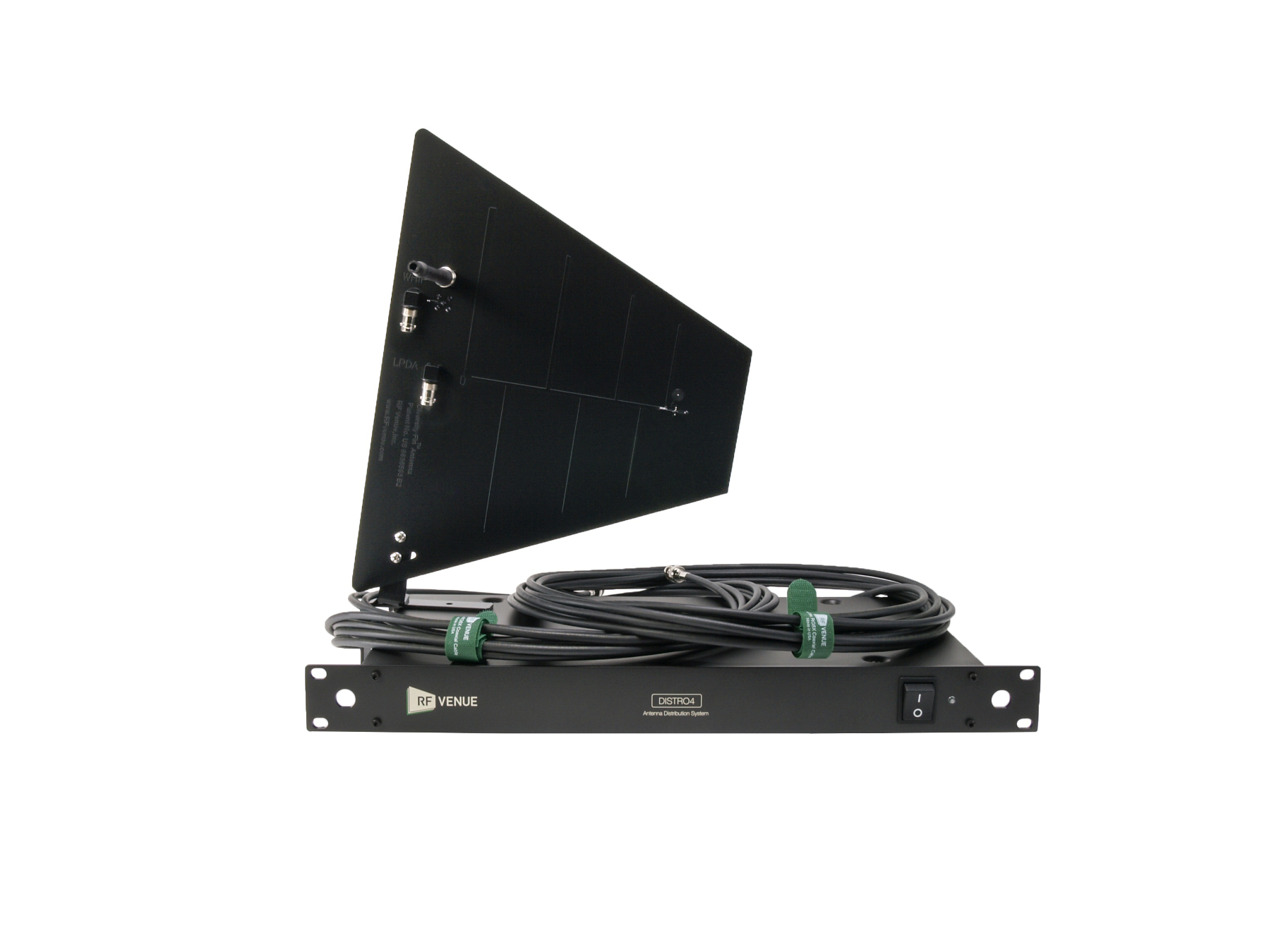

RF Venue's DFINBDISTRO4 is an antenna and distribution install package consisting of: (1) DISTRO4 4-channel antenna distributor, (1) Diversity Fin™ black install antenna, and (2) 25ft RG8X coaxial cables. All DC and RF jumpers are included, as well as wall-mounting hardware.

DISTRO4 Antenna Distributor

A true "distribution amplifier," providing RF and DC power to 4 of any brand wireless microphone systems - it enables you to split 2 incoming antenna signals (or single Diversity Fin signal) and amplify these antenna signals prior to distribution across multiple receivers in a rack.

For wireless microphone systems larger than 4 channels, multiple DISTRO4 RF/DC Distributors can be cascaded together using the onboard cascade ports (additional DISTRO4 units sold seperately). Additionally, this high-quality yet cost-effective antenna distribution unit features a 2000 mA internal power supply (no wall wart).

Diversity Fin Antenna

A multi-purpose antenna for wireless microphones, the patented Diversity Fin reduces dropouts by employing a cross-polarized, hybrid design, combining 1 LPDA and 1 dipole antenna in an orthogonal (right angle) configuration. One element captures vertically polarized waves, and the other captures horizontally polarized waves—doing the same job as 2 "shark fin" paddles while greatly improving RF and audio performance.

To use, just connect both the A and B outputs on any antenna distributor or microphone receiver and point toward the stage.

Due to its performance, convenience, space, and cost benefits, the Diversity Fin has found widespread adoption across multiple pro audio segments. From high profile live sound events, to film and TV productions, to routine installations in schools and churches, the Diversity Fin is the ideal all-purpose external antenna for diversity microphone systems of any brand.

Includes

  • DFIN Diversity Fin Antenna, Black
  • DISTRO4 Antenna Distributor
  • Black wall mount bracket
  • (10) BNC jumpers
  • (4) DC jumpers
  • (2) 25' RG8X BNC cables
  • AC power cord

Features

  • Diversity Fin Antenna
    • Combines one log-periodic dipole array (LPDA) and one dipole antenna in a right angle configuration
    • Allows receivers to see a constant signal regardless of microphone orientation
    • Replaces two standard paddle antennas at a lower cost with better performance and easier installation
  • DISTRO4 Antenna Distributor
    • 4-way active antenna splitter plus cascade port with external power
    • Multiple DISTRO4s can be connected together up to 25 receivers to a single diversity pair of antennas
    • 2000 mA internal power supply

Specifications

  • DFIN Polarization Diversity Antenna
    • Electrical
      • Operating frequency: 470–698 MHz
      • Bandwidth: 228 MHz
      • Average return loss: -9.4 dB
      • Impedance: 50Ω
    • LPDA
      • Beam width: 140° azimuth
      • F/B ratio: -8 dB
      • F/S ratio: -5 dB
      • Gain: 5 dBd
    • Dipole
      • Beam width: 100° azimuth
      • F/B ratio: -5 dB
      • F/S ratio: -13 dB
      • Gain: 1.8 dBd
    • Physical
    • Length: 300mm / 12”
    • Height: 370mm / 14.6”
    • Weight: 454g / 1lb
    • Mount threads: 1/4-20, 3/8-16, 5/8-27
    • Operating temperature: -23–54°C / -9–130°F
    • Color: Black
    • Connector(s): (2) BNC female
  • DISTRO4 Antenna Distributor
    • Frequency range: 470-952 MHz
    • RF output level (gain): 3 dB (±2 dB)
    • Cascade output level: 0 dB ~ +2 dB
    • Output connection isolation: ≥ 25 dB
    • Third order intercept point: 24 dBm
    • Impedance: 50Ω
    • Power consumption: 60 W
    • Input AC voltage: 100~240 V switching
    • DC over coax (to external antennas): 12-14 VDC
    • Output DC voltage (to receiver jacks): +12 V
    • Output DC connectors: 5.5mm OD, 2.1mm ID
    • Dimensions: 480(W) X 45(H) X 250(D) mm / 19(W) X 2(H) X 10(D) in
    • Weight: 2.15 Kgs / 4.75lbs

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
