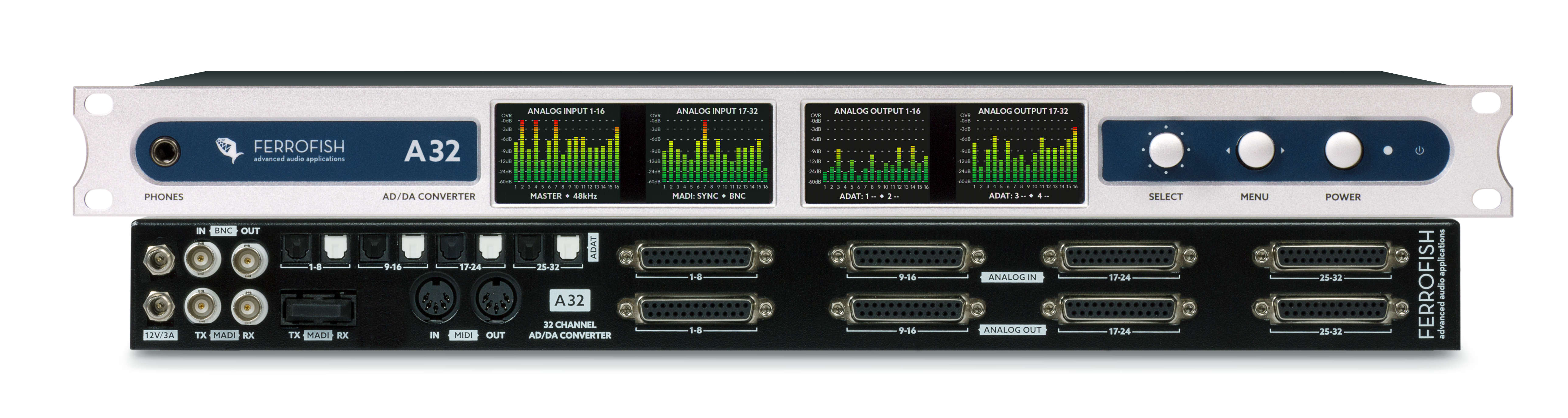

Ferrofish A32 Converter
32 in / 32 out AD/DA Converter w/ MADI & ADAT

OUR PART #:  A32

The Ferrofish A32 converter is an analog to digital converter that uses converters from Cirrus Logic with great analog performance.
Learn More
Our Price: $2,399.00
List Price: $2,699.00
You save 11%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Ferrofish A32 Converter
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Ferrofish A32 converter is an analog to digital converter that uses converters from Cirrus Logic with great analog performance. Every analog input and output has analog switches for selecting between +4dBu, +13dBu and +20dBu, and every channel you can set seperately. The levels which lie in between are set by an Analog Devices Sharc DSP. So, whether you connect professional or consumer equipment, you will always have the best analog performance.

Thanks to the TFT screens found on this converter there is no need to install a program on the PC to have the ability to see the levels and adjust everything. Just take a look on the A32, and you see what's happening, all 64 analog channels clearly visible on high resolution level meters. But thats not all, press the MENU key, and enjoy the extensive user interface.
For the master clock Ferrofish uses a temperature compensated high quality oscillator. But also when you use MADI or ADAT as clock source, the digital PLL produces a virtually jitterless sampleclock for the converters.
Ferrofish knows you need a reliable system. Thats why the A32 has two power inputs. If one power supply fails, you see a warning on the TFT screens, and you can search for the failure while the A32 still works with the other supply. MADI is also laid out redundant: If you connect both, optical and coax, the input automatically switches to the other source, if sync is lost. So next time your cat bites the optical cable, the A32 still uses the coax connection as backup.
If you ever wondered what happens on a analog or digital channel you will find the headphone connector very useful. With one touch of the encoder you see the headphone screen. There you can set the volume, and select the source for the headphone output. You can also store up to seven mixes, and just select one to hear it on the headphones.
One of the most exciting new features is the fourth generation Sharc DSP Ferrofish put inside. This DSP is connected to all 258 analog and digital channels, and is able to freely route and mix all these signals. Besides of that, it can do audio processing, so Ferrofish can expand the features of the A32 easily.

Ferrofish A32 Specifications:

  • 32 balanced inputs, 32kHz -192kH
  • 32 balanced outputs, 32kHz -192kHz
  • Temperature compensated oscillator (TCXO) with verylow jitter and high stability
  • MADI optical and coaxial
  • MIDI over MADI
  • 4x ADAT TOSLINK inputs
  • 4x ADAT TOSLINK outputs
  • SMUX up to 192kHz
  • BNC Wordclock
  • MIDI in/out plugs and MIDI over MADI
  • Headphone/submix output for easy control
  • 4x TFT Screens allow complete control of all levelsand settings
  • One Key Control - Allows easy and total control ofall functions
  • All 64 analog channels are visible at the same time,peak and level display
  • No need to study the manual, multi-language helppages available
  • Preset Management
  • 400MHz SHARC DSP processes all 258 audio channels
  • Extensive routing/mixing possibilities for countless applications¬∑Individual delay-compensation of all analog outputs
External Power Supply for Ferrofish A32 and A32 Single
Ferrofish A32PSU External Power Supply for Ferrofish A32 and A32 Single
The Ferrofish A32PSU is an external power supply for Ferrofish's A32 and A32 Single AD/DA converters. This 100-240 VAC, 50/60 Hz power supply delivers the required 12 VDC to power the converters.
