Product Overview

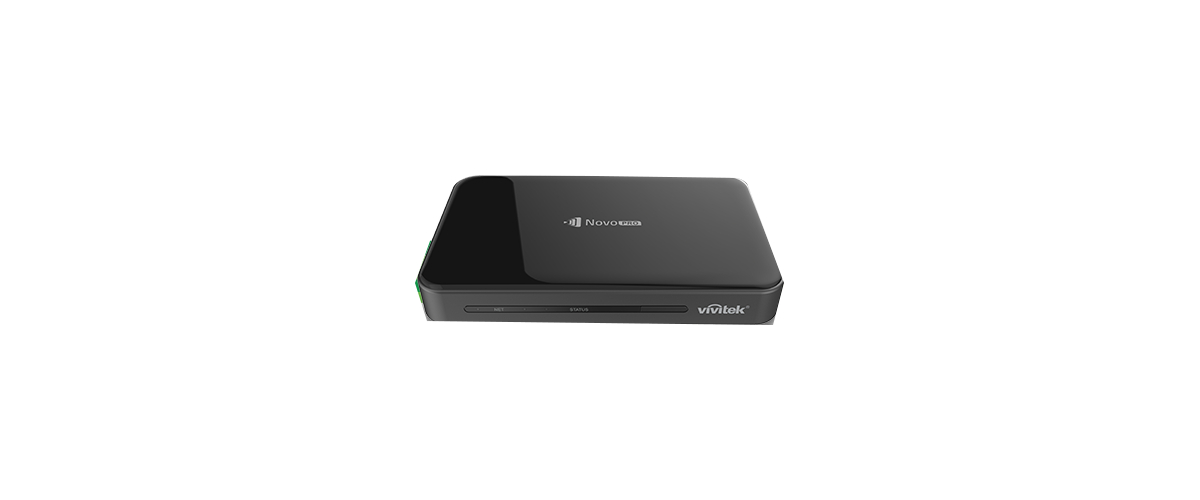

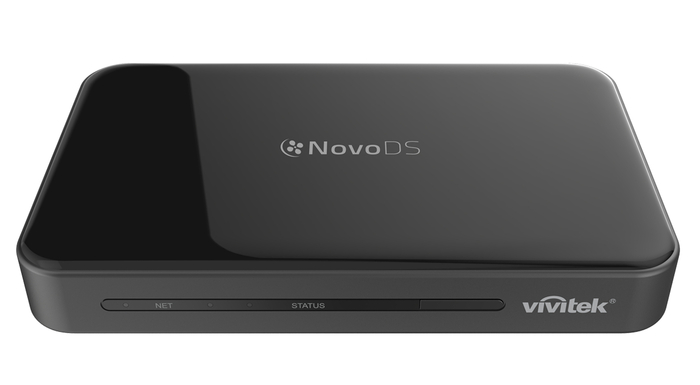

Vivitek's NovoDS is an easy-to-manage digital signage solution for creating dynamic multimedia content for a variety of large-scale corporate and educational applications. The NovoDS features a diverse mix of signage templates for easy creative control. Designed with a complete user-friendly interface, the NovoDS allows users to generate signage content without the need of any programming skills. Deliverying full connectivity, the NovoDS connects to your display via HDMI and supports HD 1080p at 60 FPS. It supports video playback of 4k Ultra HD at 30 FPS.
Vivitek NOVO-DS Includes:
- USB Power Adapter
- HDMI Cable
- Power Cable
- Remote Control
- Mounting Bracket
Vivitek NOVO-DS Features:
- Full HD 1080p, 60 fps display quality with support for the next generation of ultra-high resolution (3840 x 2160) displays
- Displays content directly from the built-in storage, microSD slot or USB flash drive
- Export and update signage content via an Ethernet or wireless connection
- Network-based remote management and maintenance software included
- Remotely manage and monitor the status of content playing from a single display to Enterprise wide
- Compatible with Windows® and Mac® operating systems
- Plug-and-play for easy setup and configuration
- Kensington® security slot to prevent theft or movement of the device
- Playlist editing – including, RSS, Twitter, built-in widget, IP streaming (HTTP/RTSP), real-time message updates, USB and IP camera inputs
Vivitek NOVO-DS Specifications:
- Display Resolutions:
- 1280 x 720 (16:9, 720P at 60 FPS),
- 1920 x 1080 (16:9, 1080P at 60 FPS),
- 3840 x 2160 (16:9, UltraHD 4K at 30 FPS)
- Output Orientation: Portrait, Landscape
- Storage:
- Internal: 8 GB (5.1 GB User Availability)
- External: microSD Card Slot (Up to 32GB), USB Flash Drive
- Network Connection: Wi-Fi: 802.11 AC (2.4 GHz & 5GHz), Ethernet
- Media Formats Supported:
- Images: JPEG, PNG, GIF, BMP
- Video: MP2, MP4, H.264, VC-1 (WMV)
- Audio: MP3, WMA, AAC
- Other: Scrolling Text with Custom Visual Effects
- Input / Output Connection Ports:
- USB 2.0 Type A
- HDMI v1.4
- MicroSD Card
- RJ45 (10/100 Ethernet)
- MicroUSB Power Input (5V/2A)
- LED Indicator:
- Green: System Power on
- Red: System in Standby
- Blue: Network Activity
- Button / Switch: Reset Button
- Power Supply / Consumption (AC Adapter): 100 ~ 240 VAC, 50/60 Hz, DC output: 5.35V and 2A
- Power Consumption: 10W
- OS Platform Support: Windows® 7.0+, Mac® 10.7+
- Available Color: Dual-Tone: Black and Gray
- Security Solutions: Kensington® Security Slot
- Weight: 128 g (0.28 lbs)
- Dimensions (LxWxH): 4.7" x 2.9" x 1.0" (120 x 75 x 26 mm)
