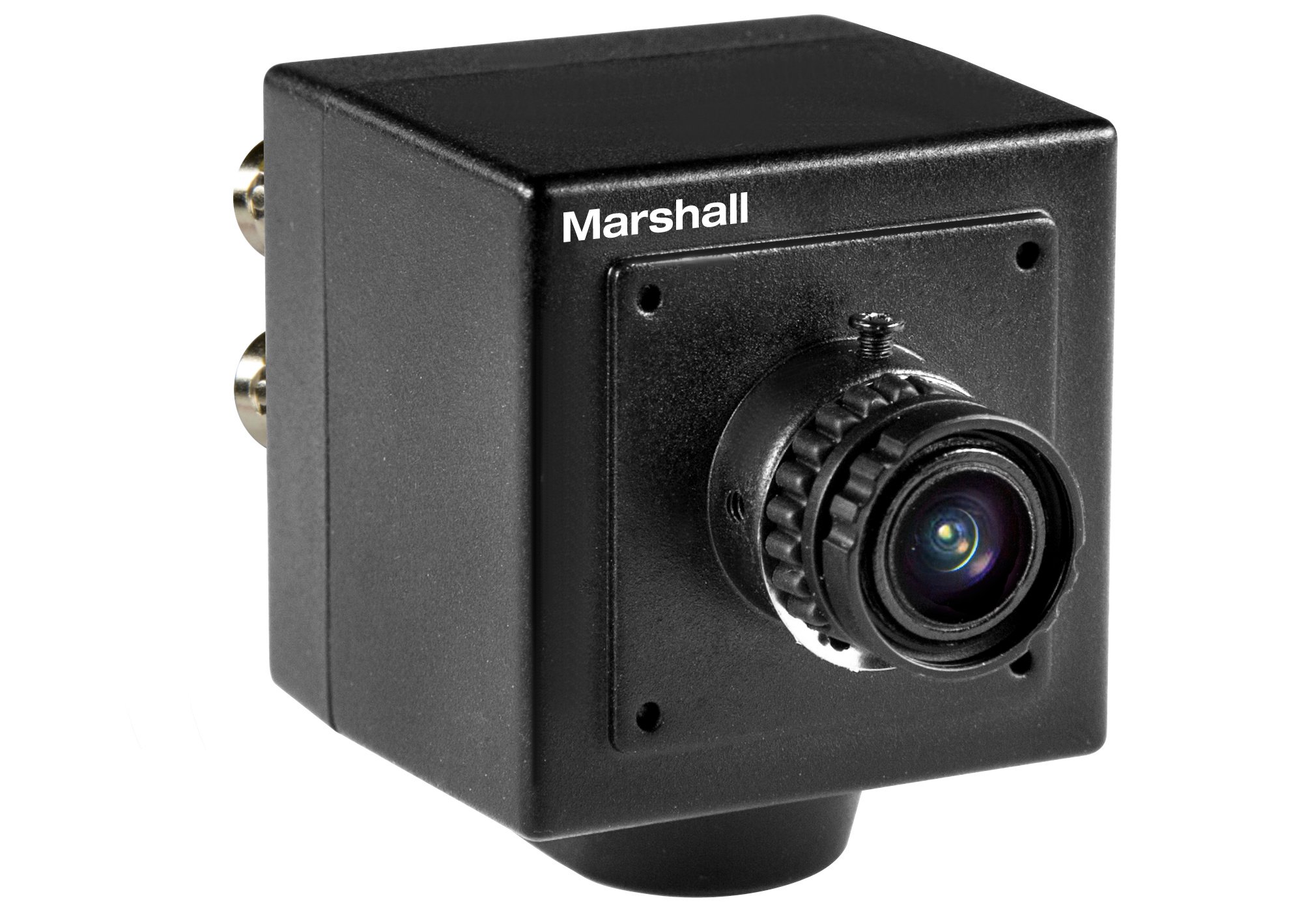

Marshall Electronics CV502-MB
3.7mm Lens, 2.5MP 59.94FPS Mini Broadcast Camera

OUR PART #:  CV502-MB

Marshall Electronics' 3rd Generation CV502-MB (Broadcast version) provides improvement on all aspects of video performance.
Learn More
Our Price: $499.00
List Price: $599.00
You save 17%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics CV502-MB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Marshall Electronics' 3rd Generation CV502-MB (Broadcast version) provides improvement on all aspects of video performance. Utilizing a state of the art 1/2.8" high-speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p, at frame-rates of (Broadcast) 59.94/29.97 fps. Proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions, as low as 0.05 lux. Industry-leading low power consumption draws very low power in full 1920x1080p59.94fps modes. The CV502-MB Pro-Series POV Camera continues to offer Field-of-View flexibility with interchangeable lenses and convenience of HD-SDI outputs maintaining a broadcast standard for POV camera applications. Its RS485 connectivity offers remote camera control communication via SONY VISCA or PELCO protocols.

NOTE: See Attachment for Marshall Electronics CV502-MB Mini Camera Specifications

Applications:

  • Broadcast Television
  • Professional Sports
  • College Sports
  • OB Vans/Trucks
  • Concert & Studio Music Video
  • Reality TV
  • Performing Arts
  • Culinary Shows
  • Car TV Shows
  • Hidden Camera Shows
  • International Racing Circuits
  • Off-road Racing
  • Horse Racing
  • House of Worship
  • POV Video Shots

Marshall Electronics CV502-MB Mini Broadcast Camera Features:

  • 2.5 Megapixel 1/3" CMOS Sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable - other lenses sold separately)
  • CV502-MB: 1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps
  • 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel
  • Captures sharp & vivid color images at 0.2 lux (low light sensitive)
  • New WDR function supports high speed & high sensitivity to various light sources
  • OSD Menu Joystick, RS-485 connectable (Pelco/Visca),
  • Free Downloadable Software Control
  • Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust
  • 12V Power supply included
