Clear-Com Wireless System Base
2-Channel Station

OUR PART #:  WBS-680-NEW

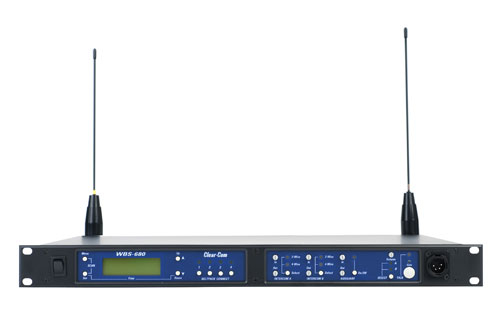

The Clear-Com WBS-680 is a 1RU, rack-mountable base station that supports up to four full-duplex wireless beltpacks and provides a full talk/listen headset station.
Learn More

Call for price! Not available online.
List Price: $6,460.00

Select a Model: (shipping times are approximate)
Similar Products

The Clear-Com WBS-680 is a 1RU, rack-mountable base station that supports up to four full-duplex wireless beltpacks and provides a full talk/listen headset station. Rear panel connections allow the WBS-680 base station to connect to two separate channels of wired intercom; 2-wire, 4-wire or both.

Clear-Com WBS-680 Specifications:

  • Base Station:
    • RF Frequency Range: 518-608 MHz, 614-686 MHz in 18 MHz TX and RX bands
    • Power Requirement: 100-240 VAC, 50-60 Hz, IEC receptacle
    • Typical Battery Life Alkaline: N/A
    • Typical Battery Life - Nickel Metal Hydride (1500 mAh): N/A
    • Current Draw: N/A
    • Temperature Range: -4 F to 140 F (20 C to 55 C)
    • Dimensions: 19.0” W x 1.72” H x 14.0” D (48.3 cm x 4.4 cm x 35.6 cm)
    • Weight: 7 lbs. 2 oz. (3.24 kg)
    • Transmit Antenna: 1/2 Wave (supplied), TNC Male Connector
    • Receiver Antenna: 1/2 Wave (supplied), TNC Male Connector
    • FCC ID: B5DM514
    • Frequency Response: 300 Hz - 8,000 Hz
    • Four-Wire Input: Level Adjustable (2 Vrms typical)
    • Four-Wire Output: Level Adjustable (2 Vrms typical)
    • Clear-Com® Party-line Levels: Input/Output Level Adjustable (1 Vrms typical), Line Impedance 200 W
    • RTS® Party-line Levels: Input/Output Level Adjustable (0.775 Vrms typical), Line Impedance 200 W
    • Telex® Party-line Levels: Input/Output Level Adjustable (1 Vrms typical), Line Impedance 300 W
    • Auxiliary Input: Adjustable (2 Vrms typical)
    • Auliliary Output: Adjustable (2 Vrms typical into 600 W) (at rated deviation)
    • Stage Announce Output (WBS-680 only): Internally Adjustable (1Vrms typical at rated deviation into 100K W)
    • Stage Announce Relay (WBS-680 only): Dry contact, rated at 1Amp, 24 V Max. / N/A
  • Transmitter:
    • Type: Synthesized, 720 channels
    • Transmit Power: WBS-680: 100 mW max. (High), 10 mW (normal)
    • RF Frequency Stability: 0.005%
    • Modulation: FM, 40 KHz Deviation
    • Modulation Limiter: Peak-Responding Compressor
    • Modulation Frequency Range: 300 Hz -8,000 Hz +-2 dB
    • Microphone Audio Input: 30 W - 3,500 W
    • Microphone Input Sensitivity: 9 mV
    • Radiated Harmonics & Spurious: Exceeds FCC specifications
    • FCC Acceptance: Type accepted under FCC Part 74
  • Receiver:
    • Type: Dual Conversion Superheterodyne, Synthesized, FM, 720 channels
    • RF Sensitivity: <0.7 mV for 12 dB SINAD
    • Signal-to-Noise Ratio: 95 dB
    • IF Selectivity: 3 dB at 230 KHz
    • Image Rejection: 70 dB or better
    • Squelch Quieting: 95 dB
    • RF Frequency Stability: 0.005%
    • Distortion: <1% at full deviation
    • Local Headset Output: 40mW output into 600 W (1% distortion)
    • FCC Acceptance: Notification under FCC Part 15
