AJA Video Systems Inc Player Monitor
4K/UltraHD and 2K/HD Recorder/Player with 4K 60p Support

OUR PART #:  KI-PRO-ULTRA

Our Price: $2,995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc Player Monitor
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

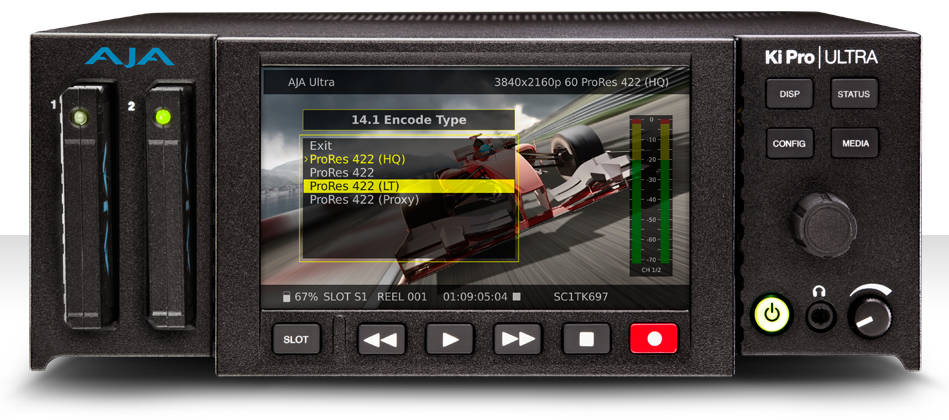

The Ki Pro® Ultra from AJA is a next generation file-based 4K/UltraHD/2K/HD video recorder and player with a built-in HD LCD monitor; capable of capturing edit-ready Apple ProRes files in a range of video formats and frame rates up to 4K 60p.

Ki Pro® Ultra offers flexible input and output connectivity including 3G-SDI, HDMI and even Fiber, for powerful and efficient large-raster and high-frame rate workflows. Designed to be both portable with a built in carry handle or rack-mountable with half-rack wide 2RU high dimensions, Ki Pro® Ultra suits a wide range of production and post environments.

With a newly designed half-rack wide 2RU high form factor, Ki Pro Ultra suits a variety of production environments. It offers a variety of analog and digital audio connectivity, via industry standard 3G-SDI, HDMI, SFP Fiber, XLR audio, and more. When using two AJA Pak1000 (1 Terabyte) SSDs, Ki Pro Ultra supports up to two hours of 4K 60p ProRes HQ recording with rollover functionality to extend that even further. An integrated HD LCD display for monitoring and playback includes transparent overlays that offer a feature rich and intuitive menu with onscreen keyboard functionality. Ki Pro Ultra also includes AJAs proven integrated web UI, for easy and complete control across a LAN from any web-browser.

AJA Video Systems Ki Pro® Ultra Features:

  • Supports recording and playback of 4K/UHD resolutions up to 4K 60p
  • Apple ProRes support, including up to ProRes 4444
  • Records 4K/UltraHD and 2K/HD sources directly to reliable and affordable AJA Pak SSD media, at capacities up to 1 Terabyte
  • Extremely fast media changes and Rollover recording with twin media drivebays
  • Professional connectivity with 3G-SDI, Fiber and HDMI inputs and outputs, AES and analog XLR balanced audio, LTC, RS-422 and LAN
  • All outputs are active all the time, for massive output and monitoring capabilities
  • “Always-on” high-quality 4K/UHD to HD down-conversion
  • Intuitive menu structure and confidence monitoring on a built-in 4.8” 720p LCD display
  • Integrated web-based UI for complete control across the LAN on any web-browser
  • A rotary selection knob for quick, accurate adjustment of configuration and settings
  • RS-422 control for easy integration with supported editing systems and external controllers
  • Dual redundant 12V power inputs with locking 4-pinconnector (one 12Vpower supply included)
  • Standard 2RU high, 1/2 rack width, allows easy side-by-side rackmounting.Included carrying handle also allows easy portability

AJA Video Systems Ki Pro® Ultra Specifications:

  • Video Formats:
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080i 25, 29.97, 30
    • (HD) 1080psf 23.98, 24, 25*, 29.97*
      • *NOTE: 25 and 29.97 requires Record Type>PsF selection
    • (HD) 720p 50, 59.94, 60
  • Codec Support:
    • Apple ProRes 4444*
    • Apple ProRes 422 (HQ)
    • Apple ProRes 422
    • Apple ProRes 422 (LT)
    • Apple ProRes 422 (Proxy)
      • *NOTE: Apple ProRes 4444 4K/UltraHD/2K/HD up to 30 fps
  • Removable Storage:
    • 2 x slots, AJA Pak SSD media Pak256, Pak512, Pak1000*
      • *NOTE: 4K/UltraHD 50, 59.94, 60 ProRes 422 (HQ) recording requires genuine AJA Pak1000 media
  • Video Input Digital:
    • 4 x 3G-SDI, SMPTE-292/296/424, 10-bit (12-bit input supported)
    • Single Link 4:2:2, 4:4:4 (1 x BNC)
    • Dual Link 4:2:2, 4:4:4 (2 x BNC)
    • 4K/UltraHD 4:2:2 or 4:4:4 (4 x BNC)
    • Dual Channel Fiber Input (2 x Ports) SFPs required (not supplied)
    • 1 x HDMI Standard Type A connector
    • HDMI v1.4b, RGB or YCbCr
    • HDMI v2.0, YCbCr, 4:2:0 only at 4K/UltraHD 50, 59.94, 60*
    • NOTE: Future Software Release
  • Video Output Digital:
    • 4 x 3G-SDI, SMPTE-292/296/424, 10-bit
    • Single Link 4:2:2 or 4:4:4 (1 x BNC)
    • Dual Link 4:2:2 or 4:4:4 (2 x BNC)
    • 4K/UltraHD 4:2:2 or 4:4:4 (4 x BNC)
    • Dual Channel Fiber Output – (2 x Ports) SFPs required (not supplied)
    • 1 x HD-SDI monitor output with support for up to 2048x1080 4:2:2
    • 1 x HDMI Standard Type A connector
    • HDMI v1.4b, RGB or YCbCr
    • HDMI v2.0, YCbCr, 4:2:0 only at 4K/UltraHD 50, 59.94, 60*
    • *NOTE: Future Software Release
  • Audio Input Digital:
    • 8-channel, 24-bit SDI/Fiber embedded audio, 48kHz sample rate, Synchronous
    • 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous
    • 8-channel, AES/EBU via (1/2 x DB-25 TASCAM pinout)
  • Audio Input Analog:
    • 8-channel, 24-bit A/D analog audio, 48kHz sample rate (1 x DB-25 TASCAM Pinout)
    • +24dBu Full Scale Digital
    • +/- 0.2dB 20Hz to 20kHz Frequency Response
  • Audio Output Digital:
    • 8-channel, 24-bit SDI/Fiber embedded audio, 48kHz sample rate, Synchronous
    • 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous
    • 8-channel, AES/EBU via (1/2 x DB-25 TASCAM Pinout)
  • Audio Output Analog:
    • Stereo unbalanced headphone jack (1 x 3.5mm jack) with volume control
    • 2-channel unbalanced 2 x RCA connectors
    • 8-channel, 24-bit D/A analog audio, 48kHz sample rate (1 x DB-25 TASCAM Pinout)
  • Timecode:
    • SDI RP188/SMPTE 12M via SDI BNC
    • LTC input (1 x BNC)
    • LTC output (1 x BNC)
  • Reference Input: Reference Loop (2 x BNC)
  • Network Interface:
    • 10/100/1000 Ethernet (RJ-45)
    • Embedded web server for remote control via REST
    • Video Confidence Monitor via Web Interface
    • Clip upload/download via Web Interface in DATA-LAN mode
    • Configuration and Transport Control via WEB Interface
  • RS-422: 1 xDE-9 female connector, SONY 9-pin serial protocol
  • User Interface:
    • Rotary selector knob
    • Dedicated, backlit transport controls and menu buttons
    • Large 1280 x 720 TFT LCD display with Video Monitor and Menu/Status Overlays
  • Power: Dual,Redundant, 100-240 VAC 50/60Hz (adapter), 12-18Vdc 4-pin XLR (chassis), 5.4Amax, 35W-60W typical-65W Max
  • Size: 8.64" x9.34" x 3.31" (21.94 x 23.72 x 8.41cm)
  • Weight: 5.55 lbs (2.52 kg)
  • Environment:
    • Operating Temperature: 0° to 40°C (32° to 104°F)
    • Operating Relative Humidity: 10-90% non-condensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
    • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
