Concert Club V Series 12" 2-Way 700W Peak (8 Ohms) Loudspeaker


Sale Price: $193.99
List Price: $469.00
You save 59%! (Low Price Guarantee)
In Stock

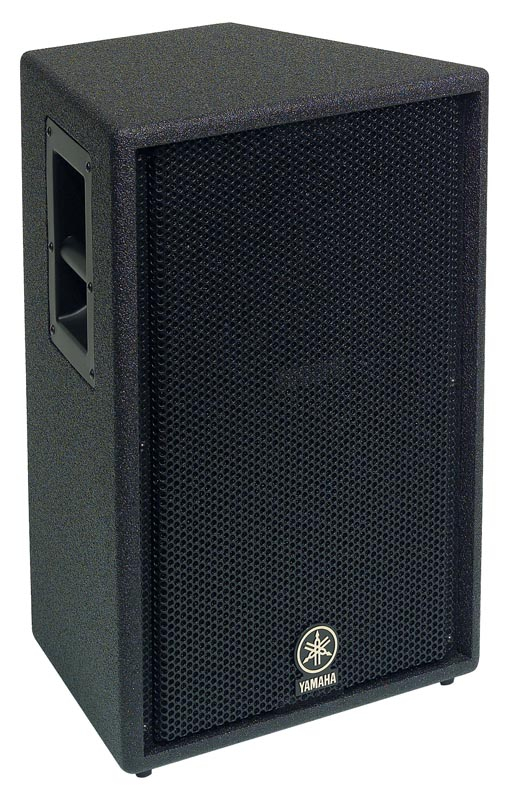

The Yamaha C112V is a Concert Club V Series 12" 2-way 700W peak (8 Ohms) loudspeaker that features a 2" titanium dome compression driver, 90° H x 40° V dispersion pattern, and an integral pole socket for stand mounting.

This item has cosmetic flaws – the bottom left corner is dented and there is a small dent in the grille – but has been tested and is in working condition. Please contact your Sales Pro for more information on this and other products.

An Ideal Match for EMX Series Powered Mixers or P Series Power Amplifiers
The Concert Club V series and Concert Club VC series speakers provide dual phone jacks as well as dual Speakon™ connectors for input and parallel connection. A high-performance PA system can conveniently be created simply by connecting a pair of speakers to an EMX series powered mixer using the phone jack outputs on a box-type model, or the Speakon™ connectors on a console model. When used in conjunction with P series power amplifiers and an MG series mixing console, you have the flexibility to add monitor speakers and a subwoofer to create a versatile live sound system. The YSProcessing (Yamaha Speaker Processing) switch provided on the EMX series powered mixers and P series amplifiers enhances performance with single-woofer models (S112V, S115V, C112V(A), C115V(A), and monitor models) for even greater sonic impact.

Top-Class Parts and Optimized Wood Enclosures
The Concert Club series has achieved worldwide acclaim for its superior sound and durability, becoming a standard for audio quality and reliability. Painstaking selection of parts and components, optimized wood enclosures, and a thorough reevaluation of speaker capacity have given the new Concert Club series a robust sonic presence that takes their performance to a new level. Even as your system changes and expands years down the road, you can expect the Concert Club series to deliver consistently excellent audio quality.

Classic Design Combines Strength and Sophistication
A classic, unpretentious design makes these speakers virtually timeless. The slightly rounded front grille enhances both style and durability. The "C" version Concert Club V series speakers feature a stylish appearance with a front grille that hides the speaker and a spray-finish exterior that can be repainted to blend in with any decor.

Built-In Protection
As a much-requested solution to the problem of tweeter destruction that is a regrettably common occurrence in the equipment and studio rental business, the Concert Club series is provided with a protection circuit that prevents excessive tweeter input due to acoustic feedback or other causes.

1-3/8" Speaker Pole Sockets
Except for the floor-type S215V/C215V models, all front-of-house and monitor models are equipped with a pole socket for use with speaker stands. You can place these speakers on a standard 1-3/8" diameter speaker stand for a variety of applications.

Yamaha C112V Specifications:

  • Speaker Type:  2-way full-range speaker
  • Frequency Response (-10dB):  60 Hz - 16 kHz
  • Nominal Coverage:  90° H x 40° V
  • Components:
    • LF:  12" cone
    • HF:  Horn, 2" voice coil driver
  • Power Rating:
    • Noise:  175W (EIA)
    • Program:  350W
    • Peak:  700W
  • Nominal Impedance:  8 Ohms
  • SPL:
    • Sensitivity (1W; 1m on axis):  97dB SPL
    • Continuous (Calculated):  119dB SPL
    • Peak (Calculated):  125dB SPL
  • I/O Connectors:  2x Phone, 2x speakON
  • Shape:  30° Trapezoidal
  • Finish:  Sprayed finish
  • Handle:  2
  • Pole Socket:  1x 1-3/8" (35 mm)
  • Dimensions:
    • Width:  16-3/8" (416 mm)
    • Height:  24-3/4" (628 mm)
    • Depth:  13" (329 mm)
  • Net Weight:  47 lbs. (21.3 kg)
