Bose Professional 359842-0020 ControlSpace Dante Network Card Fixed-I/O ESP

OUR PART #: 359842-0020 MFR #: 359842-0020

Copied to clipboard

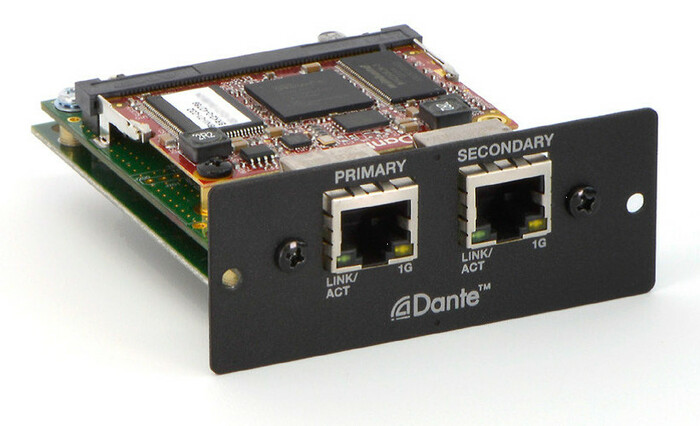

Bose Professional 359842-0020 ControlSpace Dante Network Card Fixed-I/O ESP Image 1
Bose Professional 359842-0020 ControlSpace Dante Network Card Fixed-I/O ESP
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Bose's Dante™ network card for fixed-I/O ControlSpace® engineered sound processors provides 16 input and 16 output channels of low-latency digital audio using the Dante audio networking solution from Audinate®.

The Dante network card is installed into the digital expansion slot of the processor and includes primary and secondary Gigabit Ethernet ports which can be configured for switched (default), redundant, isolated, or filtered for legacy product network connections. Up to 10 devices can be daisy-chained using the switched port configuration

Bose ControlSpace Dante Network Card Specifications:

  • Audio Channels:
    • Channels In/Out: 16x16
    • Flows: Up to 32 simultaneous
  • Interface:
    • Connectors: Two 1 Gb Ethernet RJ-45
    • Port Modes: Switched (default) / Redundant / Legacy Hardware / Isolated (control only)
    • Format: 48 kHz / 24 bit PCM
    • Interface Data: Dante network audio and control data
  • Indicators:
    • Rear Panel:
    • Network speed indicator: yellow (1 Gb), green (100 Mb)
    • Link/Act indicator: solid green (link established), flashing green (data activity)
  • Software Applications: ControlSpace® Designer™ software v4.1 or later
  • Compatible With:
    • ControlSpace ESP-880 Engineered Sound Processor
    • ControlSpace ESP-1240 Engineered Sound Processor
    • ControlSpace ESP-4120 Engineered Sound Processor
    • ControlSpace ESP-1600 Engineered Sound Processor
