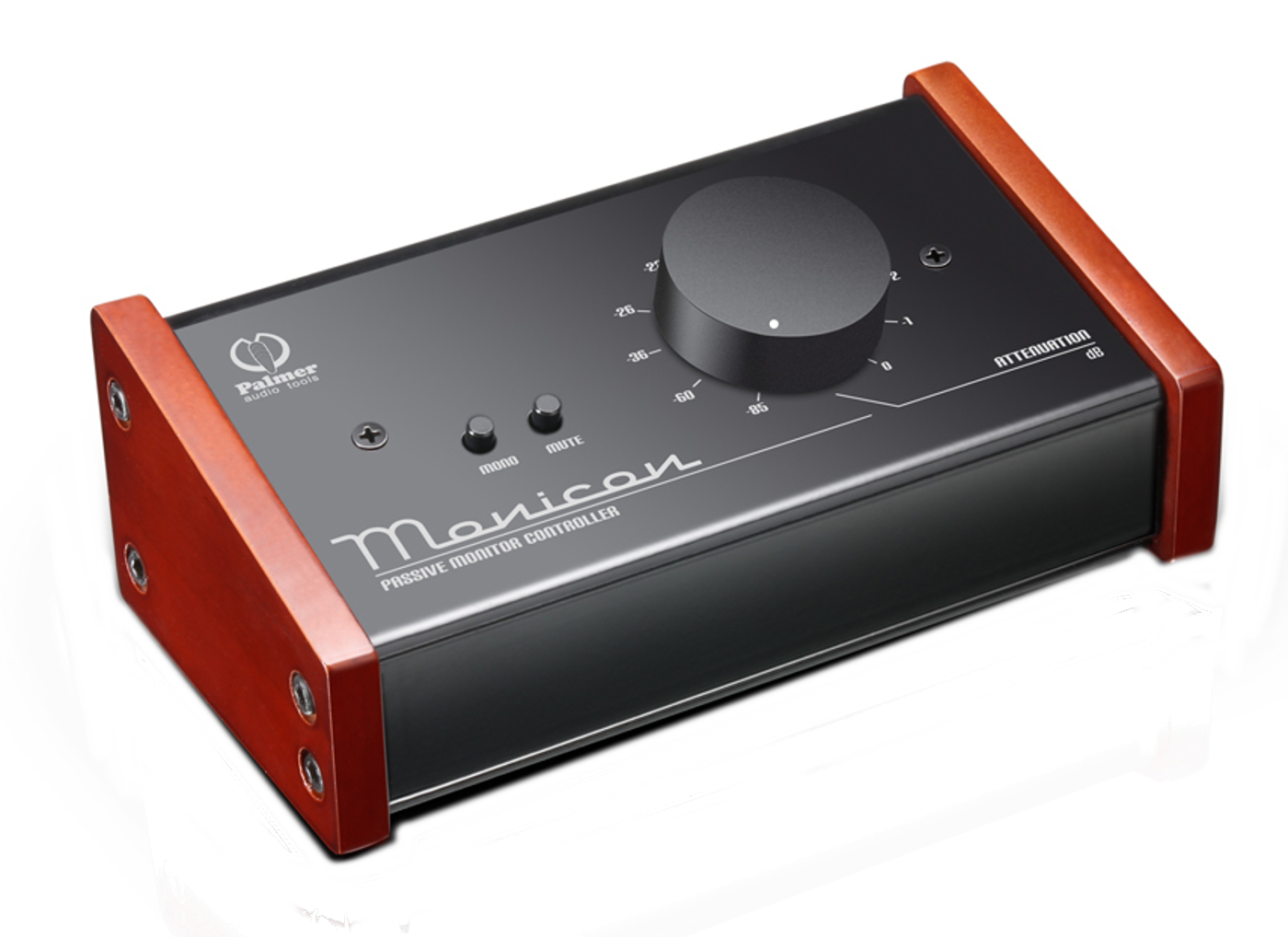

Palmer Monicon
Passive Monitor Controller

OUR PART #  PMONICON

Our Price: $99.95
List Price: $189.95
You save 47%! (Low Price Guarantee)
In Stock

Keep your monitor volume in control at all times with the Palmer Monicon, a passive mini-mixer that is inserted between the stereo output of the notebook, PC or interface and an active monitor system to permit convenient and precise volume control of the monitor from the workstation.

Palmer Monicon Specifications:

  • Product Type: Monitor Controller
  • Type: Passive
  • Channels: 1
  • Inputs: 2
  • Input Connectors: 1/8" (3.5 mm) TRS, XLR
  • Input type: Balanced/Unbalanced (Depending on TS/TRS connection)
  • Max. Input Level: 20 dBu
  • Input Impedance: (Balanced) 10k, (Unbalanced) 5kOhm(s)
  • Outputs: 2
  • Output Connectors: XLR, 1/8" (3.5 mm) TRS
  • Output Type: Balanced/Unbalanced (Depending on TS/TRS Connection)
  • Max. Output Level: 20 dB
  • Output Impedance: 600 Ohm(s)
  • Frequency Response: 10 - 40000 Hz
  • THD: 0.001 %
  • Max. Attenuation: (Attenuator) 85, (Attenuator +Mute) 112 dB
  • Controls: Mute, Mono, Attenuation
  • Cabinet Material: Wood, Sheet Steel
  • Cabinet Surface: Powder Coated
  • Width: 6.46" (164 mm)
  • Height: 2.44" (62 mm)
  • Depth: 3.35" (85 mm)
  • Weight: 1.65 lbs (0.75 kg)

Palmer Monicon
Passive Monitor Controller

OUR PART #  PMONICON

Product Information:

Keep your monitor volume in control at all times with the Palmer Monicon, a passive mini-mixer that is inserted between the stereo output of the notebook, PC or interface and an active monitor system to permit convenient and precise volume control of the monitor from the workstation.

Palmer Monicon Specifications:

  • Product Type: Monitor Controller
  • Type: Passive
  • Channels: 1
  • Inputs: 2
  • Input Connectors: 1/8" (3.5 mm) TRS, XLR
  • Input type: Balanced/Unbalanced (Depending on TS/TRS connection)
  • Max. Input Level: 20 dBu
  • Input Impedance: (Balanced) 10k, (Unbalanced) 5kOhm(s)
  • Outputs: 2
  • Output Connectors: XLR, 1/8" (3.5 mm) TRS
  • Output Type: Balanced/Unbalanced (Depending on TS/TRS Connection)
  • Max. Output Level: 20 dB
  • Output Impedance: 600 Ohm(s)
  • Frequency Response: 10 - 40000 Hz
  • THD: 0.001 %
  • Max. Attenuation: (Attenuator) 85, (Attenuator +Mute) 112 dB
  • Controls: Mute, Mono, Attenuation
  • Cabinet Material: Wood, Sheet Steel
  • Cabinet Surface: Powder Coated
  • Width: 6.46" (164 mm)
  • Height: 2.44" (62 mm)
  • Depth: 3.35" (85 mm)
  • Weight: 1.65 lbs (0.75 kg)
