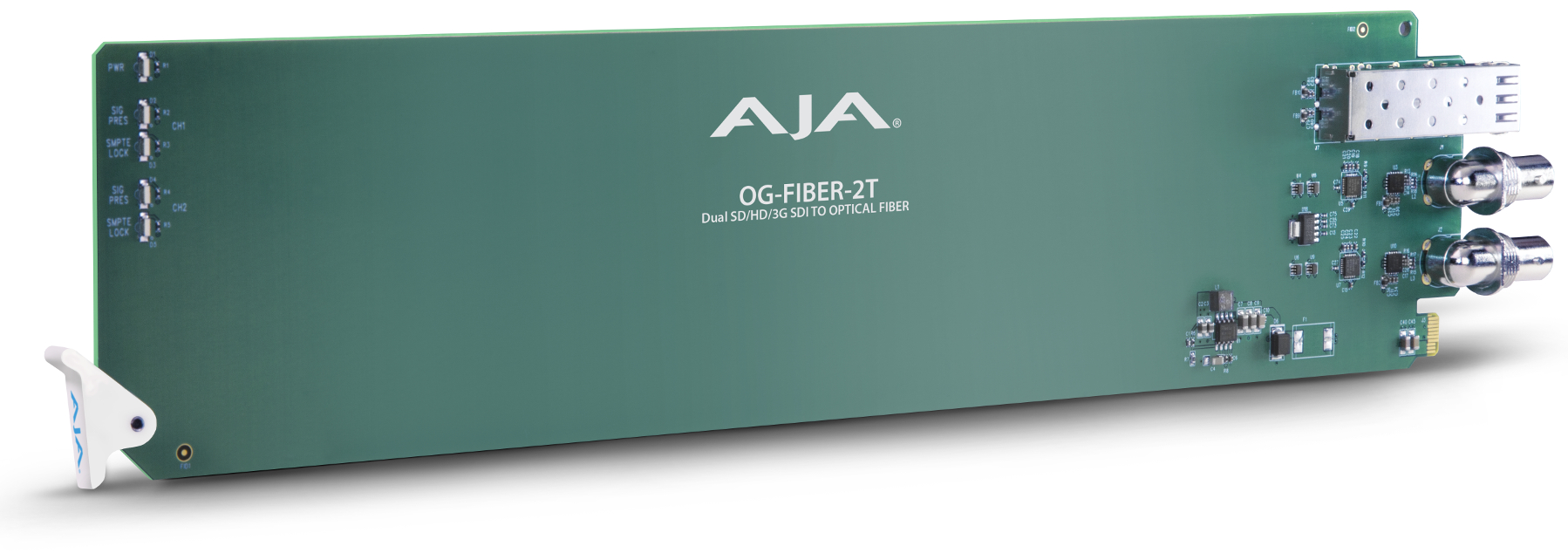

AJA Video Systems Inc OG-FIBER-2T
2-Channel openGear SDI to Fiber Converter

OUR PART #:  OG-FIBER-2T

A state-of-the-art, 2-channel, openGear-compatible 3G-SDI to Fiber converter, AJA's OG-FIBER-2T can extend SDI signals up to 10km over standard single-mode fiber optic cable.
Learn More
Our Price: $645.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc OG-FIBER-2T
Qty:
In Stock

Similar Products

A state-of-the-art, 2-channel, openGear-compatible 3G-SDI to Fiber converter, AJA's OG-FIBER-2T can extend SDI signals up to 10km over standard single-mode fiber optic cable. Two completely independent SDI inputs allow different SDI rates to be carried on each channel.

Connectivity
The fiber inputs, re-clocked with best-in-class input jitter tolerance, support SDI rates of 270Mb, 1.5Gb, and 3Gb. In addition, the fiber connector is attached to the main card, bring added reliability and cost savings.

The AJA's openGear Series - Compatibility
The openGear standard provides assurance that AJA cards will be compatible with other openGear products from openGear certified partners. An ever-expanding product list ensures that the openGear specification is the future of rackframe products.

AJA OG-FIBER-2T Features:

  • Automatic detection and re-clocking of 270Mb, 1.5Gb, and 3Gb SDI data rates
  • Hot-swappable
  • "Input Present" and "Input SMPTE Lock" LED Indicators
  • Compatible with DFR-8321 and OG3 openGear frames

AJA OG-FIBER-2T Specifications:

  • Video Formats: 125Mbps - 3Gbps, format agnostic
  • Video Input Digital: 2 x 3G-SDI BNC, SMPTE-259/292/424
  • Video Output Digital:
    • 2 x Single mode optical fiber, LC connector, SMPTE-297
    • Frequency: 1310nm +/-40nm
    • Typical Output Power: -5dBm
  • Cable Equalization (Belden 1694A coax):
    • 270Mbps, 350m
    • 1.5Gbps, 200m
    • 3Gbps, 120m
  • Reclocking:
    • 270Mbps, 1.483Gbps, 1.485Gbps, 2.966Gbps, 2.970Gbps - Auto Select
      All other rates are passed through and not re-clocked
  • Physical:
    • Size: openGear standard form-factor, front slot and rear card
    • Slots: (2) slots required for each card
    • Power: openGear frame compatible, 2.5 watts max per card
    • Safe Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
    • Safe Storage Temperature Range (power OFF): -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 10-90% non-condensing
    • Operating Altitude: <10,000ft (<3,000m)
