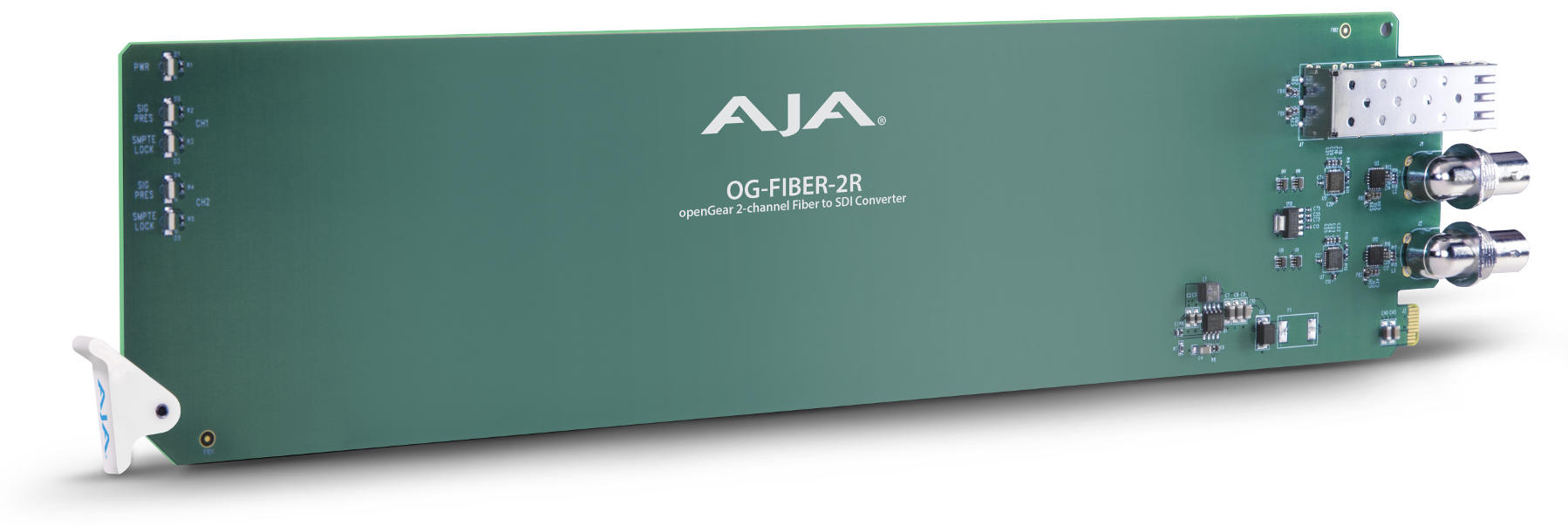

AJA Video Systems Inc OG-FIBER-2R
2-Channel openGear Fiber to 3G-SDI Converter

OUR PART #:  OG-FIBER-2R

A state-of-the-art, openGear-compatible, 2-channel Fiber to 3G-SDI converter...
Learn More
Our Price: $645.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc OG-FIBER-2R
Qty:
In Stock

Similar Products

A state-of-the-art, openGear-compatible, 2-channel Fiber to 3G-SDI converter, the AJA OG-FIBER-2R provides for SDI signals to be extended up to 10km over standard single-mode fiber optic cable. Its (2) fiber inputs are fully independent, allowing different SDI rates to be carried on each channel.

Connectivity
Re-clocked with best-in-class input jitter tolerance, the fiber inputs support SDI rates of 270Mb, 1.5Gb, and 3Gb. For added reliability and cost savings, the fiber connector is attached to the main card.

The AJA openGear Series - Compatibility
The openGear standard gives assurance that AJA cards will be compatible with other openGear products from certified openGear partners. With an ever-expanding product list, openGear is the future of rackframe products.

AJA OG-FIBER-2R Features:

  • Hot-swappable
  • Compatible with DFR-8321 and OG3 openGear frames
  • "Input Present" and "Input SMPTE Lock" LED Indicators
  • Automatic detection and re-clocking of 270Mb, 1.5Gb, and 3Gb SDI data rates

AJA OG-FIBER-2R Specifications:

  • Video Formats: 125Mbps - 3Gbps, format agnostic
  • Video Input Digital:
    • 2 x Single mode optical fiber, LC connector, SMPTE-297
    • Frequency: 1260-1620nm
    • Minimum Input Power:
      • 270Mbps, 1.5Gbps: -20 dBm
      • 3.0Gbps: -18 dBm
  • Video Output Digital: 2 x 3G-SDI BNC, SMPTE-259/292/424
  • Reclocking:
    • 270Mbps, 1.483Gbps, 1.485Gbps, 2.966Gbps, 2.970Gbps - Auto Select
      All other rates are passed through and not re-clocked
  • Physical:
    • Size: openGear standard form-factor, front slot and rear card
    • Slots: (2) slots required for each card
    • Power: openGear frame compatible, 2.5 watts max per card
    • Safe Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
    • Safe Storage Temperature Range (power OFF): -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 10-90% non-condensing
    • Operating Altitude: <10,000ft (<3,000m)
