Product Overview

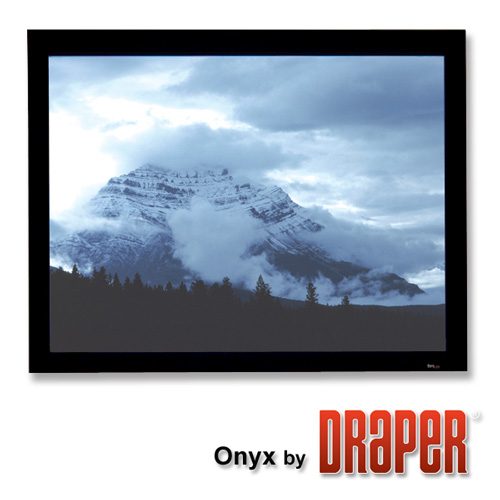

The Onyx permanently tensioned projection screen provides a beautifully framed image, and assembles in about 10 minutes. Front or rear projection. The 4" (102mm) wide beveled, extruded aluminum frame interconnects on site.
Draper Shade and Screen Onyx Fixed Projection Screen Features:
- There are no snaps! Uniform tension is applied to the entire surface area, so the surface is perfectly flat.
- Unique fabric retention system enables you to adjust the surface tension up to 1-1/2" (38mm), both vertically and horizontally in increments of approximately 3/8" (10mm) in just seconds, without tools!
- Frame finish: Black aluminum is standard. Add optional velvety black textile, Vel-Tex, to eliminate reflections.
- Available in a variety of sizes depending on the surface. See the chart below for sizes and fabric options.
- Warranted for one year against defects in materials and workmanship.
- The Onyx is now available with a Curved Frame.
- US Patent No. 6,785,047; 7,113,332; 7,369,310; 7,808,702; Patent Pending
Draper Shade and Screen Onyx Fixed Projection Screen Specifications:
- Surface material: Matt White XT 1000V
- Image format: HDTV 16:9
- Diagonal (Image area): 92" (45"x80")
- Vel-Tex frame: Yes
- Unit of measure: Imperial (USA)
- Part number: 253287
- Surface material: Matt White XT1000V
- Image Format: HDTV
- Diagonal size: 92"
- Image/Viewable area: 45" x 80"
- Overall size: 53" x 88"
- Product weight: 34 pounds
- Shipping weight: 42 pounds
